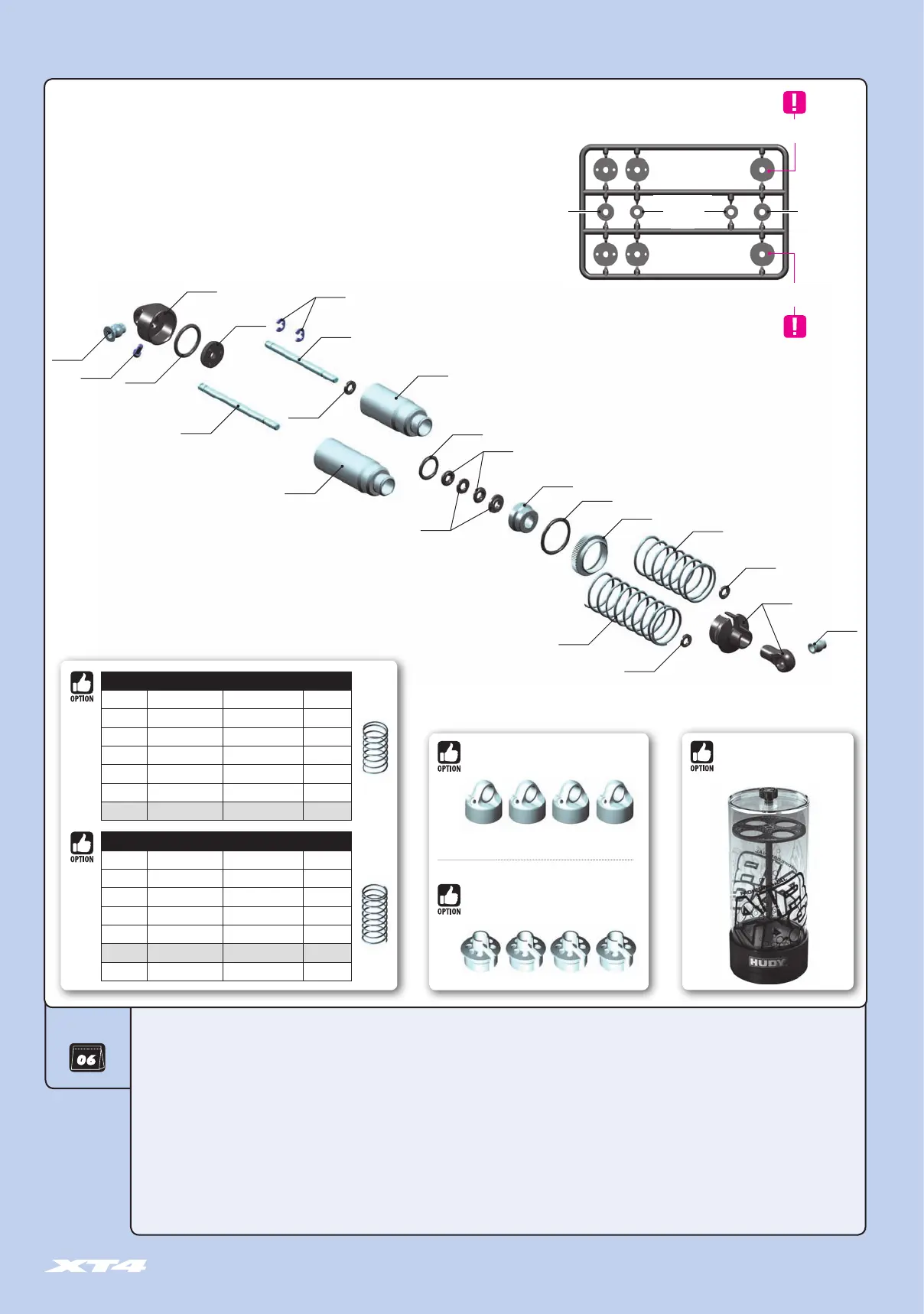

7. SHOCK ABSORBERS
306219 COMPOSITE SET OF SERVO SHIMS (4)
352460 PIVOT BALL 5.8 - V3 (10)
363240 BALL UNIVERSAL 5.8MM WITH BACKSTOP (2)
368010 COMPOSITE SHOCK PARTS
368031 SHOCK PISTONS - COMPLETE SET - DERLIN
368040 ALU SHOCK ADJUSTABLE NUT (2)
368140 ALU LOWER SHOCK BODY CAP (2)
368186 FRONT SPRING-SET - 4 DOTS (2)
368200 REAR SHOCK ABSORBERS COMPLETE SET (2)
368220 ALU SHOCK BODY - HARD COATED (2)
368221 XT2 ALU REAR SHOCK BODY - HARD COATED (2)
368260 HARDENED SHOCK SHAFT (2)
368261 XT2 REAR HARDENED SHOCK SHAFT (2)
368286 REAR SPRING-SET LINEAR - 3 DOTS (2)
902205 HEX SCREW SH M2x5 (10)
965023 E-CLIP 2.3 (10)
970080 O-RING 8x1 (10)
970120 O-RING 12 x 1.0 (10)
970140 O-RING 14 x 1.5 (10)
972031 SILICONE O-RING 3x2.1 (10)
368286
368221
368186
368220
368040
368031
368261
306219
306219
306219
902205
970120
363240
352460
368010
970140
368140
970080
368260
368031
368010
972031
965023
BAG
PISTONS DETAIL
2
holes
(1.6mm)
2 holes
(1.6mm)
2 holes
(1.7mm)
2 holes
(1.7mm)
0 holes (Create custom holes)
(0mm - use required drill pin)
0 holes (Create custom holes)
(0mm - use required drill pin)
These pistons can NOT
be used in shocks without
making the custom holes
by yourselves.
Thin Shim
Thick ShimThick Shim
FRONT SPRINGS
#368174 PROGRESS. 2 STRIPES OPTION
#368175 PROGRESS. 40mm 3 DOTS OPTION
#368182 LINEAR 45mm 1 STRIPE & 3 DOTS OPTION
#368183 LINEAR 1 DOT OPTION
#368184 LINEAR 2 DOTS OPTION
#368185 LINEAR 3 DOTS OPTION
#368186 LINEAR 4 DOTS INCLUDED
REAR SPRINGS
#368273 PROGRESS. 2 STRIPES OPTION
#368275 PROGRESS. 55mm 2 DOTS OPTION
#368283 LINEAR 1 STRIPE & 3 DOTS OPTION
#368284 LINEAR 1 DOT OPTION
#368285 LINEAR 2 DOTS OPTION
#368286 LINEAR 3 DOTS INCLUDED
#368287 LINEAR 4 DOTS OPTION
#368051
ALU SHOCK CAP-NUT WITH VENT HOLE (2)
#368021
ALU SHOCK SPRING RETAINING COLLAR (4)
