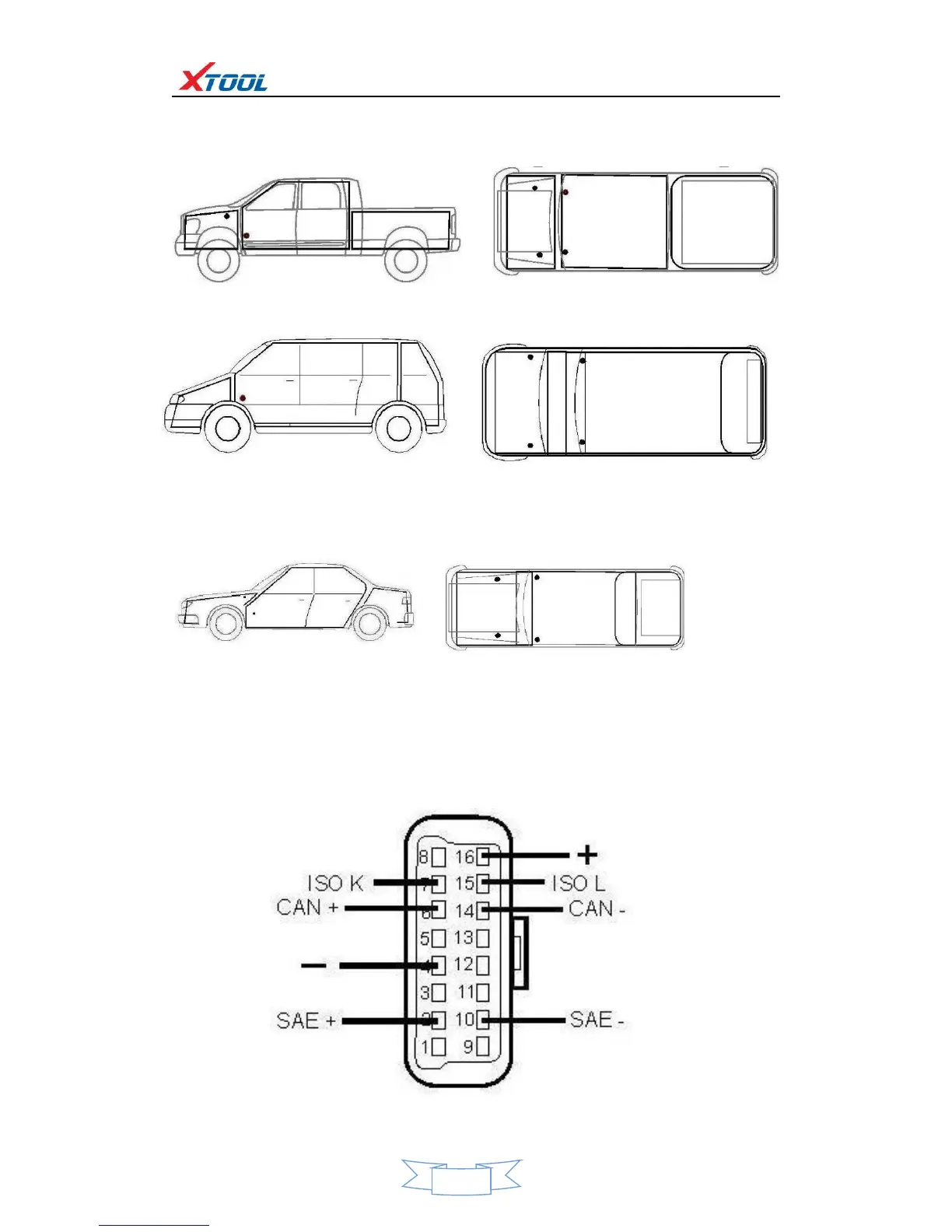

2. Location Diagram of Vehicle Diagnostic Link Connectors
Location diagram of pick-up truck diagnostic link connectors:
Location diagram of utility vehicles diagnostic link connectors:
Link diagram of small car diagnostic link connectors:
NOTE: Each vehicle manufacturer may use additional pins to diagnose a variety of systems. Not every
manufacturer uses the same standard. The function on a certain pin will vary from manufacturer to
manufacturer. Verify with the manufacturer.
3. Diagnostic Link Connectors Terminal Definition and Communication Protocols
3.1. Standard OBDII Diagnostic Link Connector:
