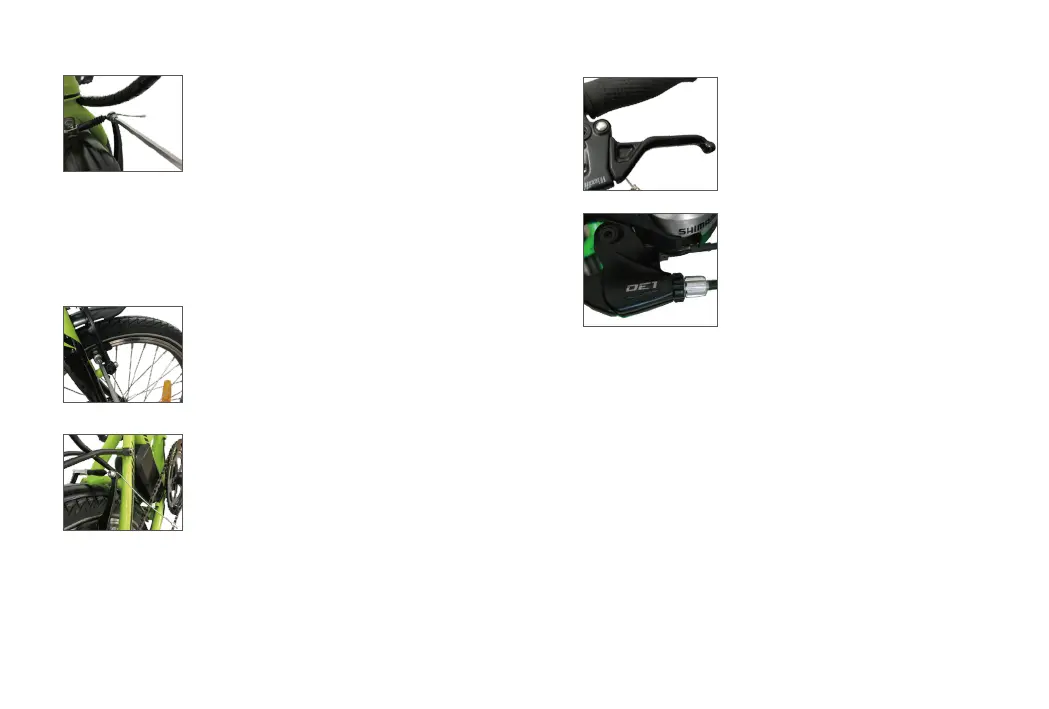

Adjustment of brake
1.Thread the brake line through the
brake handle, and take it out from
the hole of the bolt.
2.The end of the brake line should
be folded into the hole of the bolts.
1.For effect picture, see the picture.
2.This is the bolt for fine adjustment
3.Adjustment is only for V brakes
and disc brakes.
1.Tool：M5 hexagonal screwdriver
2.Please make sure a 3mm distance
between the wheel and the brake
pads, and then adjust (see the
picture below)
3.Please keep the brake in the middle,
and make sure the two brake pads
work properly.
Level up the brakes (in its
standard condition)
A
B
1.Adjust the brake pads, to keep it in line
with the curve of the wheel.
2.Please make sure the brake pads can
have fully touch with the surface of
the steel wheel.
C
1.Enclose the end of the brake line to
prevent the line from spreading apart
which would hurt people.
