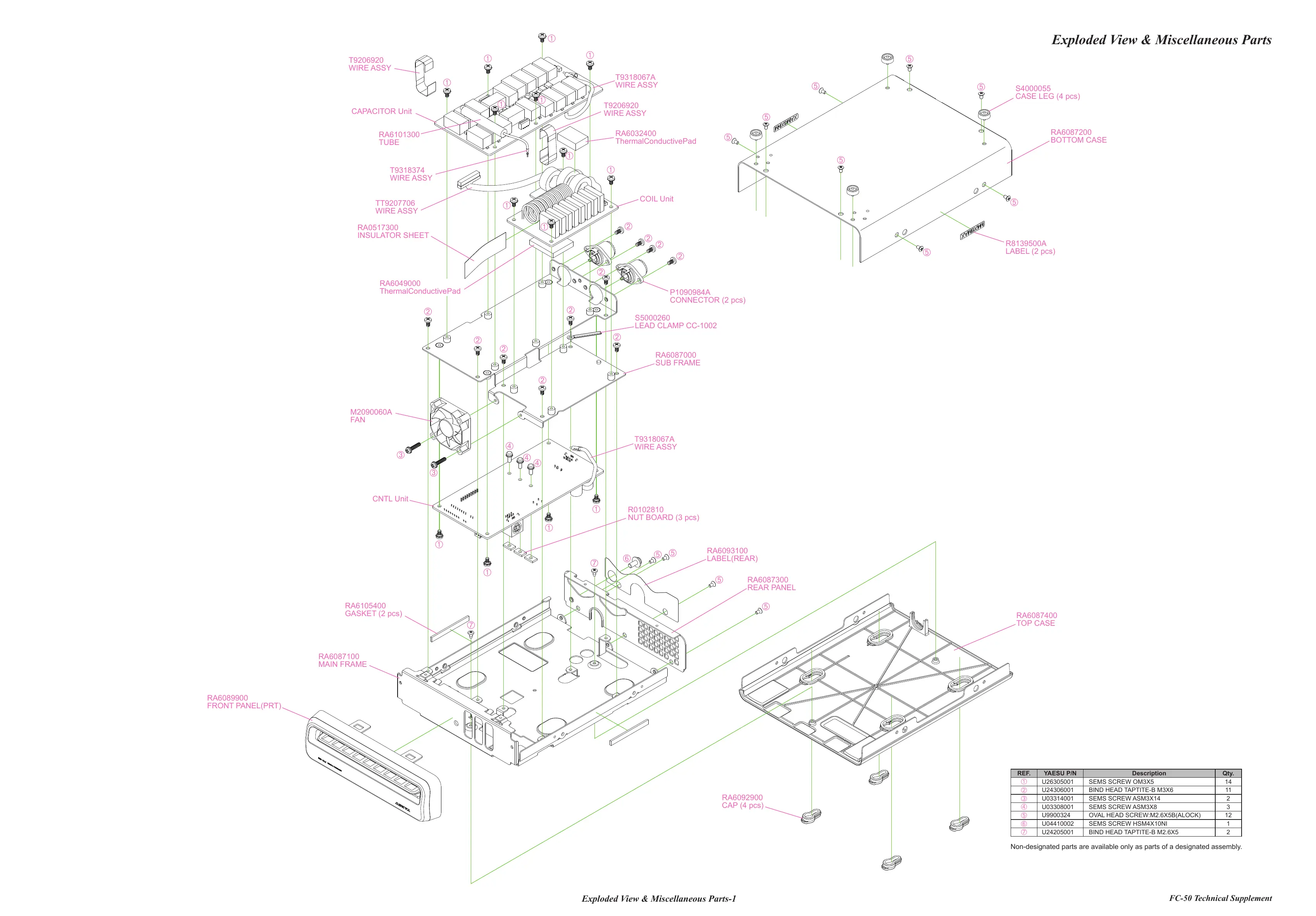

Exploded View & Miscellaneous Parts-1
FC-50 Technical Supplement
Exploded View & Miscellaneous Parts
REF. YAESU P/N Description Qty.
À
U26305001 SEMS SCREW OM3X5 14
Á
U24306001 BIND HEAD TAPTITE-B M3X6 11
Â
U03314001 SEMS SCREW ASM3X14 2
Ã
U03308001 SEMS SCREW ASM3X8 3
Ä
U9900324 OVAL HEAD SCREW:M2.6X5B(ALOCK) 12
Å
U04410002 SEMS SCREW HSM4X10NI 1
Æ
U24205001 BIND HEAD TAPTITE-B M2.6X5 2
Non-designated parts are available only as parts of a designated assembly.
CAPACITOR Unit
RA6093100
LABEL(REAR)
COIL Unit
CNTL Unit
RA6087300
REAR PANEL
RA6087200
BOTTOM CASE
R8139500A
LABEL (2 pcs)
S4000055
CASE LEG (4 pcs)
À
À
À
À
À
À
À
À
À
À
À
À
À
À
Á
Á
Á
Á
Á
Á
Á
Â
Ä
Â
M2090060A
FAN
RA6087000
SUB FRAME
Ã
Ã
Ã
P1090984A
CONNECTOR (2 pcs)
RA6049000
ThermalConductivePad
T9206920
WIRE ASSY
T9206920
WIRE ASSY
Æ
Ä
Ä
Å
RA6087100
MAIN FRAME
Á
Á
Á
Á
Ä
S5000260
LEAD CLAMP CC-1002
RA6089900
FRONT PANEL(PRT)
RA6092900
CAP (4 pcs)
RA6087400
TOP CASE
Æ
RA6032400
ThermalConductivePad
RA6105400
GASKET (2 pcs)
Ä
Ä
Ä
Ä
Ä
Ä
Ä
Ä
RA6101300
TUBE
T9318374
WIRE ASSY
R0102810
NUT BOARD (3 pcs)
RA0517300
INSULATOR SHEET
TT9207706
WIRE ASSY
T9318067A
WIRE ASSY
T9318067A
WIRE ASSY
