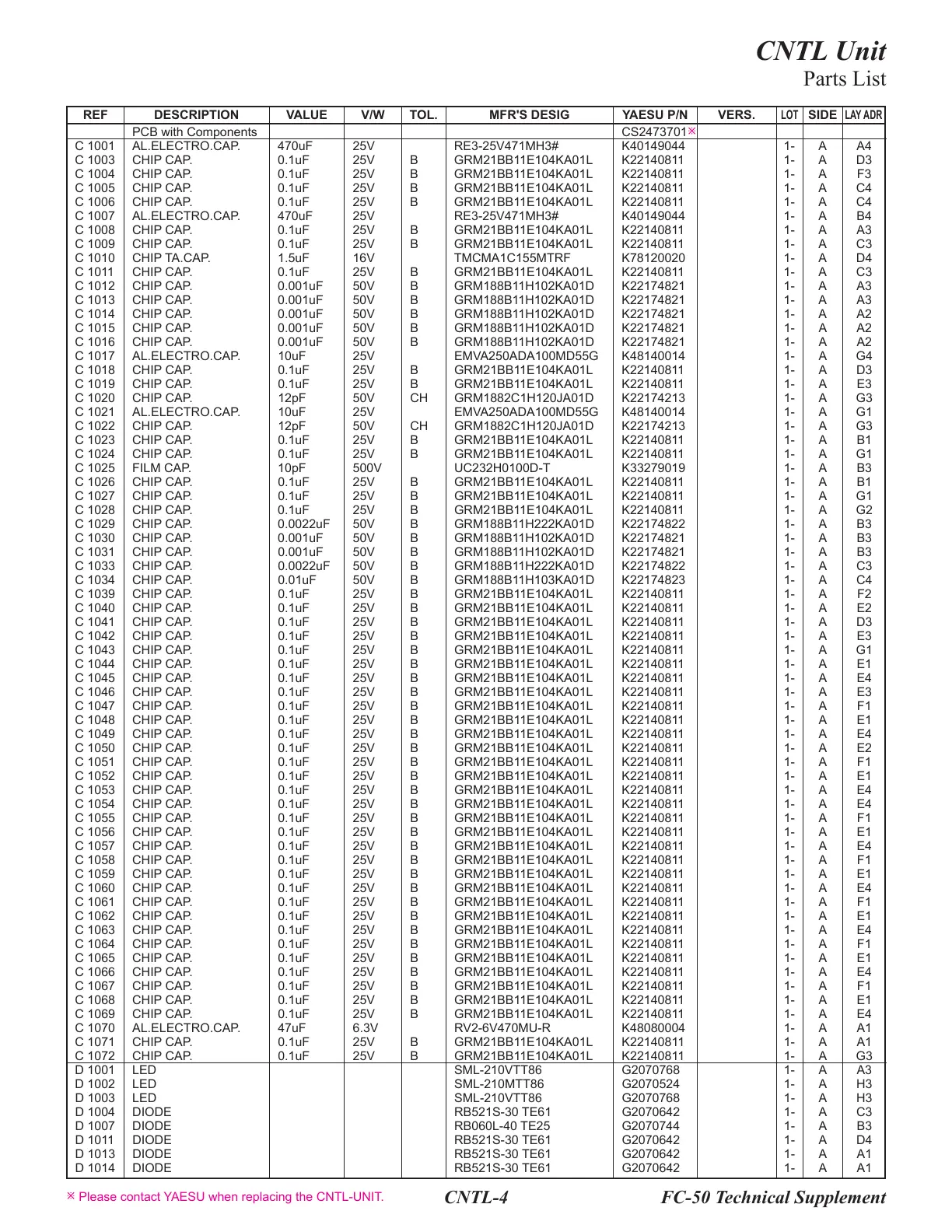

CNTL-4

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG YAESU P/N VERS.

LOT

SIDE

LAY ADR

CNTL Unit

Parts List

FC-50 Technical Supplement

PCB with Components CS2473701

ø

C 1001 AL.ELECTRO.CAP. 470uF 25V RE3-25V471MH3# K40149044 1- A A4

C 1003 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A D3

C 1004 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F3

C 1005 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C4

C 1006 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C4

C 1007 AL.ELECTRO.CAP. 470uF 25V RE3-25V471MH3# K40149044 1- A B4

C 1008 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A A3

C 1009 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C3

C 1010 CHIP TA.CAP. 1.5uF 16V TMCMA1C155MTRF K78120020 1- A D4

C 1011 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A C3

C 1012 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3

C 1013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3

C 1014 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2

C 1015 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2

C 1016 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2

C 1017 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A G4

C 1018 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A D3

C 1019 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E3

C 1020 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A G3

C 1021 AL.ELECTRO.CAP. 10uF 25V EMVA250ADA100MD55G K48140014 1- A G1

C 1022 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A G3

C 1023 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A B1

C 1024 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A G1

C 1025 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1- A B3

C 1026 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A B1

C 1027 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A G1

C 1028 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A G2

C 1029 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A B3

C 1030 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3

C 1031 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3

C 1033 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C3

C 1034 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C4

C 1039 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F2

C 1040 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E2

C 1041 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A D3

C 1042 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E3

C 1043 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A G1

C 1044 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1045 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1046 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E3

C 1047 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1048 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1049 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1050 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E2

C 1051 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1052 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1053 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1054 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1055 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1056 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1057 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1058 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1059 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1060 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1061 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1062 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1063 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1064 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1065 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1066 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1067 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A F1

C 1068 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E1

C 1069 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A E4

C 1070 AL.ELECTRO.CAP. 47uF 6.3V RV2-6V470MU-R K48080004 1- A A1

C 1071 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A A1

C 1072 CHIP CAP. 0.1uF 25V B GRM21BB11E104KA01L K22140811 1- A G3

D 1001 LED SML-210VTT86 G2070768 1- A A3

D 1002 LED SML-210MTT86 G2070524 1- A H3

D 1003 LED SML-210VTT86 G2070768 1- A H3

D 1004 DIODE RB521S-30 TE61 G2070642 1- A C3

D 1007 DIODE RB060L-40 TE25 G2070744 1- A B3

D 1011 DIODE RB521S-30 TE61 G2070642 1- A D4

D 1013 DIODE RB521S-30 TE61 G2070642 1- A A1

D 1014 DIODE RB521S-30 TE61 G2070642 1- A A1

ø

Please contact YAESU when replacing the CNTL-UNIT.
