Installation
Connecting the Supplied YHA-63 Antenna
Your FT-818 is supplied with a three-section antenna, model YHA-63 which is designed for
optimum performance on the 50 MHz, 144 MHz, and 430 MHz. It also works well on the
FM broadcast and other VHF bands. This antenna is intended for connection to the front
panel’s BNC-type antenna connector.
For HF and/or 50 MHz operation, most hikers carry their own dipole or collapsible vertical
antenna, fed by a small-diameter coaxial cable terminated in a type “M” (PL-259) plug, and
these kinds of antennas may be connected to the rear panel’s antenna connector.
The YHA-63 should be connected to the top panel’s “BNC” connector, using the following
guidelines:

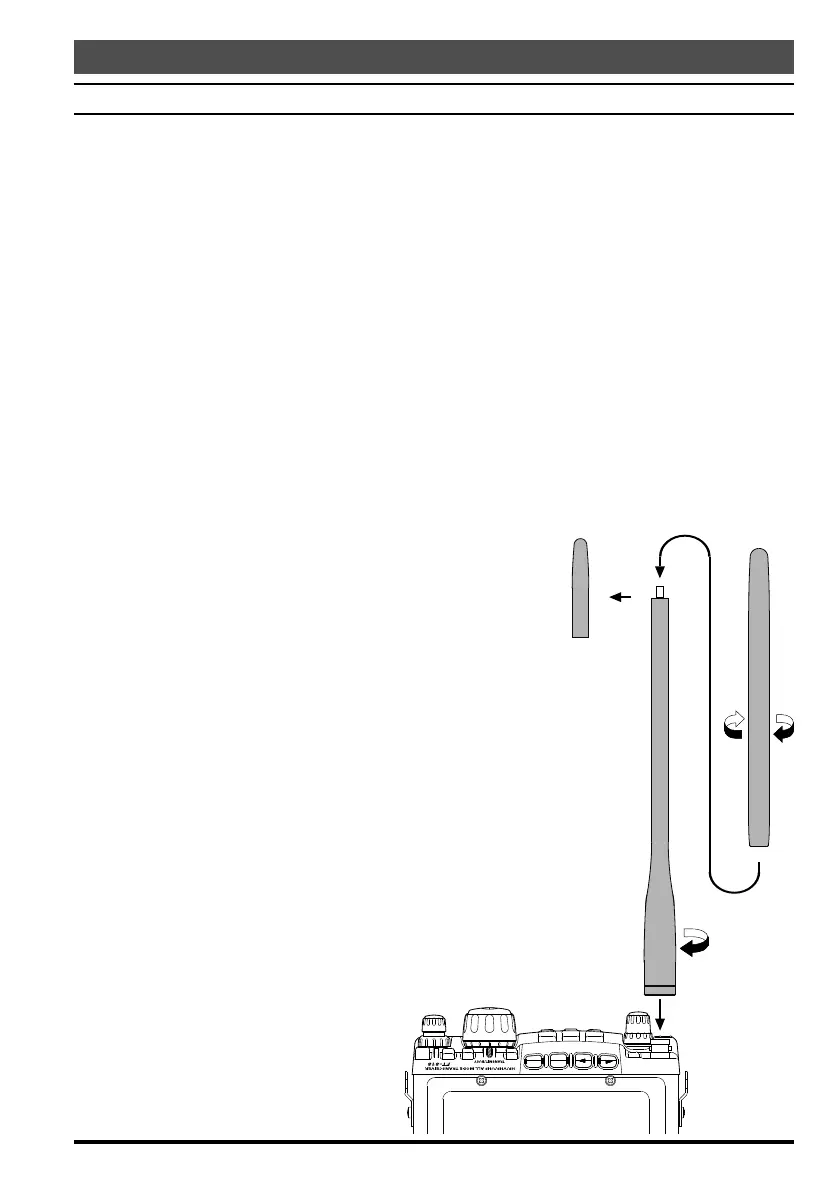

For 144/430 MHz operation (only), connect the shorter cap section to the screw post
on the top of the main antenna shaft, then screw the assembled YHA-63 onto the BNC
connector, twisting it 1/4 turn clockwise to secure the antenna.
For 50 MHz operation, unscrew the short cap section, and replace it with the long
cap section. The long cap section will provide good results on 144/430 MHz, as well,
but those owners not using 50 MHz may prefer the shorter total length of the YHA-63
when using the short cap on 144/430 MHz.
For shortwave listening using a ran-
dom-length wire antenna for recep-
tion only, you may wish to consider
connection of the wire between the
main YHA-63 shaft and the cap,
using a “spade lug” or similar lug
on the end of the wire to provide a
secure connection between the cap
and the rest of the antenna.
Menu #07 (“ANTENNA”) allows you
to dene which connector (“Front” or
“Rear”) is used on a particular band.
See page 54 for details.
