3

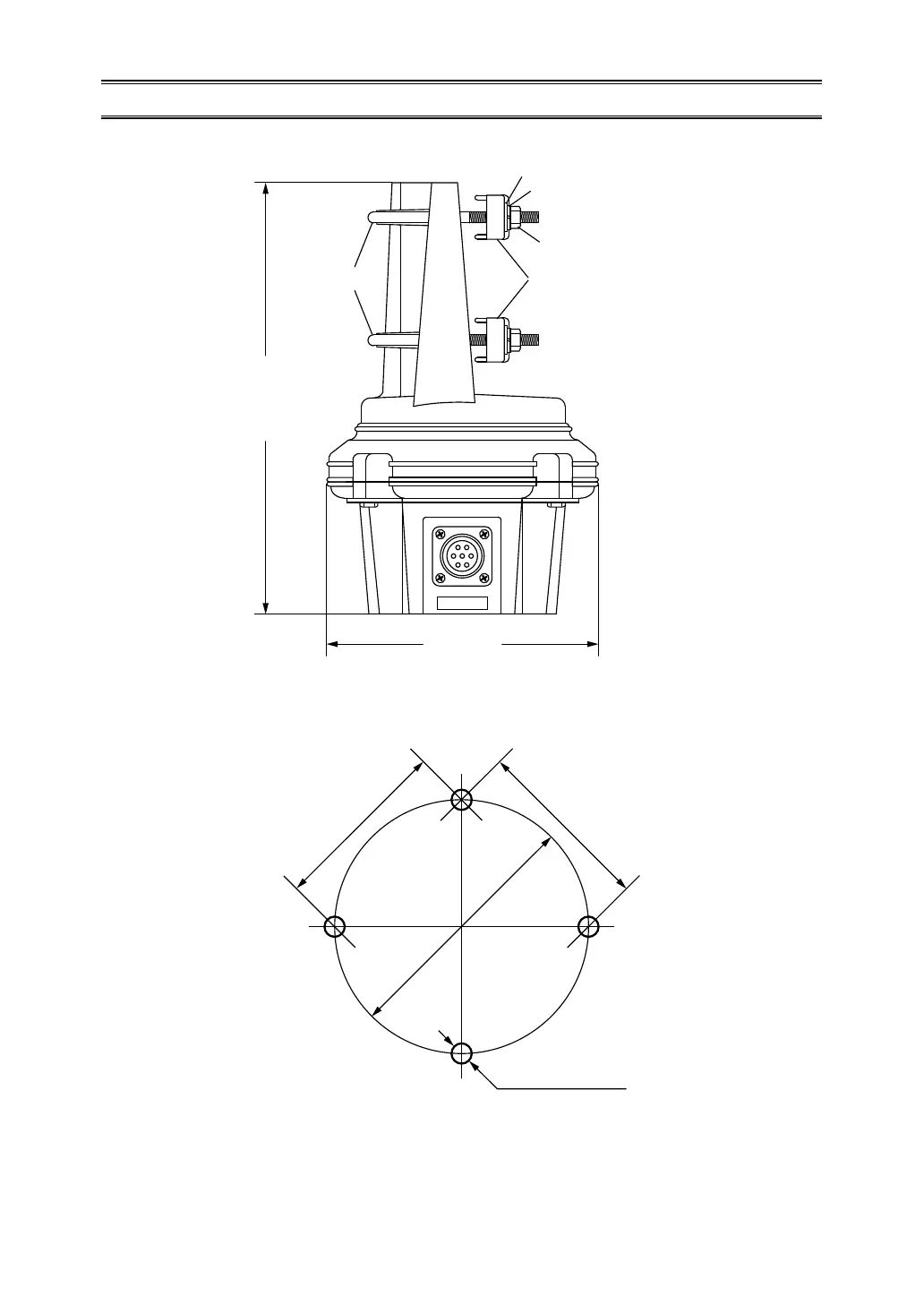

Rotator Unit Components and Dimensions
Rotator Unit
φ186
Clamps
U bolts
Spring washer
Hexagonal nut
Rotator Attachment Plate Dimensions
84 mm
84 mm
φ119
φ9 （4 locations）
The tower plate onto which the rotator unit is mounted must be drilled with four holes of
9 mm diameter, equally spaced on a circle of 119 mm diameter. The center-to-center dis-
tance between any two adjacent mounting holes is 84 mm.
