9
Alignment
C305
PLL Reference Frequency Adjust
TP3
VCO VCV:
DC voltmeter
TP1
PLL Reference Frequency Adjust:
Frequency Counter
L229
FM Discriminator Adjust
TP2
RF Voltege:
DC voltmeter

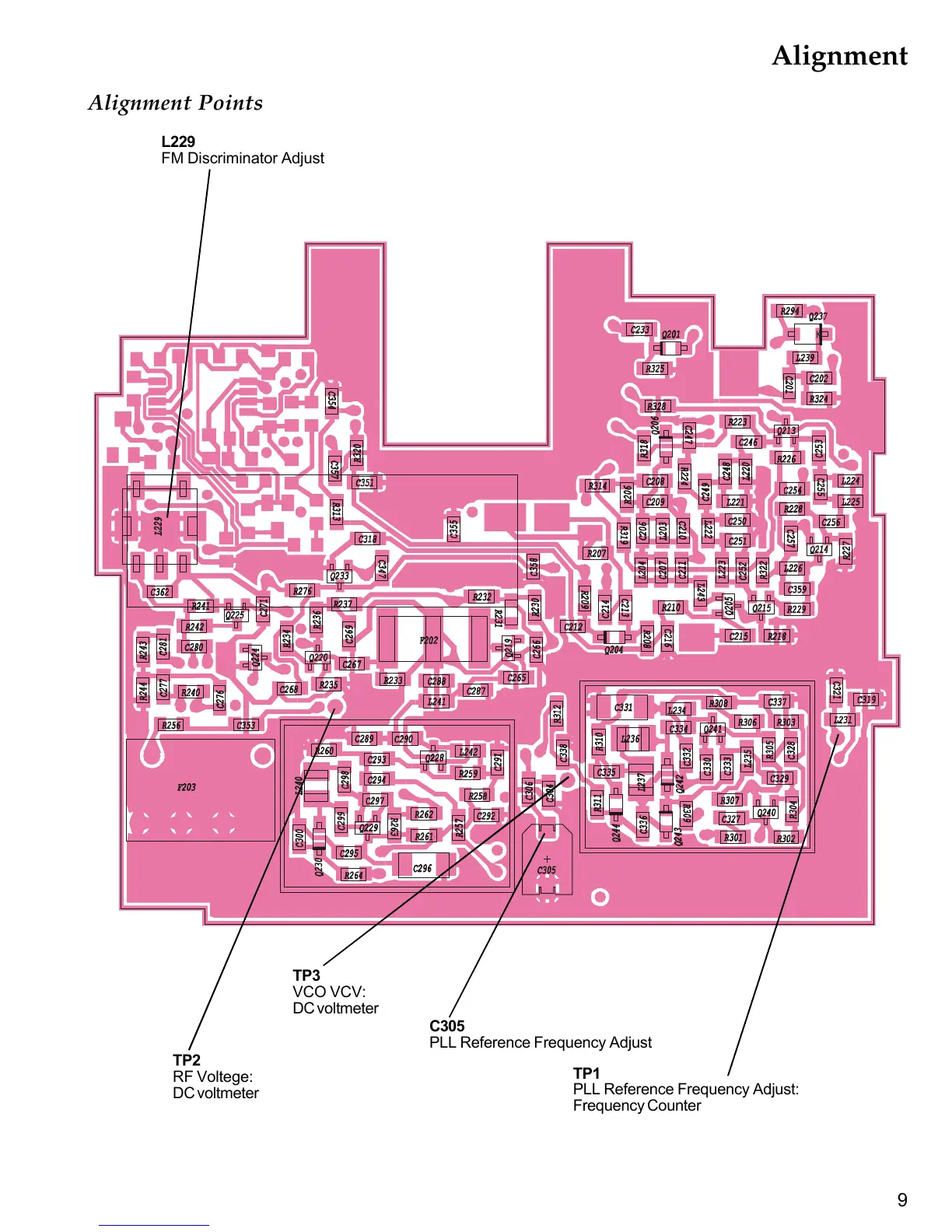

Alignment Points
