Yaesu VR-120D Technical Supplement

3

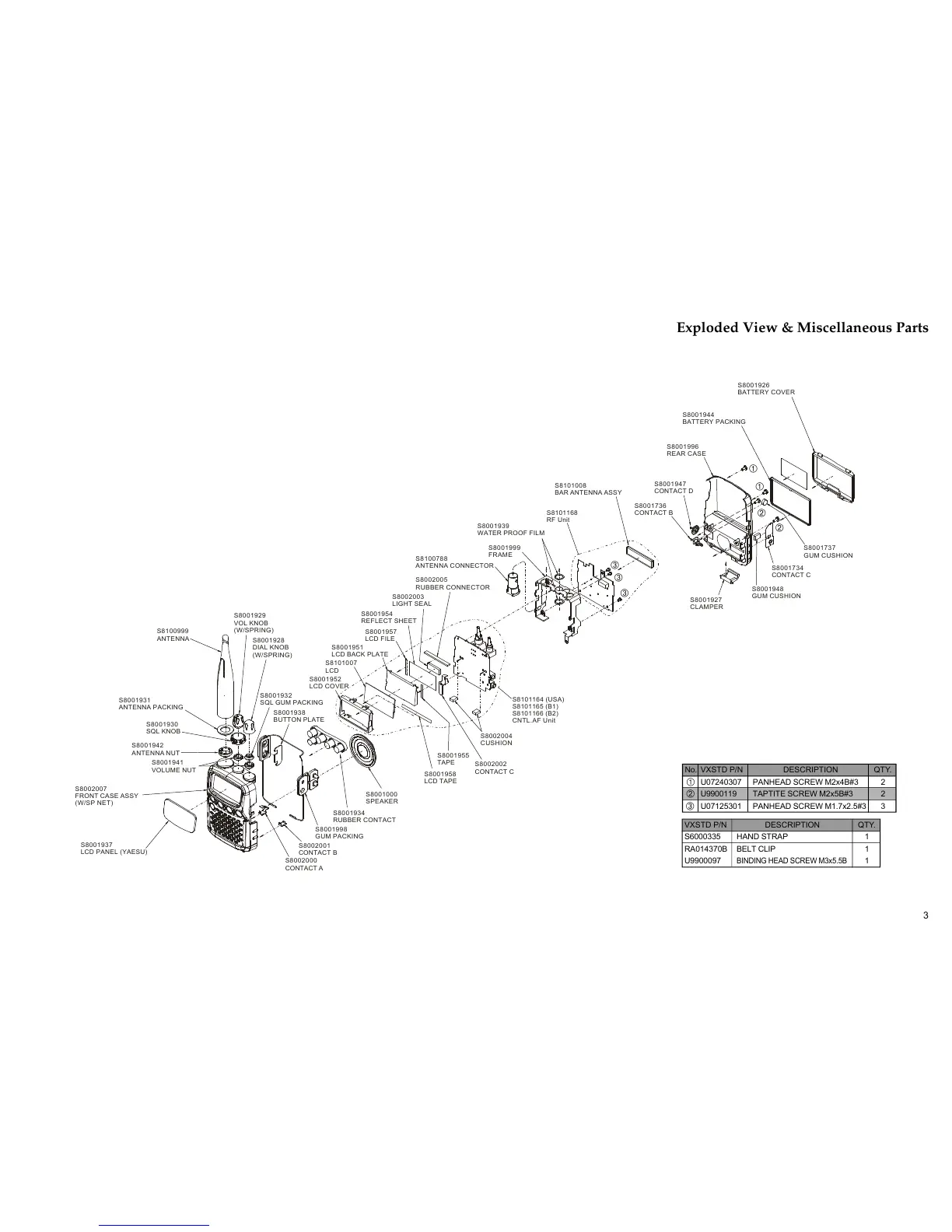

Exploded View & Miscellaneous Parts
No. VXSTD P/N DESCRIPTION QTY.
U07240307 PANHEAD SCREW M2x4B#3 2
U9900119 TAPTITE SCREW M2x5B#3 2
U07125301 PANHEAD SCREW M1.7x2.5#3 3
Â
À
Á
VXSTD P/N DESCRIPTION QTY.
S6000335 HAND STRAP 1
RA014370B BELT CLIP 1
U9900097 BINDING HEAD SCREW M3x5.5B 1
À
À
Á
Á
Â
Â
Â
S8001937
LCD PANEL (YAESU)
S8001931
ANTENNA PACKING
S8100999
ANTENNA
S8002007
FRONT CASE ASSY
(W/SP NET)
S8001941
VOLUME NUT
S8001942
NUTANTENNA
S8001930
SQL KNOB
S8001929
VOL KNOB
(W/SPRING)
S8001932
SQL GUM PACKING
S8001928
DIAL KNOB
(W/SPRING)
S8001938
BUTTON PLATE
S8001998
GUM PACKING
S8001934
RUBBER CONTACT
S8001000
SPEAKER
S8001958
LCD TAPE
S8001955
TAPE
S8002002
CONTACT C
S8002004
CUSHION
S8101164 (USA)
S8101165 (B1)
S8101166 (B2)
CNTL.AF Unit
S8100788
ANTENNA CONNECTOR
S8001939
WATER PROOF FILM
S8001999
FRAME
S8101168
RF Unit
S8101008
BAR ANTENNA ASSY
S8001736
CONTACT B
S8001947
CONTACT D
S8001996
REAR CASE
S8001944
BATTERY PACKING
S8001926
BATTERY COVER
S8001737
GUM CUSHION
S8001734
CONTACT C
S8001948
GUM CUSHION
S8001927
CLAMPER
S8002003
LIGHT SEAL
S8002005
RUBBER CONNECTOR
S8001954
REFLECT SHEET
S8001957
LCD FILE
S8001951
LCD BACK PLATE
S8101007
LCD
S8001952
LCD COVER
S8002001
CONTACT B
S8002000
CONTACT A
