E
2-9
EMU01293

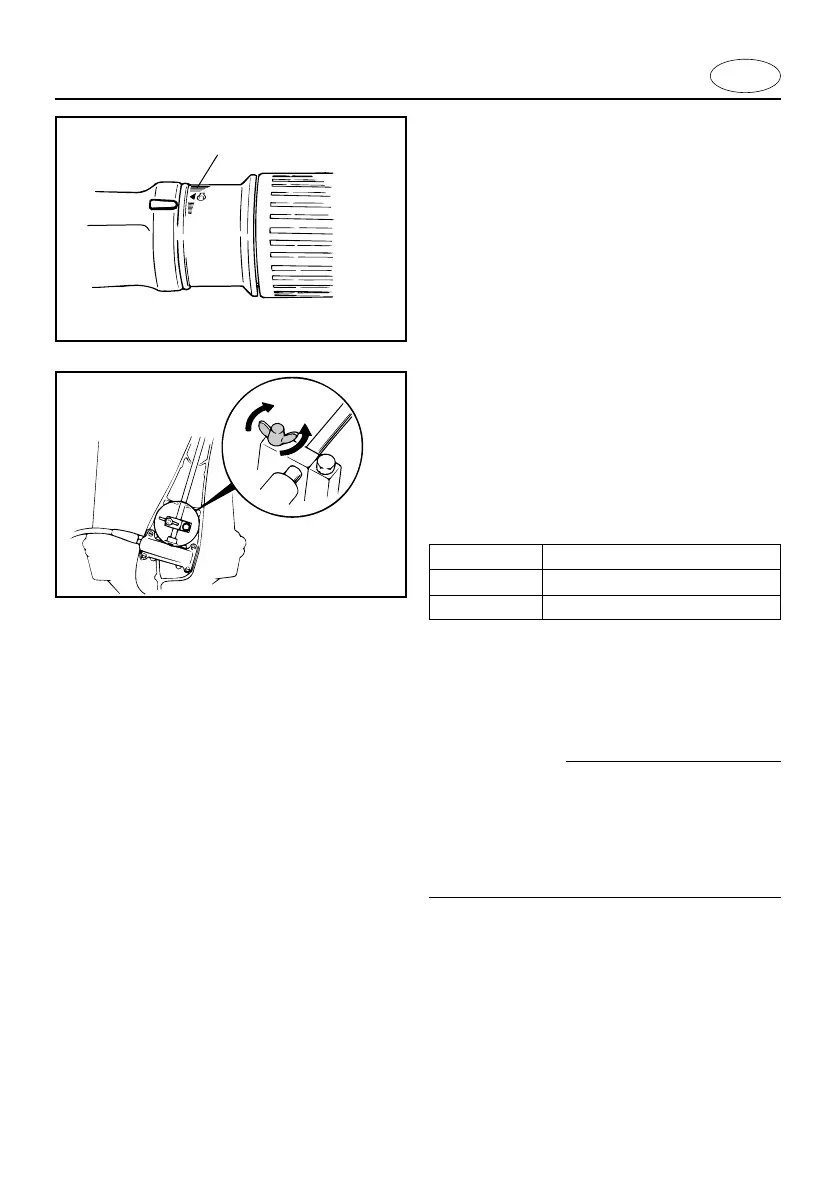

Throttle friction adjusting screw/ knob
A friction device in the tiller handle provide
resistance to movement of the throttle grip.
This is adjustable for operator preference.
An adjusting screw/knob is located within
the tiller handle.
When constant speed is desired, tighten the
adjusting screw/bolt to maintain the desired
throttle setting.
w
Do not over tighten the friction adjusting
screw/ knob.
If there is too much resistance, it may be
difficult to move the throttle grip, which
could result in an accident.
Resistance Knob/Screw
Increase Turn clockwise
Decrease Turn counterclockwise
000559
q
EMU00067
Throttle Indicator
The fuel consumption curve on the throttle
indicator shows the relative amount of fuel
consumed for each throttle position.
Choose the setting that offers the best per-
formance and fuel economy for the desired
operation.
1 Throttle indicator
60H-9-E1-2 3/1/02 9:36 PM Page 10
