OPERATIONS OF CONTROLS
AND OTHER FUNCTIONS
EMC21012

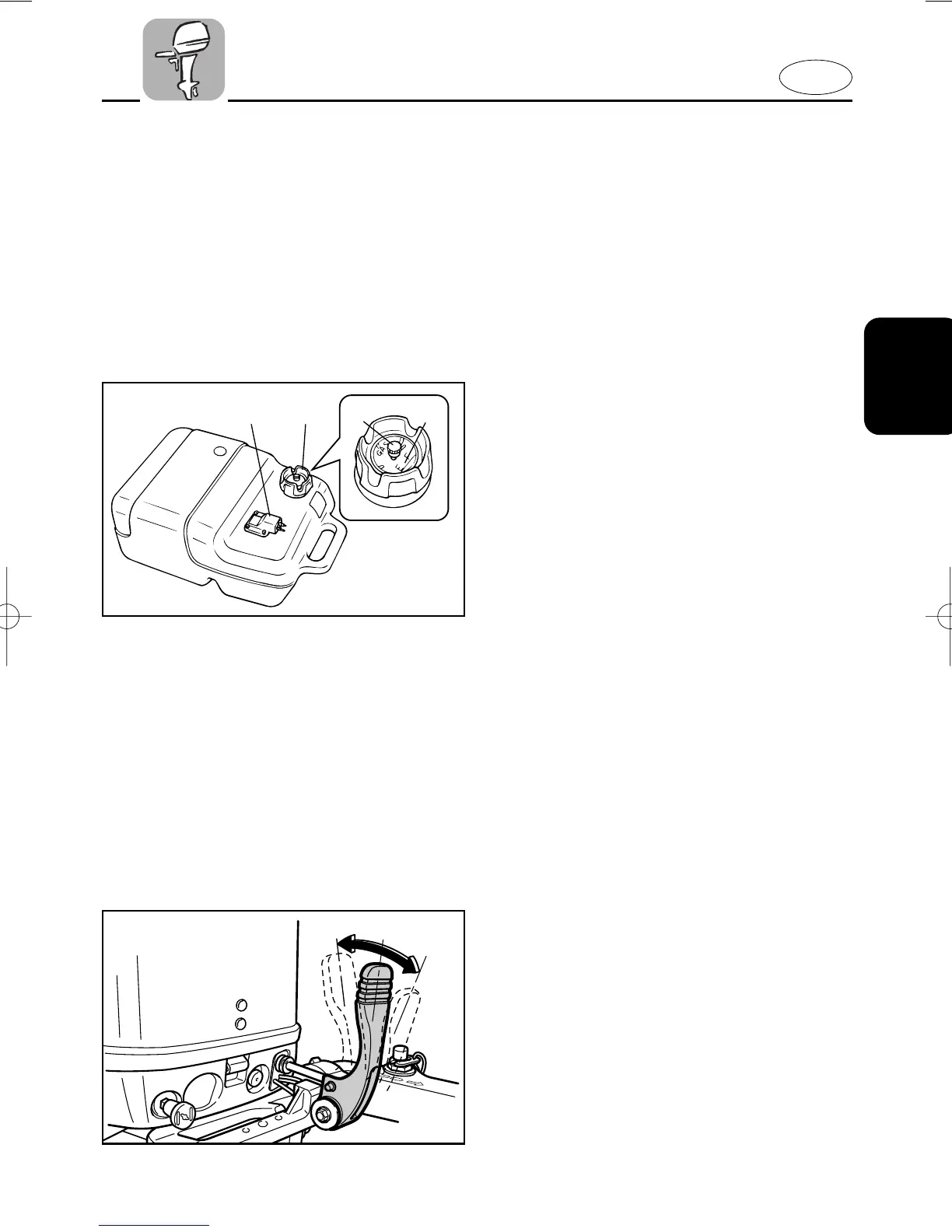

FUEL TANK
If your model was equipped with a
portable fuel tank, its function is as fol-
lows.
1 Fuel hose joint
2 Fuel meter(If equipped)
3 Fuel tank cap
4 Air vent screw(If equipped)
Fuel hose joint
This connector is provided for connecting
or disconnecting fuel hose.
Fuel meter
This meter is on the fuel tank cap. It
shows current fuel quantity in the fuel
tank approximately.
Fuel tank cap
This cap is for filling fuel. To remove it,
turn it counterclockwise.
Air Vent screw
This screw is on the fuel tank cap. To
loosen it, turn it counterclockwise.
EMC25010
GEAR SHIFT LEVER
(for Tiller control model):
Turning the gear-shift lever towards you
engages the clutch with the forward gear
so that the boat moves ahead. Turning
the lever away from you engages the
reverse gear so that the boat moves
astern.
1 Neutral
2 Forward
3 Reverse
