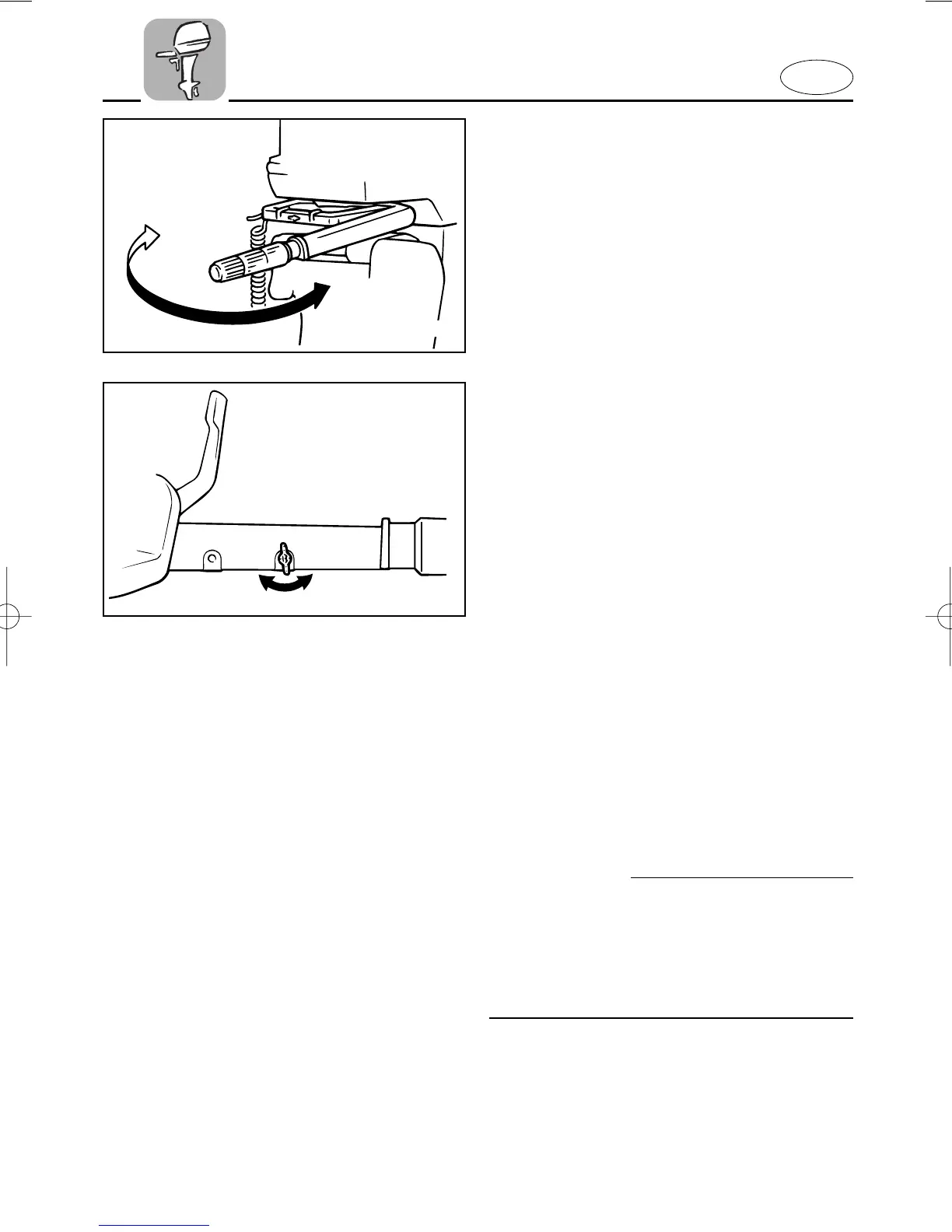

TILLER HANDLE
(for Tiller control model)
Moving the tiller handle sideways to
adjust the steering direction.
EMC64010
Throttle Friction Adjustment
(for Tiller control model)
A friction device in the tiller handle pro-
vides resistance to movement of the
throttle grip. This is adjustable for opera-
tor preference. An adjusting screw/bolt is
located within the tiller handle.
To increase the resistance:
Turn the adjusting screw/bolt clockwise.
To decrease the resistance:
Turn the adjusting screw/bolt counter-
clockwise.
When constant speed is desired, tighten
the adjusting screw/bolt to maintain the
desired throttle setting.
w
Do not overtighten the friction adjusting
screw/bolt. If there is too much resis-
tance, it may be difficult to move the
throttle grip, which could result in an
accident.
