– 21 –

CHAS

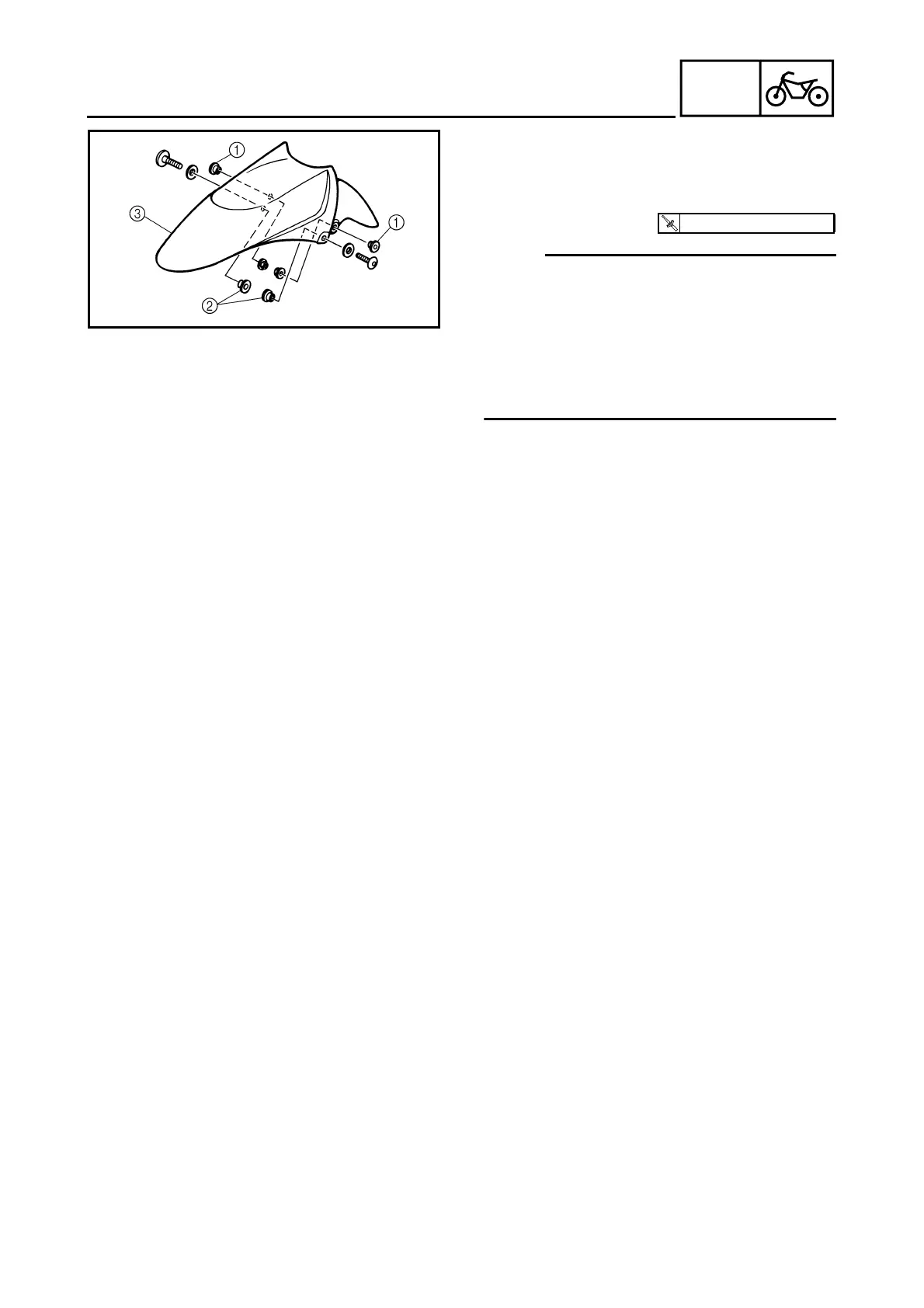

3. Install:

• collar 1

• collar 2

• front fender 3

• front fender bolts

NOTE:

• Install the collar 1 from the outside of the

front fender.

• Install the collar 2 from the inside of the

front fender.

• When installing the front fender, make sure

that there is no dirt between the front fender

and front fork.

6 Nm (0.6 m · kg)

4. Adjust:

• spring preload

• rebound damping

• compression damping

Refer to “ADJUSTING THE FRONT FORK

LEGS” in chapter 3. (Manual No.: 5JW1-AE1)

FRONT FORK
