– 24 –
ENG
CAMSHAFTS
ENGINE
CAMSHAFTS
EAS00196

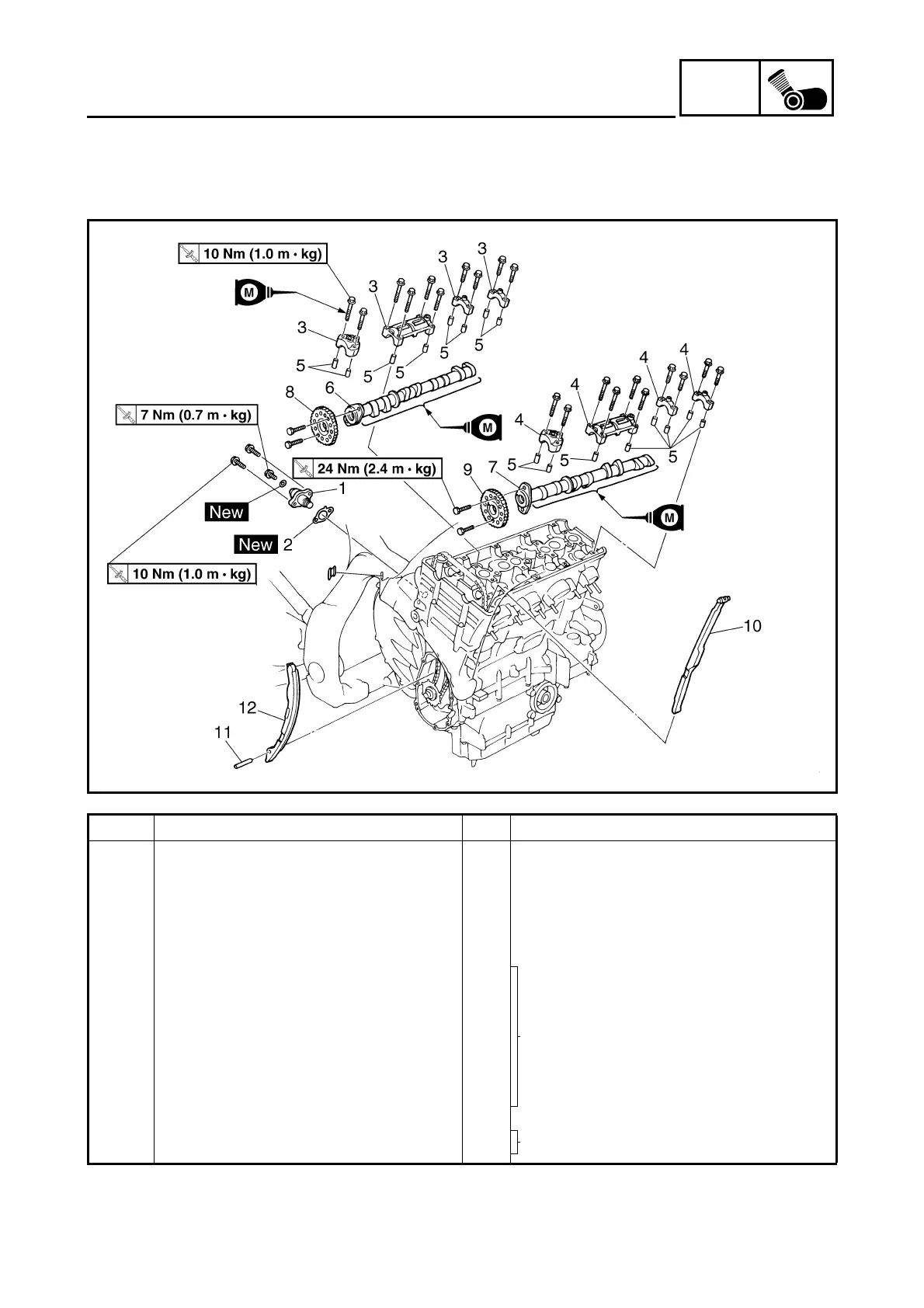

CAMSHAFTS
Order Job/Part Q’ty Remarks
Removing the camshafts
Remove the parts in the order listed.
Throttle bodies Refer to “FUEL INJECTION SYSTEM” in
chapter 7. (Manual No.: 5JW1-AE1)
Pickup coil rotor cover Refer to “PICKUP COIL ROTOR”.
(Manual No.: 5JW1-AE1)
1 Timing chain tensioner 1
Refer to “REMOVING/INSTALLING THE
CAMSHAFTS”. (Manual No.: 5JW1-AE1)
2 Timing chain tensioner gasket 1
3 Intake camshaft cap 4
4 Exhaust camshaft cap 4
5 Dowel pin 16
6 Intake camshaft 1
7 Exhaust camshaft 1
8 Intake camshaft sprocket 1
Refer to “INSTALLING THE CAM-
SHAFTS”. (Manual No.: 5JW1-AE1)
9 Exhaust camshaft sprocket 1

Yamaha 2002 FJR1300 Specifications

General

Bore x Stroke	79.0mm x 66.2mm
Compression Ratio	10.8:1
Fuel System	Fuel injection
Transmission	5-speed
Final Drive	Shaft
Front Suspension	Telescopic fork
Front Brakes	Dual 298mm discs
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Seat Height	805 mm (31.7 in)
Fuel Capacity	25 L (6.6 US gal)
Engine Type	1298cc, liquid-cooled, DOHC, inline 4-cylinder
Ignition	Digital
Rear Suspension	Single shock
Rear Brakes	282mm disc
