Yamaha 2004 XJR1300 User Manual

–5–
21 Rear brake light switch coupler
22 Neutral switch lead
23 Pickup coil lead
24 Sidestand switch lead
25 Throttle position sensor
26 Fuel tank fitting
27 Guide wire
28 Fuel tank drain hose
29 Fuel tank breather hose
11 Seat rail
12 Thermo switch
13 Standing handle
14 Thermo switch coupler
15 Rear brake fluid reservoir tank
16 Speed sensor lead
17 Starter motor lead
18 Battery negative lead
19 Carburetor heater coupler
20 A.C.magneto
1 Throttle cables
2 Ignition coil lead (#1, #4)
3 Horn lead
4 Spark plug lead (#3)
5 Spark plug lead (#4)
6 Ground lead
7 Rear brake switch
8 Intake air filter screw
9 Air filter
10 Relay assembly
SPEC

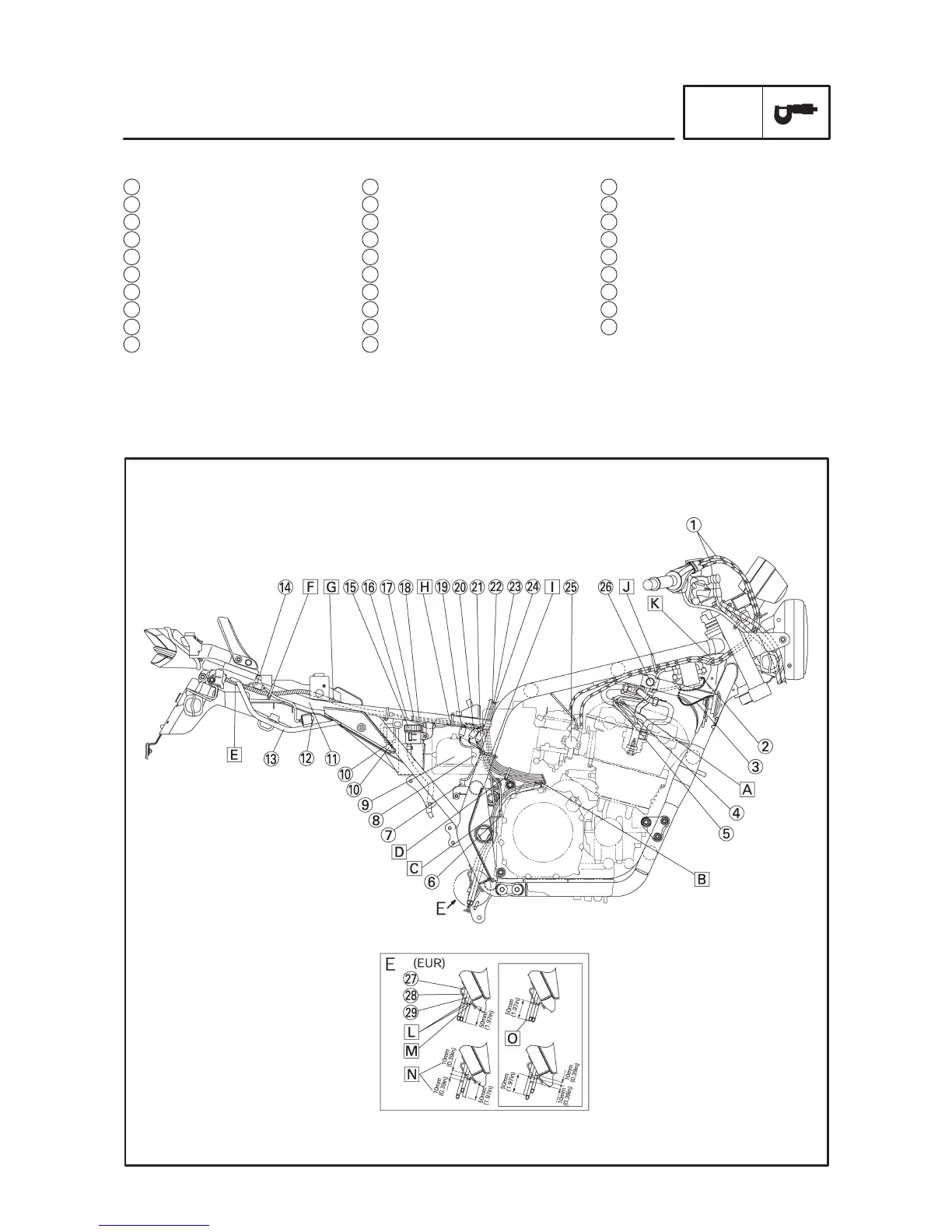

CABLE ROUTING
CABLE ROUTING

Yamaha 2004 XJR1300 Specifications

General

Displacement	1251cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Seat Height	795 mm
Fuel Capacity	21 liters
Curb Weight	251 kg
Width	765 mm
Ground Clearance	145 mm
Engine Type	Air-cooled, 4-stroke, DOHC, 4-cylinder
Ignition	Digital
Height	1115 mm
Rear Suspension	Swingarm (Link suspension)
