Yamaha 2004 XJR1300 User Manual

–13–
L Connect the fuel sender coupler,
neutral switch coupler, pickup
coupler, and side stand switch
coupler wires above the air
cleaner.
M Carburetors #1 to #4 in a left-to-
right way.
N Thread the wire harness inser-
tion clamp onto the T-stud of the
frame.
O Pass the starter cable through
the front of the throttle cable.
K Clamp the wire harness to the
seat rail, on the wire harness
positioning tape and at the im-
mediate rear of the side cover
mounting bracket on the seat
rail.
The front end of the clamp must
face downward and be posi-
tioned inside the back stay.
H Store the wire harness, the tail-
light lead wire, and the rear left
and right flasher lead wires, into
the space between the taillight
bracket and the rib of the rear
fender.
I The seat lock wire must not ex-
tend to the outside of the brack-
et.
J Pass the lead wire leading to the
fuse box under the wire harness.
SPEC

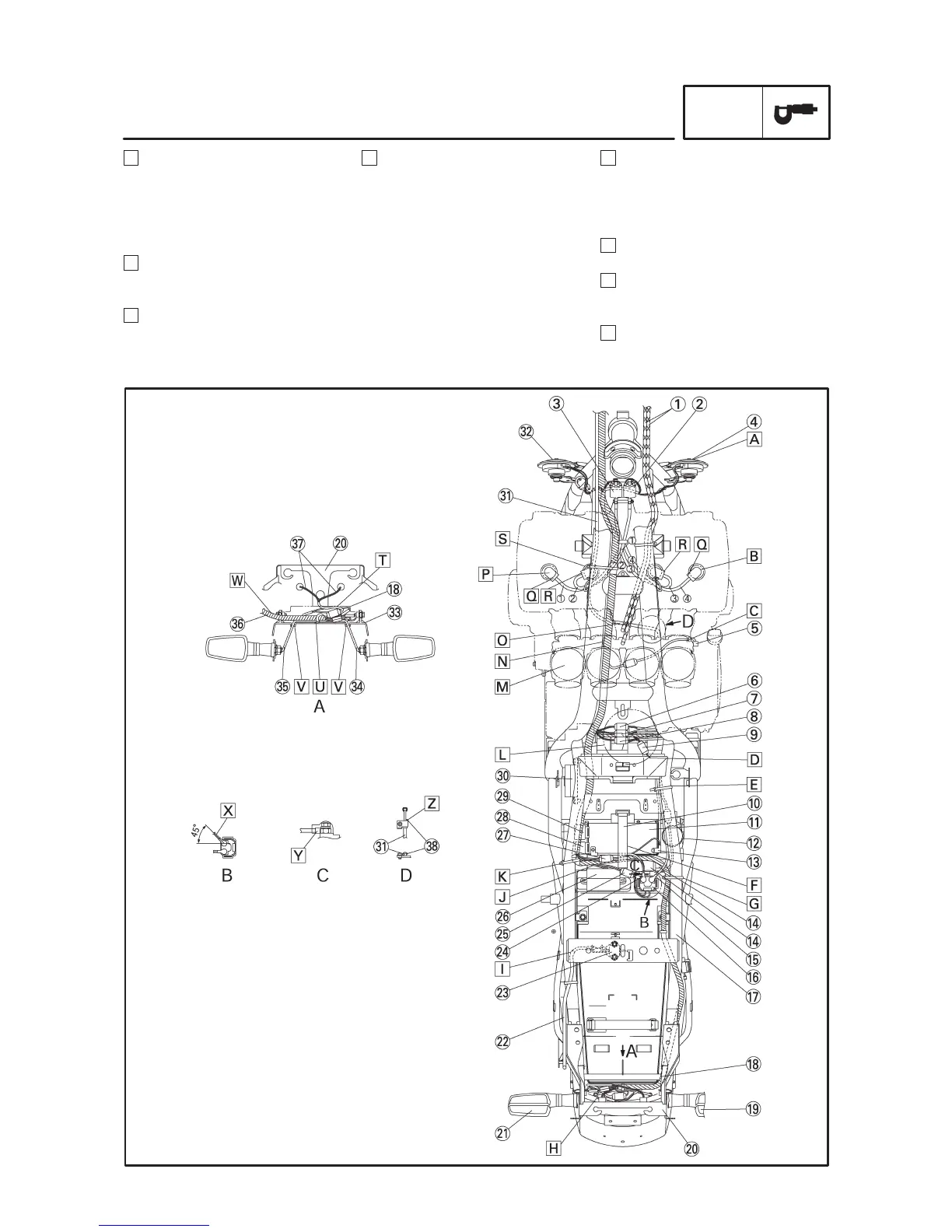

CABLE ROUTING

Yamaha 2004 XJR1300 Specifications

General

Displacement	1251cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Carburetor
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brakes	Dual disc
Rear Brakes	Single disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Seat Height	795 mm
Fuel Capacity	21 liters
Curb Weight	251 kg
Width	765 mm
Ground Clearance	145 mm
Engine Type	Air-cooled, 4-stroke, DOHC, 4-cylinder
Ignition	Digital
Height	1115 mm
Rear Suspension	Swingarm (Link suspension)
