PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
CAUTION:
ECA10630
● Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
● To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23525
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located behind panel B. (See
page 6-6.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.

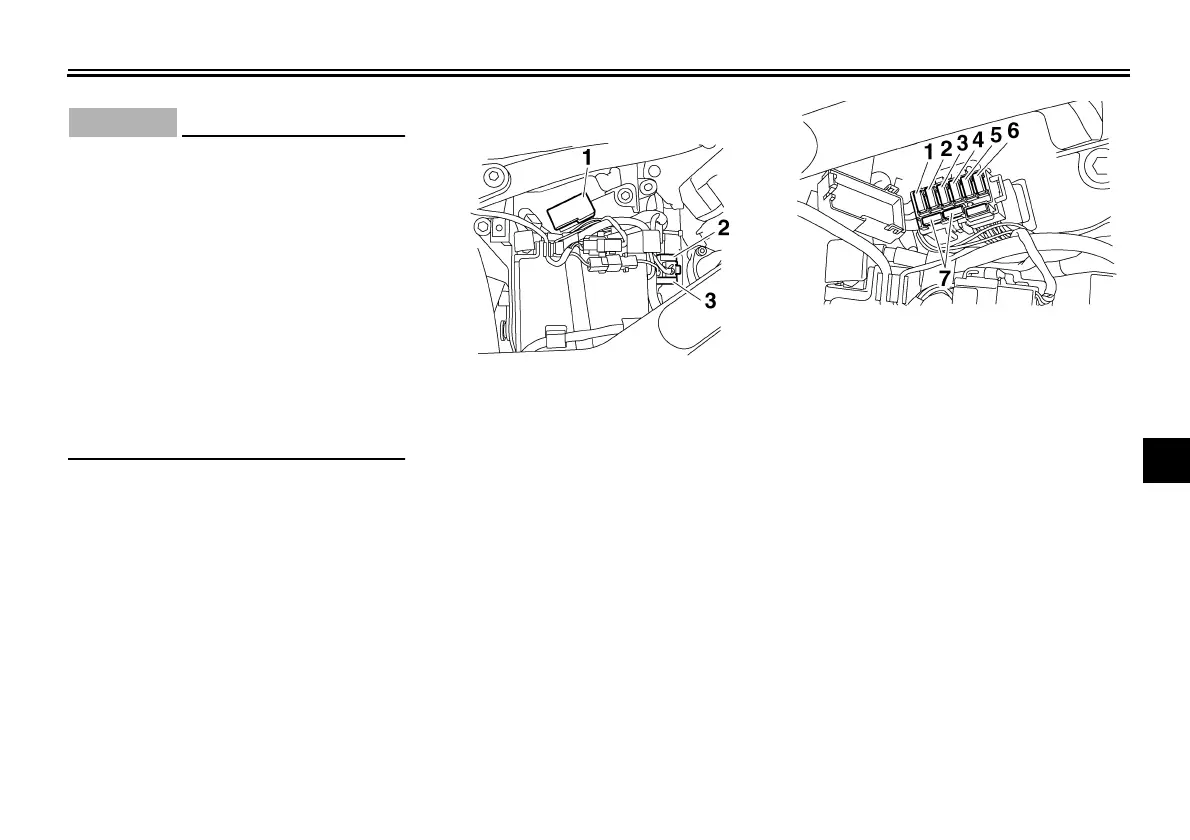

1. Fuse box
2. Main fuse
3. Spare main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Carburetor heater fuse
5. Parking lighting fuse (for XVS650AX only)
6. Backup fuse (for odometer and immobilizer
system) (for XVS650AX only)
7. Spare fuse
