PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
7. Tighten both locknuts.
EAU22093
Adjusting the brake lever free
play
The brake lever free play should mea-
sure 2.0–5.0 mm (0.08–0.20 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the brake lever free play
adjusting screw in direction (a). To
decrease the brake lever free play,
turn the adjusting screw in direc-
tion (b).
3. Tighten the locknut.
WARNING
EWA10630
● After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.
● A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha
dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-
trol and an accident.

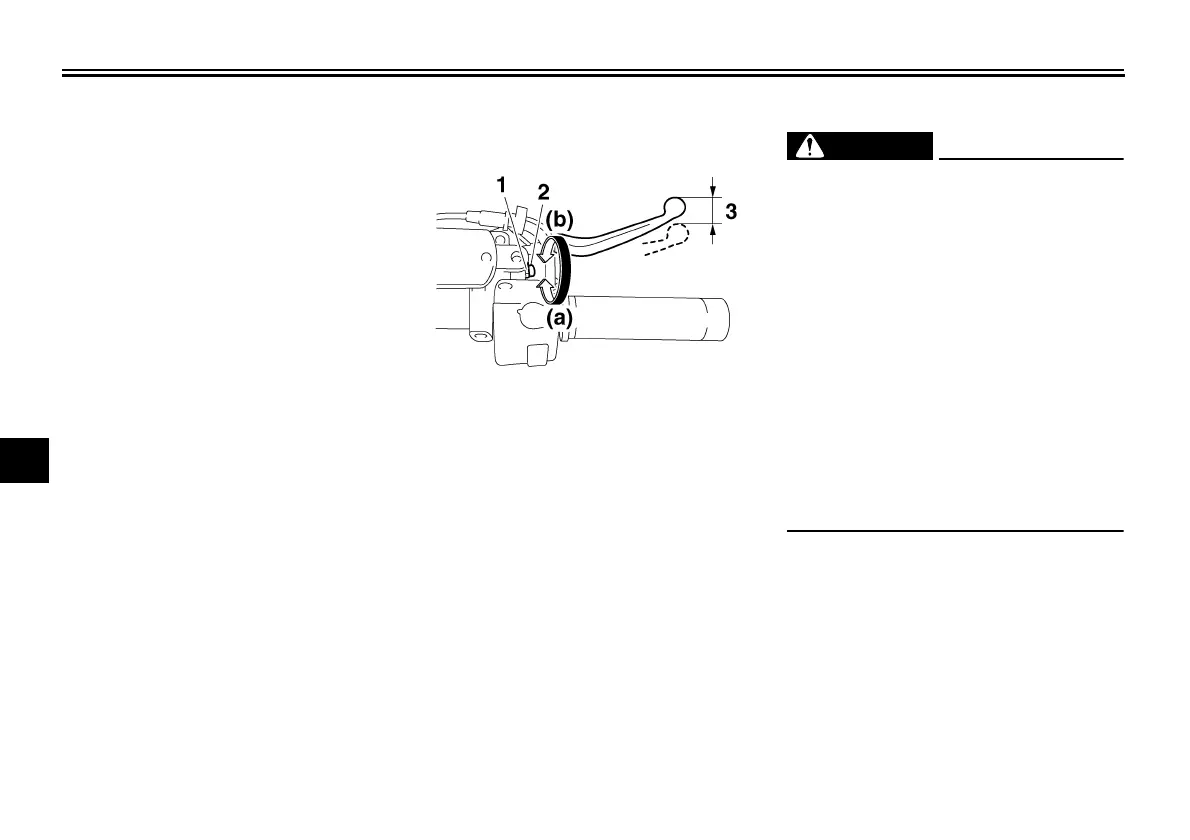

1. Locknut
2. Brake lever free play adjusting screw
3. Brake lever free play
