PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU42482
Replacing the license plate
light bulb
1. Remove the license plate light cov-
er by removing the bolts.
2. Pull the license plate light unit up
as shown.
3. Remove the license plate light
socket (together with the bulb) by
turning it counterclockwise, and
then pulling it out.
4. Remove the defective bulb by pull-
ing it out from the socket.
5. Insert a new bulb into the socket.
6. Install the socket (together with the
bulb) by pushing it in and turning it
clockwise until it stops.
7. Place the license plate light unit in
the original position, and then in-
stall the license plate light cover by
installing the bolts.

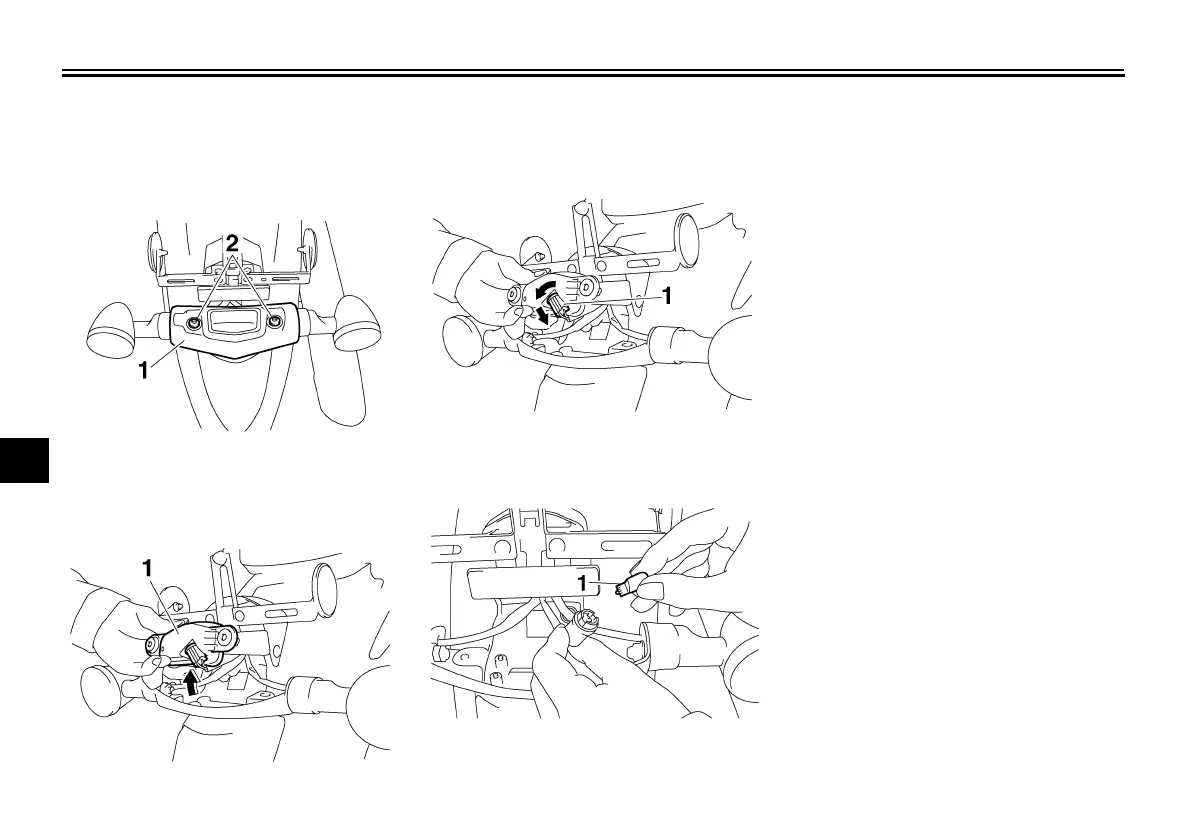

1. License plate light cover
2. Bolt
1. License plate light unit
1. License plate light bulb socket
1. License plate light bulb
