DESCRIPTION
3-2
3
EAU10420

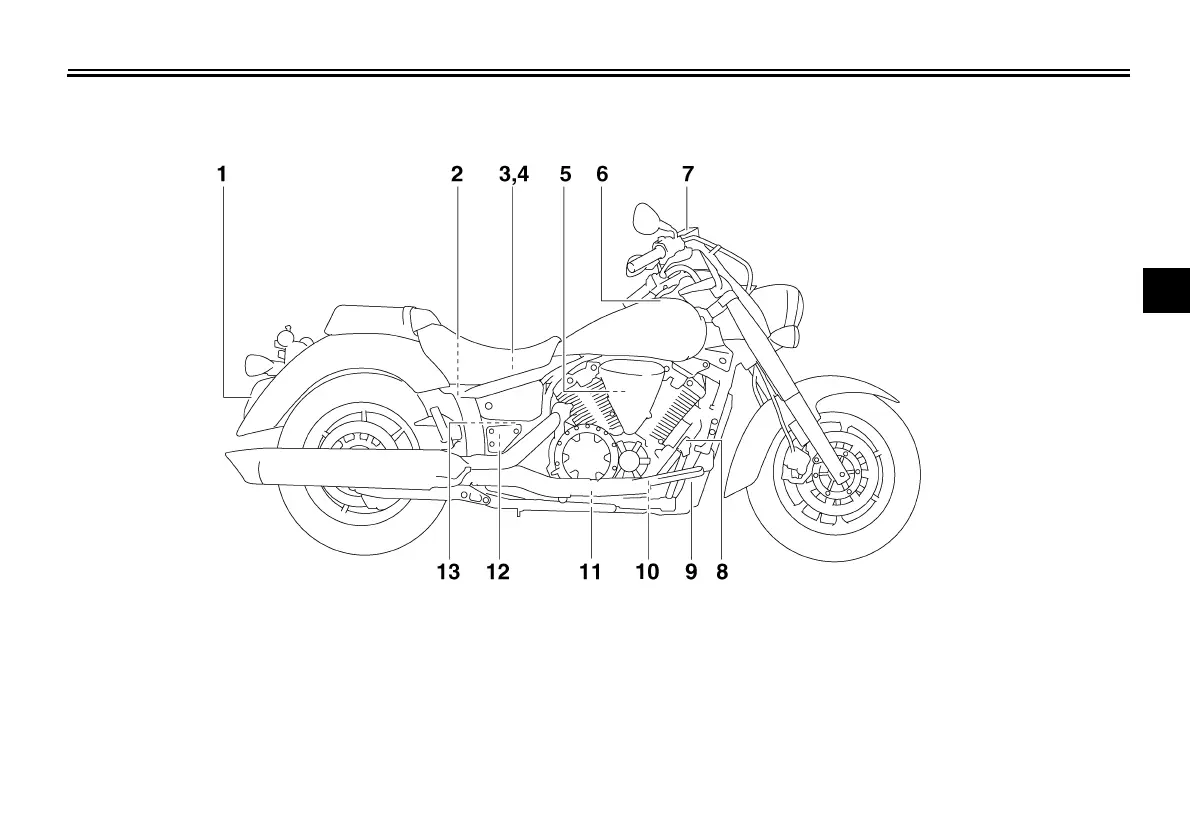

Right view
1. Tail/brake light (page 7-30)
2. Rear brake fluid reservoir (page 7-19)
3. Owner’s tool kit (page 7-1)
4. Battery (page 7-25)
5. Air filter element (page 7-13)
6. Fuel tank cap (page 4-12)
7. Front brake fluid reservoir (page 7-19)
8. Brake pedal (page 4-12)
9. Rear brake light switch (page 7-18)
10.Engine oil filter cartridge (page 7-9)
11.Engine oil drain bolt (page 7-9)
12.Coolant reservoir (page 7-12)
13.Shock absorber assembly spring preload adjusting ring (page 4-16)
U12C22E0.book Page 2 Friday, October 17, 2008 4:39 PM
