Multi-function meter unit
WARNING
EWA12422
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
● a speedometer
● an odometer
● two tripmeters (which show the
distance traveled since they were
last set to zero)
● a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
● a clock
● a self-diagnosis device
● a brightness control mode
TIP
Be sure to turn the key to “ON” before
using the “SELECT” switch “ / ”
and “RESET” switch, except for setting
the brightness control mode.
Speedometer
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.

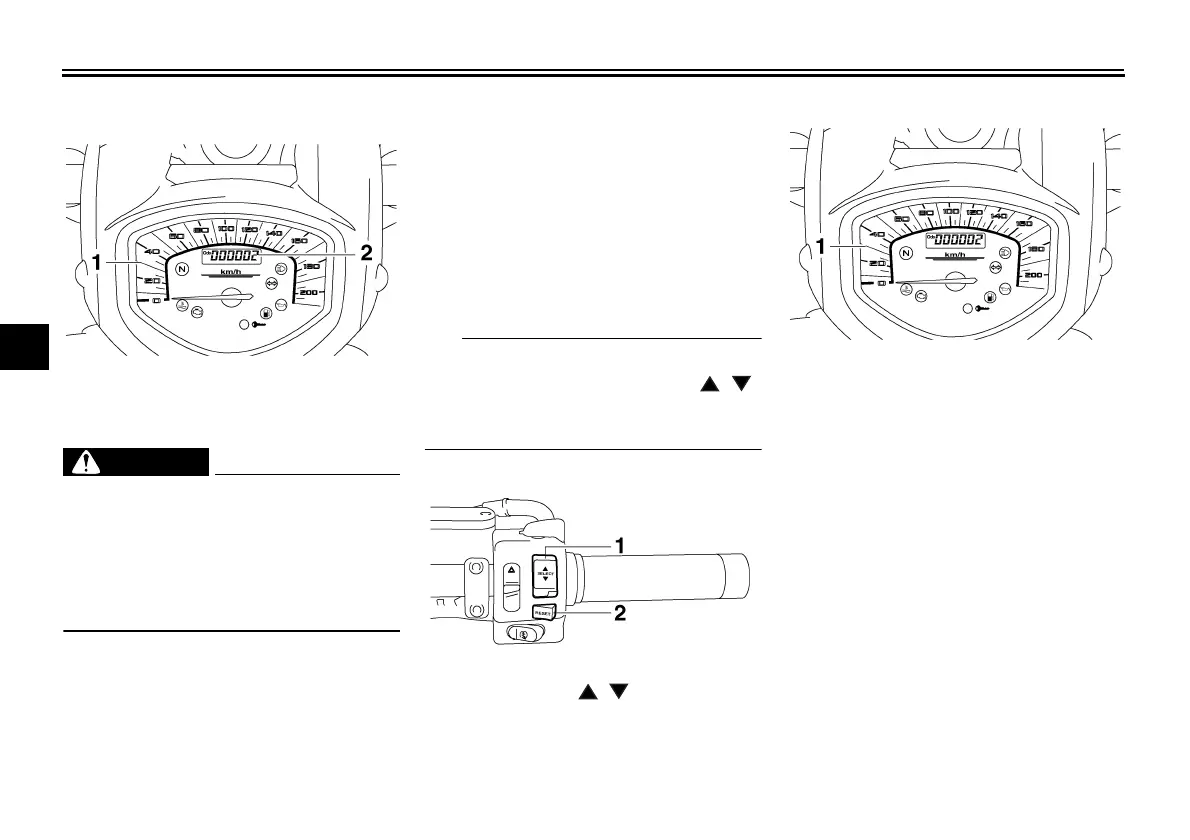

1. Speedometer
2. Odometer/tripmeter/fuel reserve tripme-
ter/clock
1. “SELECT” switch “ / ”
2. “RESET” switch
1. Speedometer
