FEATURES AND BENEFITS
1-13
E
GEN
INFO

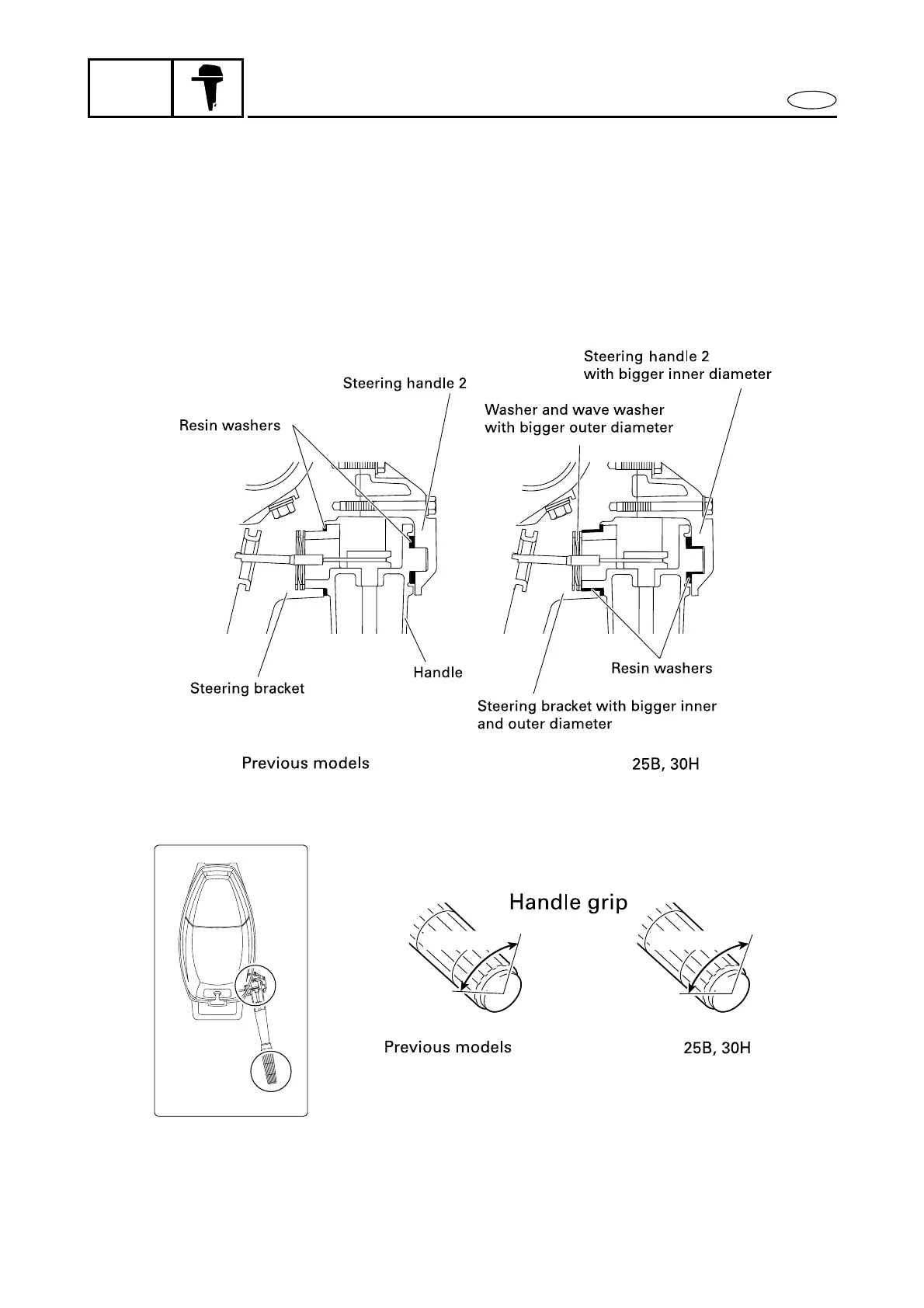

TILLER HANDLE
For the throttle grip on the steering handle of the 25B and 30H, 100 degrees of opening angle
covers all ranges from full-close to wide-open positions.
Also, new steering handle parts were developed to assume the long use. Inner diameter of
the steering handle engagement area, and both inner and outer diameters of steering bracket
are increased.
Please note that if the new steering handle is installed on the previous models, Steering
handle 2, Steering bracket, Collar, and Washer must be replaced.
Fig. 9
100 degrees
90 degrees
Fig. 8
