Yamaha 4AC User Manual

Components
14
EMU2579M

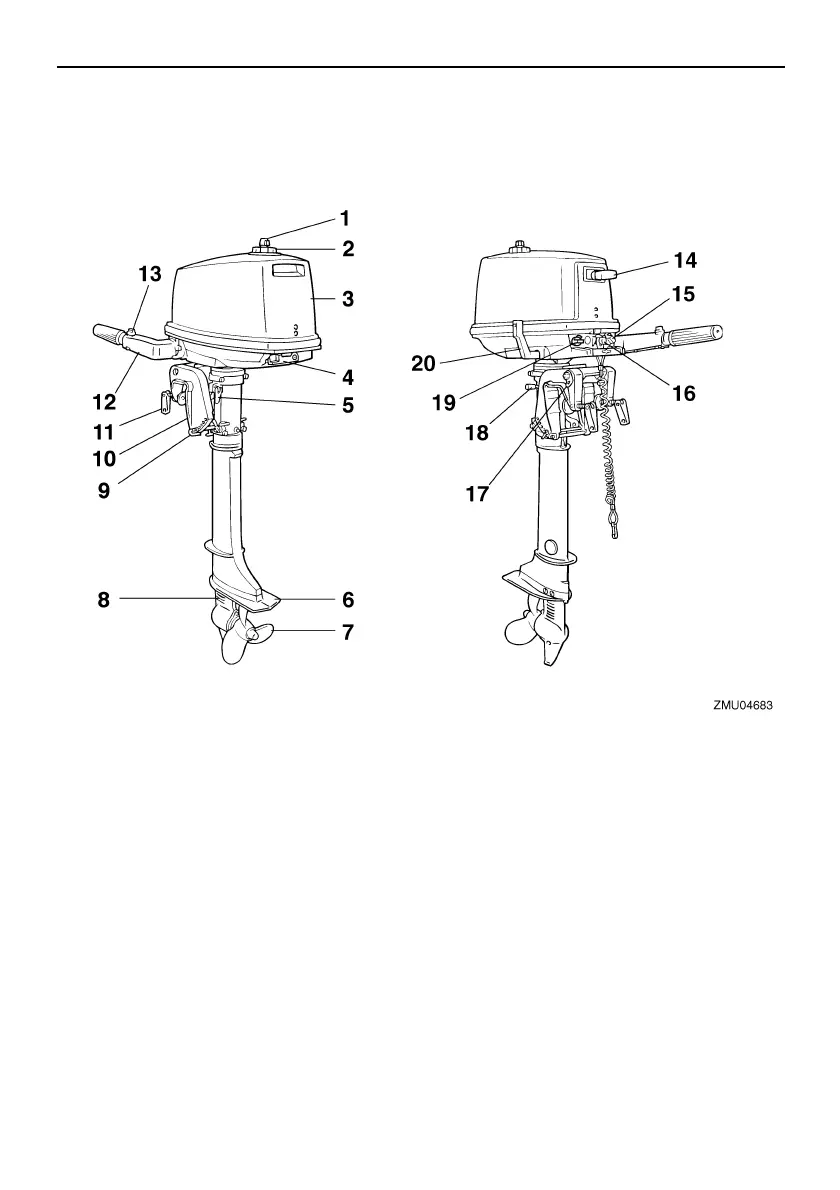

Components diagram
T
IP:
* May not be exactly as shown; also may not be included as standard equipment on all models.
4AC
1. Air vent screw
2. Fuel tank cap
3. Top cowling
4. Cowling lock lever
5. Steering friction adjuster
6. Anti-cavitation plate
7. Propeller
8. Cooling water inlet
9. Trim rod
10.Clamp bracket
11.Clamp screw
12.Tiller handle
13.Throttle friction adjuster
14.Manual starter handle
15.Choke knob
16.Engine stop button/Engine shut-off switch
17.Restraint cable attachment
18.Tilt support bar
19.Fuel cock
20.Gear shift lever
U6E028E0.book Page 14 Tuesday, February 10, 2009 3:19 PM

Yamaha 4AC Specifications

General

Fuel Induction System	Carburetor
Starting System	Manual
Gear Ratio	2.08:1
Engine Type	2-stroke
Prop Shaft Horsepower / Max. Output / Max Power	4 hp
Full Throttle RPM Range	4, 500 - 5, 500 rpm
Ignition System	CDI
Lubrication System	Premix
Gear Shift	F-N
Shaft Length	S
