Components
20
EMU26122

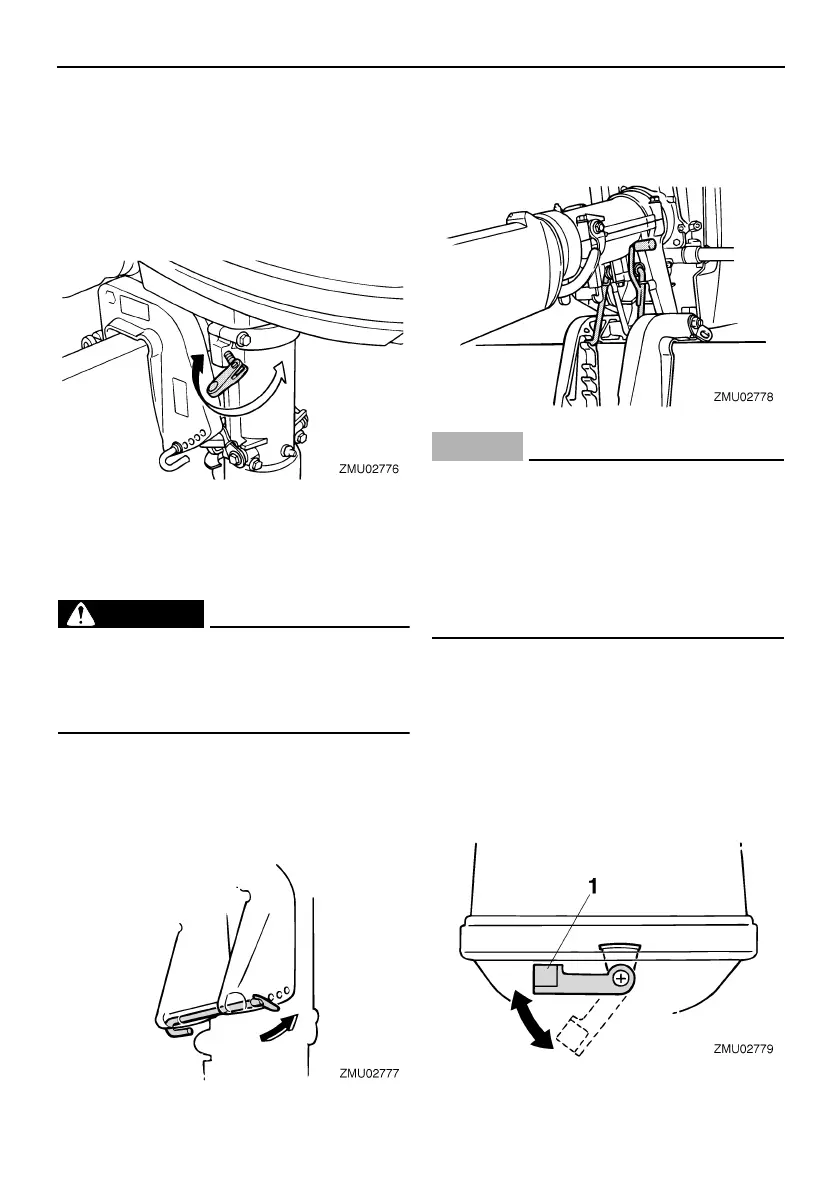

Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
justing screw or bolt is located on the swivel
bracket.
To increase resistance, turn the adjuster
clockwise.
To decrease resistance, turn the adjuster
counterclockwise.
WARNING
EWM00040
Do not overtighten the friction adjuster. If
there is too much resistance, it could be
difficult to steer, which could result in an
accident.
EMU26261
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU26332
Tilt support bar
The tilt support bar keeps the outboard motor
in the tilted up position.
NOTICE
ECM01660
Do not use the tilt support bar when traile-
ring the boat. The outboard motor could
shake loose from the tilt support and fall.
If the motor cannot be trailered in the nor-
mal running position, use an additional
support device to secure it in the tilt posi-
tion.
EMU26373
Cowling lock lever(s) (turn type)
To remove the engine top cowling, turn the
cowling lock lever(s) and lift off the cowling.
When installing the cowling, check to be sure
it fits properly in the rubber seal. Then lock the
cowling again by returning the cowling lock le-
ver(s) to the lock position.
1. Cowling lock lever(s)
U6E028E0.book Page 20 Tuesday, February 10, 2009 3:19 PM
