Quick Guide
Owner’s Manual
46
Changing the signal output to each
output port
1.

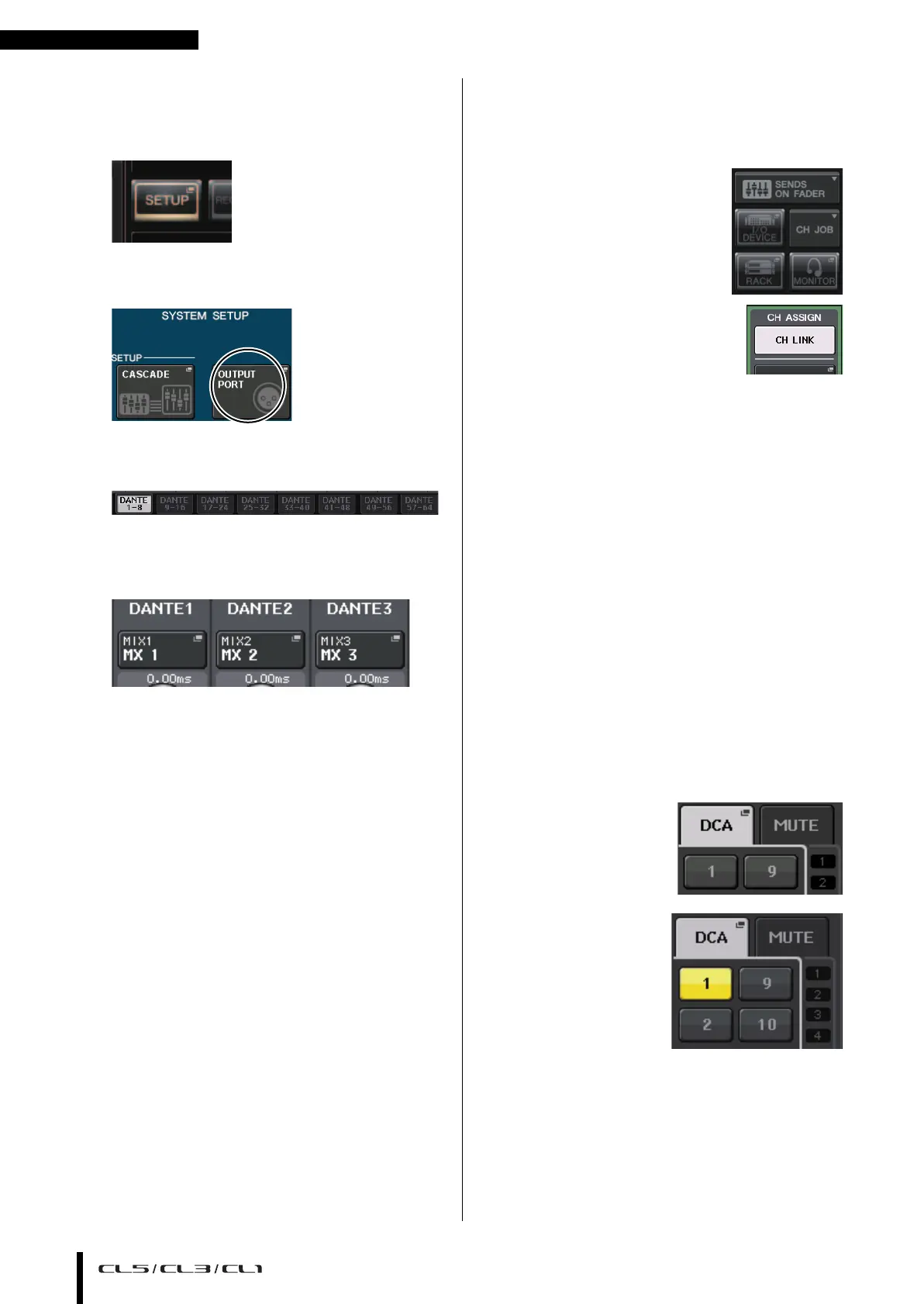

Press the SETUP button in the display screen.
2. Press the OUTPUT PORT button in the
SYSTEM SETUP screen.
3. Select the OUTPUT PORT tab you want to
change.
4. Press the output channel select button to
select the output channel for which you want
to change the port.
Grouping and linking
Creating a channel link
1. Press the CH JOB button in
the display screen.
2. Press the CH LINK button.
3. Select the bank that contains the channels
you want to link in the Channel Strip section
or Centralogic section.
4. While pressing and holding down the [SEL]
key of one channel, press the [SEL] key of the
other channel that you want to link.
5. To release the link, press and hold down the
[SEL] key for one of the linked channels, and
press the [SEL] key for the other channel.
NOTE
You can also set or release a channel link in the display.
Setting a DCA or MUTE group
1. Press the [SEL] key of the channel that you
want to control.
2. Press the DCA tab or
MUTE tab in the
SELECTED CHANNEL
screen.
3. Press the desired
group number
button.
4. To assign other channels to a group, press
DCA or MUTE group numbers in the same
way.
