RIVAGE PM7 System Setup Guide
26
@ Layer Select [A]/[B]/[C]/[D]/[E]/[F] keys
Enable you to select a layer. Different layers are recalled to the faders depending on the combination of the keys, as
shown in the table below:
# [HOME] key
Recalls a group of settings. Press and hold down this key to store the following settings:
• Current screen
• Selected channel/parameter on the screen
• Selected layer

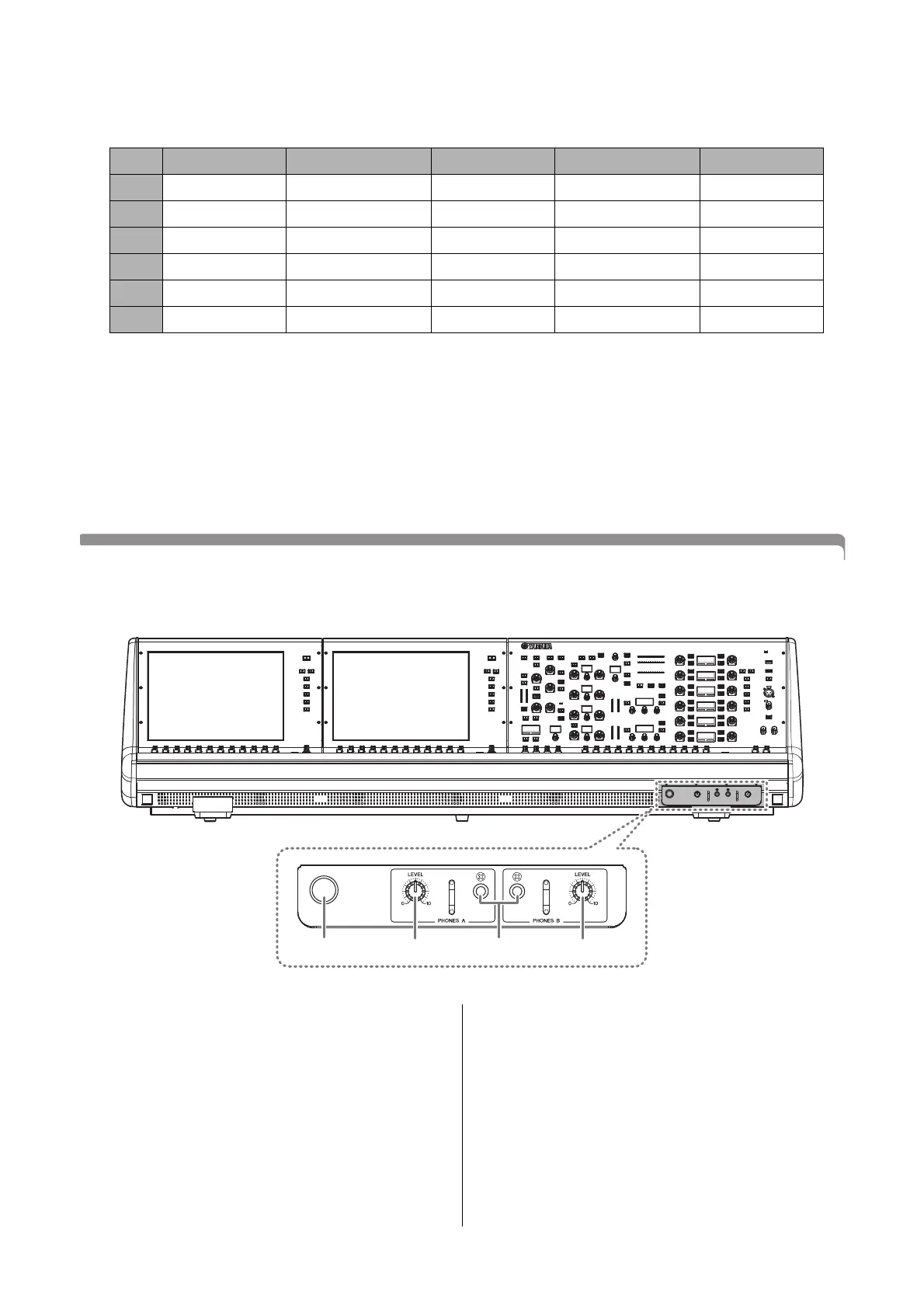

Front panel
1 Headphone hanger
To use the hanger, pull out the knob, and then turn it
counter-clockwise. (The hanger will be locked in
place.)
To put away the hanger, turn the knob clockwise to
unlock it, and then push it in.
2 PHONES A/B [LEVEL] knobs
Adjust the level of the signal output from the
PHONES OUT jacks respectively.
3 PHONES A/B output jacks
These are headphone jacks for monitoring the
MONITOR or CUE signal.
Key [INPUT 1-72] [INPUT 73-120] [OUTPUT MIX] [OUTPUT MATRIX] [DCA]
[A] Input 1-12 Input 73-84 MIX 1-12 MATRIX 1-12 DCA 1-12
[B] Input 13-24 Input 85-96 MIX 13-24 MATRIX 13-24 DCA 13-24
[C] Input 25-36 Input 97-108 MIX 25-36 – –
[D] Input 37-48 Input 109-120 MIX 37-48 STEREO –
[E] Input 49-60 – MIX 49-60 CUE/MONITOR –
[F] Input 61-72 ––––
