RIVAGE PM7 System Setup Guide
39

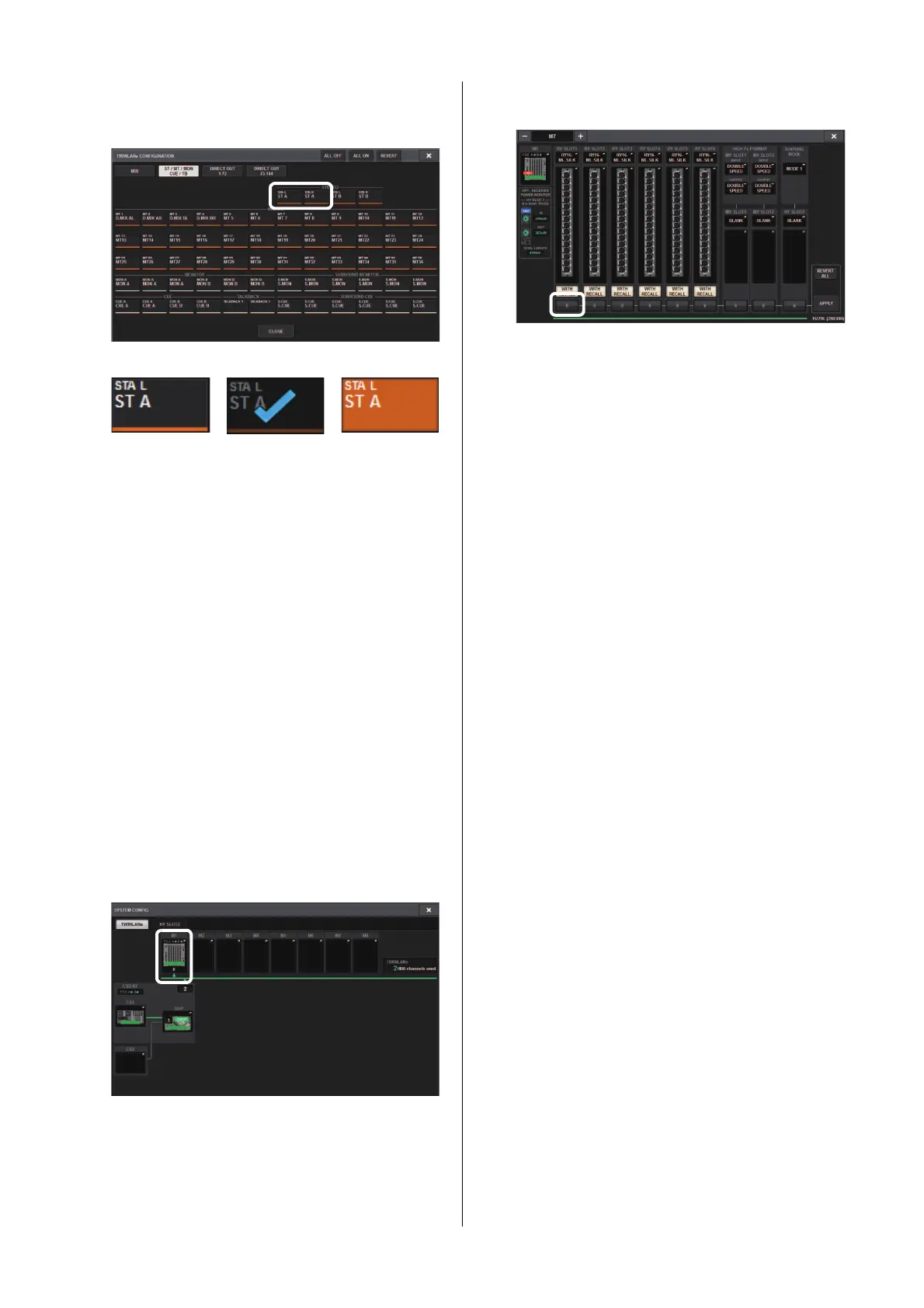

4. Press the channel select buttons to turn them
on.
For this example, select STA L and STA R.
Channel select button
5. To close the TWINLANe CONFIGURATION
popup window, press the CLOSE button.
The system will return to the SYSTEM CONFIG
[DSP] popup window.
6. If you changed the channel assignments,
press the APPLY button.
The setting will be applied to the output from the
DSP to the TWINLANe network.
7. When a confirmation dialog appears, press
the OK button.
8. To close the DSP setting screen, press the “x”
symbol located in the upper right.
The system will return to the SYSTEM CONFIG
popup window.
9. Select the I/O rack.
Press the I/O rack select button (in this example, the
M1 button).
The I/O rack settings popup window will appear.
10. Press the Channel assign popup button.
For this example, select RY card slot 1.
11. Press the APPLY button.
The setting will be applied to the output from the I/O
rack to the TWINLANe network.
12. When a confirmation dialog appears, press
the OK button.
Unselected Currently
selected
Already
selected
