3-35

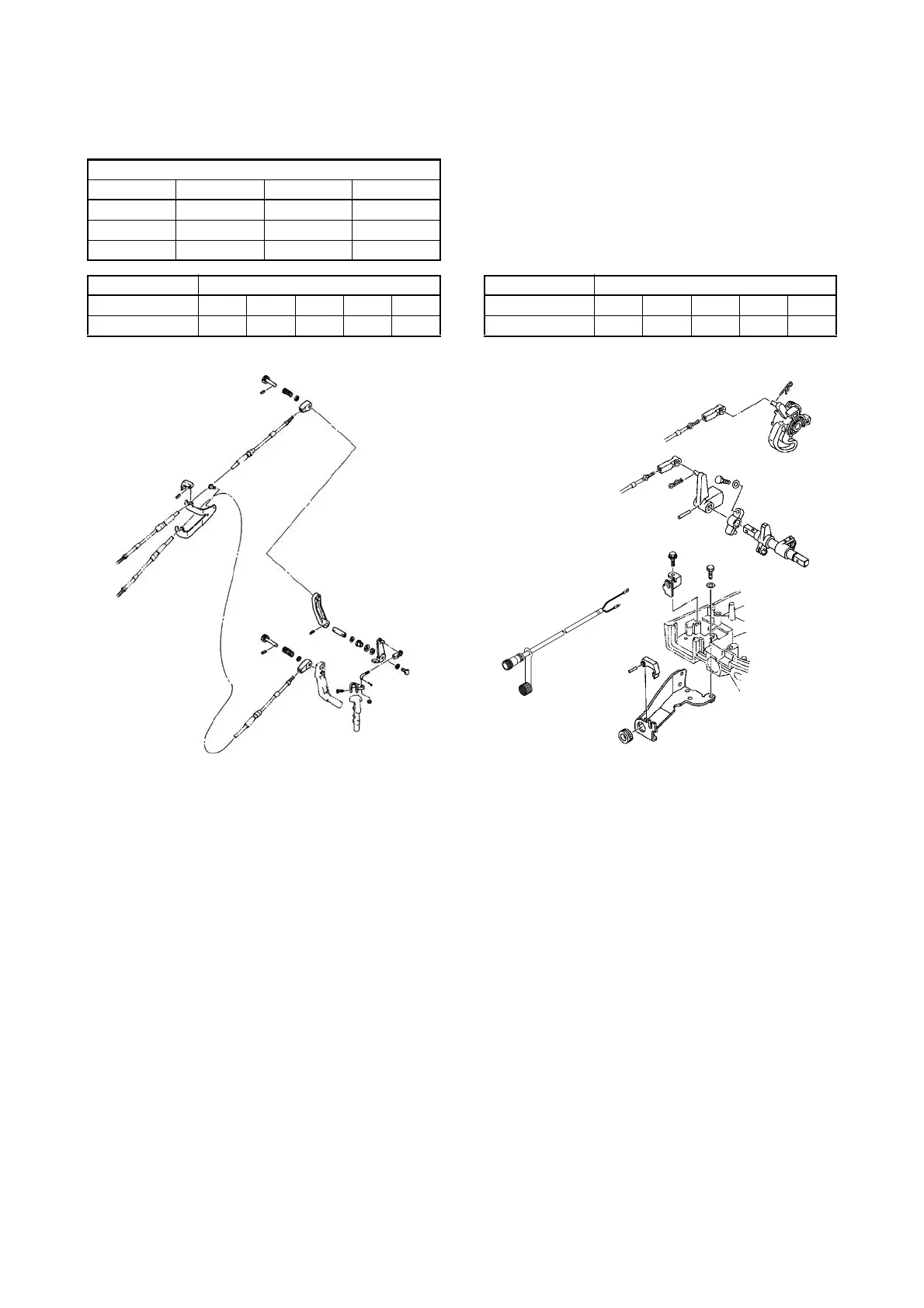

REMOTE CONTROL ATTACHMENT KIT
If the specified tigh
tening torque for the bolts and nuts is
not mentioned in the figure, use standard
torque as follows.
To be continued.
General torque tab
le
Bolt size
Nm
kgf•m
lb•ft
M
550
.
54
M
680
.
86
M8
18
1.8
13
Part No.
6G1-48501-50
Global model
6C
8C
US/CA model
Part No.
6AH-48501-00
Global model
F9.9H
F15C
F20B
F20C
US/CA model
F15A
F20A
122
124
