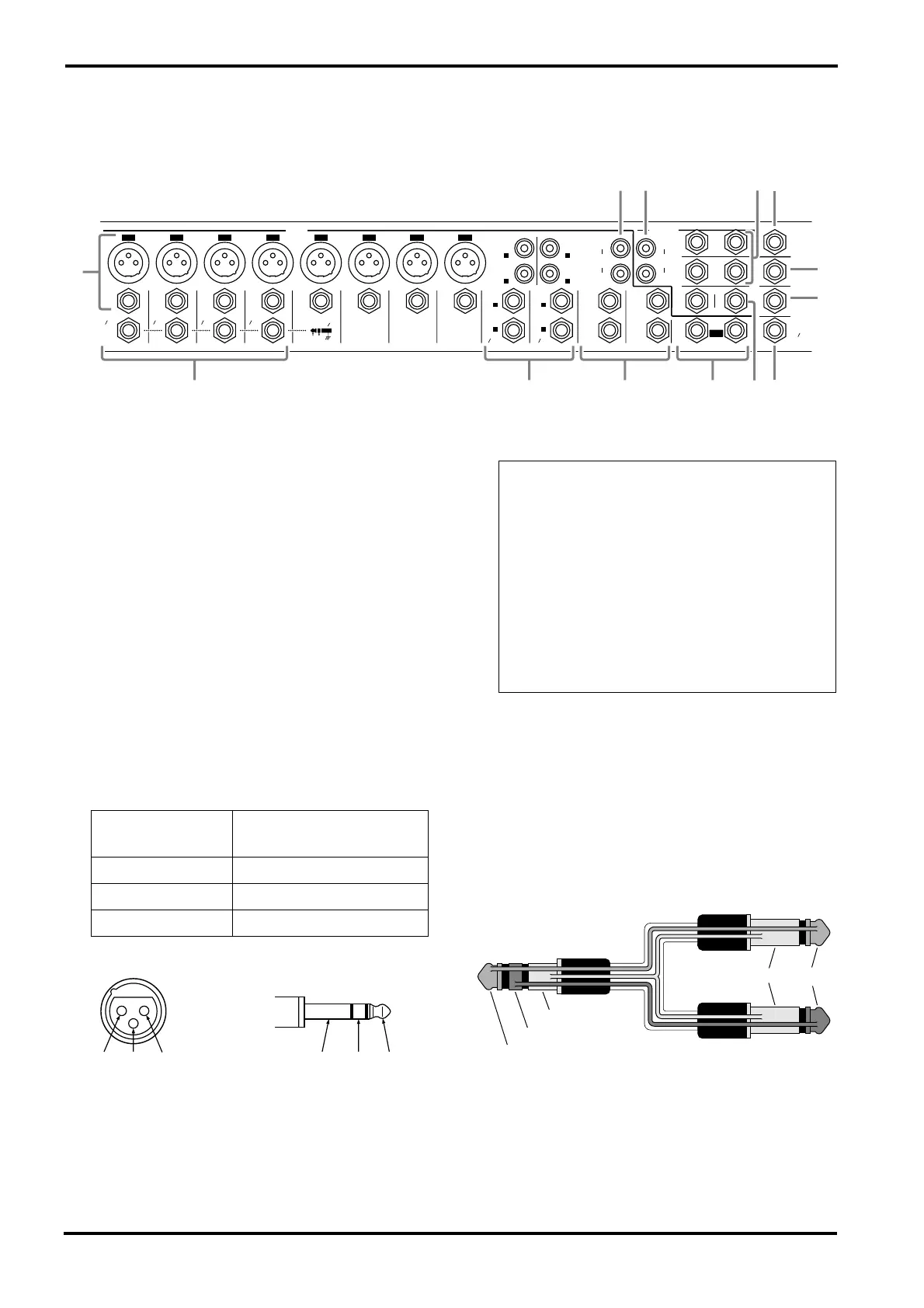

Input/output panel
1 Channel input jacks (MIC, LINE) 1~8
These are the input jacks for channels 1~8.
By using the GAIN control (control panel 1)
you can connect any of the jacks to a wide range
of sources, from mics to line-level devices
(including synthesizers and rhythm machines).
The MIC jacks can provide +48V phantom
power, allowing you to use condenser micro-
phones.
Both MIC and LINE are balanced.
They are compatible with microphones of output
impedance 50~600Ω or line level devices of
600Ω. The nominal input level is –34 dB~+10 dB
for the LINE jacks, and –60 dB~–16 dB for the
MIC jacks.
Pin connections for the MIC and LINE jacks are
as follows:
* You can also connect a normal unbalanced phone plug.
2 INSERT I/O (insert) jacks 1~4
These are TRS phone jacks that enable you to
insert an external effect processor, such as a com-
pressor/limiter, between the equalizer and fader
of input channels 1~4. These connections require
a special “Y” cable, such as shown in the follow-
ing diagram. The nominal input/output levels are
0 dB.
0
A
I O I O I O I O
A
A
A
A
B
B
B
B
ST
SUB 1
ST
SUB 2
+4dB +4dB
TAPE REC
ST 1
-10dBV -10dBV
+4dB
ST 2
+4dB
+4dB
+4dB
+4dB
+4dB
MONI MONI
MONO
EFFECT
FOOT SW
12
BRIDGE
P.AMP
IN
C-R
PHONES
9 L 11 L L L
LR
L
R
RL
9 L
10 R 12 R R R
10 R
11 L
12 R
(MONO) (MONO) (MONO) (MONO)
9 10
11 12
INPUT OUTPUT
L
R
L
R
1 2345678
INSERT
LINE
INSERT
LINE
INSERT
LINE
INSERT
LINE
LINE LINE LINE LINE
MIC MIC MIC MIC MIC MIC MIC MIC
INSERT
OUT IN
0dB
I O
B93426
C857
1
MIC jacks
(XLR type)
LINE jacks
(TRS phone jacks) *
Pin 1: ground Sleeve: ground
Pin 2: hot (+) Tip: hot (+)
Pin 3: cold (–) RIng: cold (–)
GND
RST
+-
GND
+-
12
3
Note: It is not possible to simultaneously use
both the MIC and LINE inputs of a given chan-
nel. For each channel, use only one of the in-
puts as appropriate for the input source.
Phantom power is switched on/off simulta-
neously for channels 1~8. For this reason, de-
vices (in particular, unbalanced devices) other
than condenser microphones must be connect-
ed to the LINE input jacks of channels 1~8 or
channel 9/10~11/12 input jacks if the PHAN-
TOM +48V switch (control panel Y) is on.
to the input jack of
the external processor
to the output jack of
the external processor
to the INSERT I/O jack
Tip
Tip
Ring
Sleeve
Sleeve
