Control panel
3
EMX3000—Owner’s Manual
■ Master control section
In this section, you can adjust the final level of
the outputs.
E
MONI 1 (monitor 1) fader
The MONI 1 fader adjusts the final level of the
signal sent from the MONITOR 1 bus to the
MONI 1 jack (input/output panel 9 ). If the
Power amp select switch V is set to MONI 1-
MONO, using this fader enables you to adjust the
level of the signal sent from the SPEAKER L/
MONI1 1/2 jacks to the speakers.
F MONI 2 (monitor 2) fader
The MONI 2 fader adjusts the final level of the
signal output from the MONITOR 2 bus to the
MONI 2 jack (input/output panel 9 ).
G
EFFECT fader
The EFFECT fader adjusts the final level of the
signal output from the EFFECT bus to the
EFFECT jack (input/output panel A ).
H
ST 1 (stereo 1) fader
The ST 1 fader adjusts the final level of the signal
sent from the STEREO bus to the ST 1 jacks
(input/output panel 8 ). If the Power amp select
switch V is set to ST1 L-ST1 R, this fader also
adjusts the level of the signal sent to the SPEAK-
ERS jacks (rear panel 1 ).
I
MONO (monaural) fader
The MONO fader adjusts the final level of the
monaural signal output from the STEREO bus to
the MONO jack (input/output panel 0 ).
If the Power amp select switch V is set to
MONI 1-MONO, this fader also adjusts the level
of the signal sent from the SPEAKERS R/MONO
1/2 jacks to the speakers.
If the Power amp select switch V is set to MONO
(BRIDGE), this fader adjusts the level of the sig-
nal sent from the SPEAKERS BRIDGE jack to the
speaker.
J
AFL (after fader listen)
When this switch is on, the output signal that
passes through the corresponding fader is sent to
the C-R/PHONES jack (input/output panel B ).
Use these switches when you wish to monitor a
particular output signal through the headphones.
■ Tape in section
In this section, you can adjust the input level of a
cassette deck or a CD player that is connected to
the TAPE jacks (input/output panel 5).
K ST (stereo) control
This knob adjusts the level of the signal sent from
the TAPE jacks to the STEREO bus.
L PFL (pre-fader listen) switch
When this switch is on, the signal input from the
TAPE jacks is routed at the point before the ST
control K to the C-R/PHONES jack (input/out-
put panel B).
Note: The setting of this fader does not affect
the level of the signal sent from the EFFECT
bus to the built-in effect.
Note: The setting of this fader does not affect
the signal output from the STEREO bus to the
ST 2 jacks.

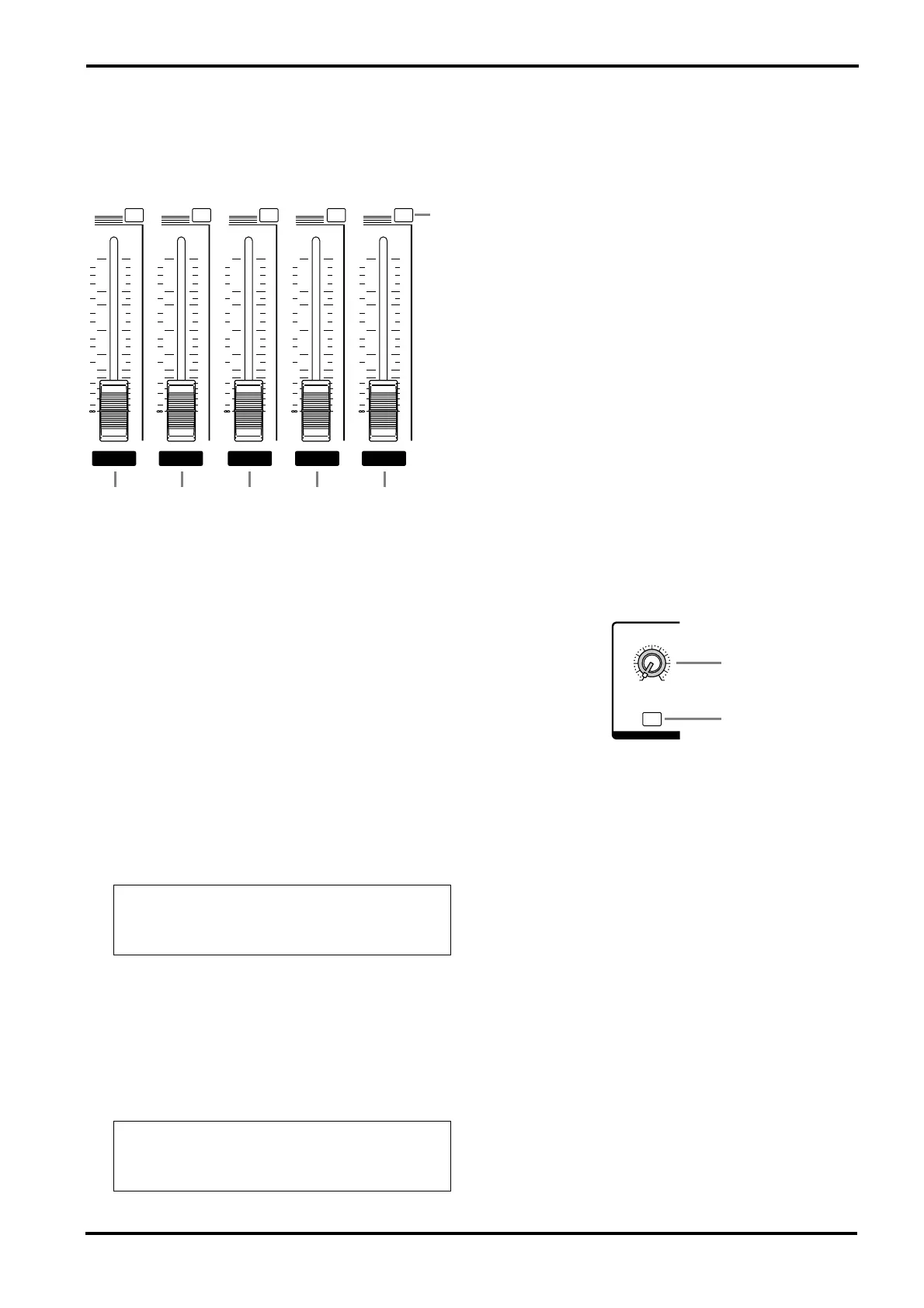

E F G H I
J
AFLAFLAFLAFLAFL
0
5
10
15
20
40
50
25
30
0
5
10
15
20
40
50
25
30
0
5
10
15
20
40
50
25
30
0
5
10
15
20
40
50
25
30
0
5
10
15
20
40
50
25
30
MONOMONI 2MONI 1 ST 1EFFECT
K
L
TAPE IN
10
0
ST
PFL
