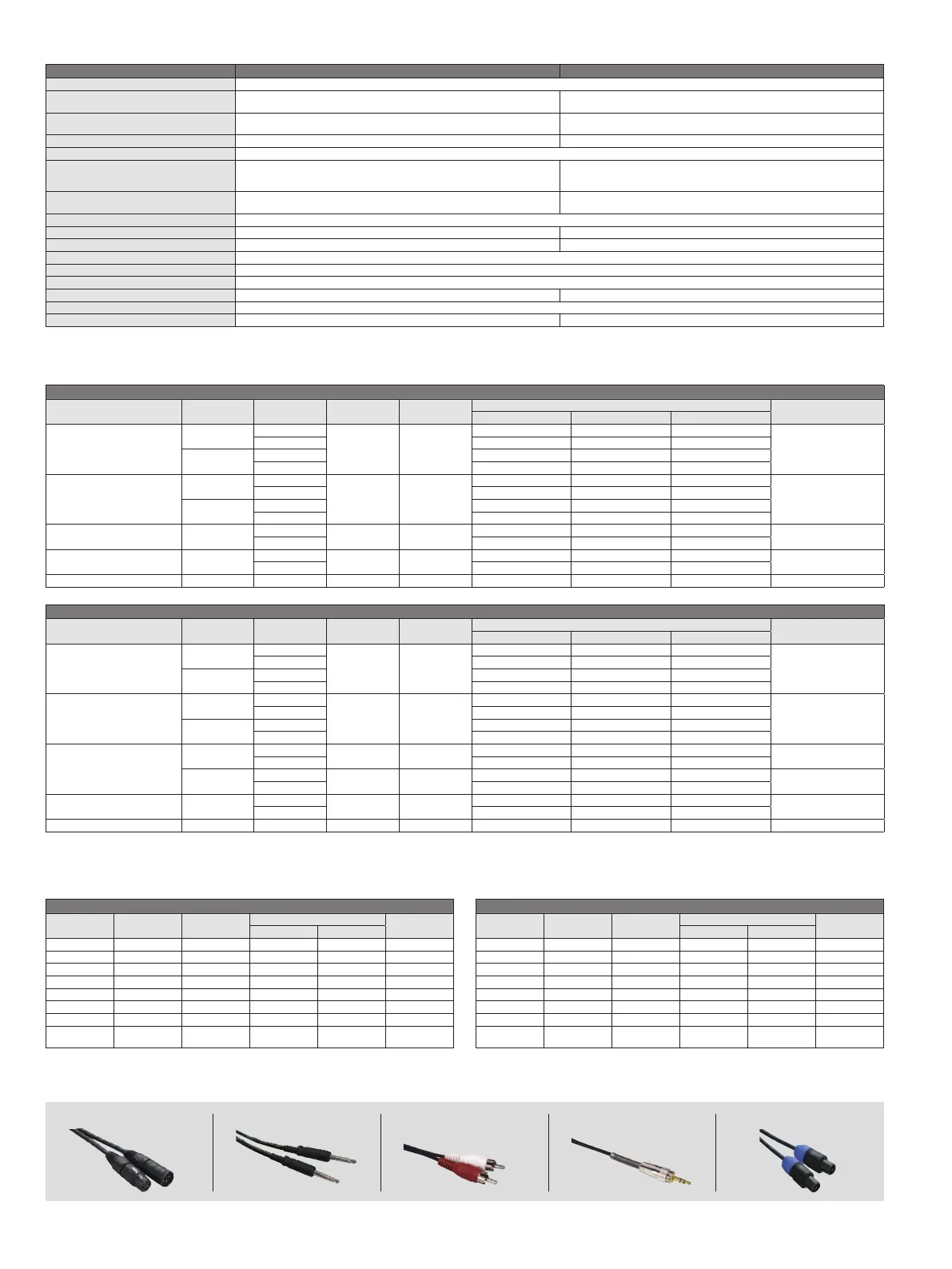

EMX5016CF / EMX5014C General Specifications
MODEL EMX5016CF EMX5014C
Output Power 500 W/4 Ω, 350 W/8 Ω (UA) , 320 W/8 Ω (H)
Frequency Response
-3, 0, 1 dB
20 Hz-20 kHz, ref to the 1 kHz output level, GAIN=MIN, PAD=OFF
-3, 0, 1 dB, 20 Hz-20 kHz
ref to the nominal output level @ 1 kHz
Total Harmonic Distortion
Less than 0.3 % (THD+N)
+14 dBu output into 600 W @ 20 Hz-20 kHz
Less than 0.3 % (THD+N)
+14 dBu output into 600 Ω @ 20 Hz-20 kHz
Hum & NoiseEquivalent Input Noise, -128 dBu, GAIN=MAX, 20 Hz-20 kHz, CH1-8 MIC Equivalent Input Noise, -128 dBu, GAIN=MAX, 20 Hz-20 kHz, ST OUT
Crosstalk (1kHz) -68 dB
Input Connectors
CH 1-8: XLR and Phone
CH 9/10-15/16: XLR. Phone and Pin
CH 1-6: XLR and Phone
CH 7/8, 9/10: XLR and Phone
CH 11/12, 13/14: XLR and Pin
EQ
CH 1-8: HIGH (10 k, Shelving), MID (mono: 250-5 k, st: 2.5 k, Peaking), LOW (100, Shelving)
CH 9/10-15/16: HIGH (10 k, Shelving), MID (st: 2.5 k, Peaking), LOW (100, Shelving)
HIGH (10 k, Shelving), MID (mono: 250-5 k, st: 2.5 k, Peaking), LOW (100, Shelving)
Phantom Power Voltage 48 V
Graphic Equalizer 9 Band (63, 125, 250, 500
, 1 k, 2 k, 4 k, 8 k, 16 kHz), Preset x 3, User preset x 3 9 Band (63, 125, 250, 500,
1 k, 2 k, 4 k, 8 k, 16 kHz)
Digital Effects SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs x 2 SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs
Power Amp. Mode L/R, AUX1/MONO, AUX1/2
Foot Switch Effect On/Off
Power Requirement 120V /60 Hz, 220-240 V /50 Hz (Vary by region)
Power Consumption 500W 450 W
Dimensions (W x H x D) 444 mm x 155 mm x 493 mm (17 3/8" x 6 1/8" x 19 3/8" )
Net Weight 11 kg (24.2 lbs.) 10.5 kg (23.1 lbs.)
All level controls are nominal, when measured. Output impedance of signal generator: 150 Ω
EMX5016CF / EMX5014C Input Characteristics
EMX5016CF
Input Terminals PADGAIN
Actual Load
Impedance
For Use With Nominal
Input Level
Connector
Sensitivity *2PositionMax. Before Clip
CH INPUT A 1-8
0dB
-60 dB
3 kΩ 50-600 Ω Mics
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 mV)
XLR-3-31 type *3
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) +4 dBu (1.23 V)
26dB
-34 dB-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
CH INPUT B 1-8
0dB
-60 dB
10 kΩ600 Ω Lines
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 V)
Phone Jack *4
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) +4 dBu (1.23 V)
26dB
-34 dB-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
ST CH MIC INPUT 9/10-15/16—
-60 dB
3 kΩ 50-600 Ω Mics
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 mV)
XLR-3-31 type *3
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) -10 dBu (245 mV)
ST CH LINE INPUT 9/10-15/16—
-34 dB
10 kΩ600 Ω Lines
-54 dBu (1.55 mV) -34 dBu (15.5 mV) -1
4 dBu (155 mV)
Phone Jack *5
RCA pin Jack
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
CH INSER
T IN (1-8) ——10 kΩ600 Ω Lines -20 dBu (77.5 mV) 0 dBu (0.775 V)+20 dBu (7.75 V)Phone Jack *5
EMX5014C
Input Terminals PADGAIN
Actual Load
Impedance
For Use With Nominal
Input Level
Connector
Sensitivity *2PositionMax. Before Clip
CH INPUT A 1-6
0dB
-60 dB
3 kΩ 50-600 Ω Mics
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 mV)
XLR-3-31 type *3
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) +4 dBu (1.23 V)
26dB
-34 dB-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
CH INPUT B 1-6
0dB
-60 dB
10 kΩ600 Ω Lines
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 V)
Phone Jack *4
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) +4 dBu (1.23 V)
26dB
-34 dB-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
ST CH INPUT 7/8-9/10
—
-60 dB
3 kΩ 50-600 Ω Mics
-80 dBu (0.078 mV) -60 dBu (0.775 mV) -40 dBu (7.75 mV)
XLR-3-31 type *3
-16 dB-36 dBu (12.3 mV) -16 dBu (123 mV) -10 dBu (245 mV)
—
-34 dB
10 kΩ600 Ω Lines
-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
Phone Jack *5
+10 dB-10 dBu (245 mV) +10 dBu (2.
45 V)+30 dBu (24.5 V)
ST CH INPUT 11/12-13/14 —
-34 dB
10 kΩ600 Ω Lines
-54 dBu (1.55 mV) -34 dBu (15.5 mV) -14 dBu (155 mV)
"Phone Jack *5
RCA pin Jack
+10 dB-10 dBu (245 mV) +10 dBu (2.45 V)+30 dBu (24.5 V)
CH INSER
T IN (1-6) ——10 kΩ600 Ω Lines -20 dBu (77.5 mV) 0 dBu (0.775 V)+20 dBu (7.75 V)Phone Jack *5
*1 0 dBu is referenced to 0.775 Vrms. *2 Sensitivity is the lowest level that will produce an output of +4 dBu (1.23 V), or the nominal output level when the unit is set to maximum level. (All level controls are at maximum position.)
*3 XLR-3-31 type connectors are balanced. (1=GND, 2=HOT, 3=COLD) *4 Phone Jacks are balanced. (Tip=HOT, Ring=COLD, Sleeve=GND) *5 Phone Jacks are unbalanced.
EMX5016CF / EMX5014C Output Characteristics
EMX5016CF EMX5014C
Output Terminals
Actual Source
Impedance
For Use With
Nominal
Output Level
Connector Output Terminals
Actual Source
Impedance
For Use With
Nominal
Output Level
Connector
NominalMax. Before Clip NominalMax. Before Clip
ST OUT [L, R]150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2ST OUT [L, R]150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
ST SUB OUT [L, R]
150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
ST SUB OUT [L, R]
150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
AUX SEND 1, 2 150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2AUX SEND 1, 2 150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
EFFECT SEND 1, 2
150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
EFFECT SEND
150 Ω 600 Ω Lines +4 dBu (1.23 V)+20 dBu (7.75 V)Phone Jack *2
CH INSERT OUT 1-8 600 Ω 10 kΩ Lines 0 dBu (0.775 V)+20 dBu (7.75 V)Phone Jack *2CH INSERT OUT 1-6 600 Ω 10 kΩ Lines 0 dBu (0.775 V)+20 dBu (7.75 V)Phone Jack *2
REC OUT [L, R]600 Ω 10 kΩ Lines -10 dBV (316 mV) +10 dBV (3.16 V)RCA pin JackREC OUT [L, R]600 Ω 10 kΩ Lines -10 dBV (316 mV) +10 dBV (3.16 V)RCA pin Jack
PHONES [L, R]100 Ω 40 Ω Lines 3mW75mWPhone Jack (TRS) PHONES [L, R]100 Ω 8 Ω/40 Ω Lines 1mW/3mW20mW/75mW Phone Jack (TRS)
SPEAKERS 0.1 Ω 4 Ω Speakers 125W 500W
spe
akON
Phone Jack *2
SPEAKER OUT 0.1 Ω 4 Ω Speakers 125W 500W
speakON
Phone Jack *2
*1 0 dBu is referenced to 0.775 Vrms. 0 dBV is referenced to 1 Vrms. *2 Phone Jacks are unbalanced.
]S
)3
XLR
Plug Types (not included in the EMX)
PhoneRCA pin Stereo mini speakON

Yamaha EMX5016CF Specifications
