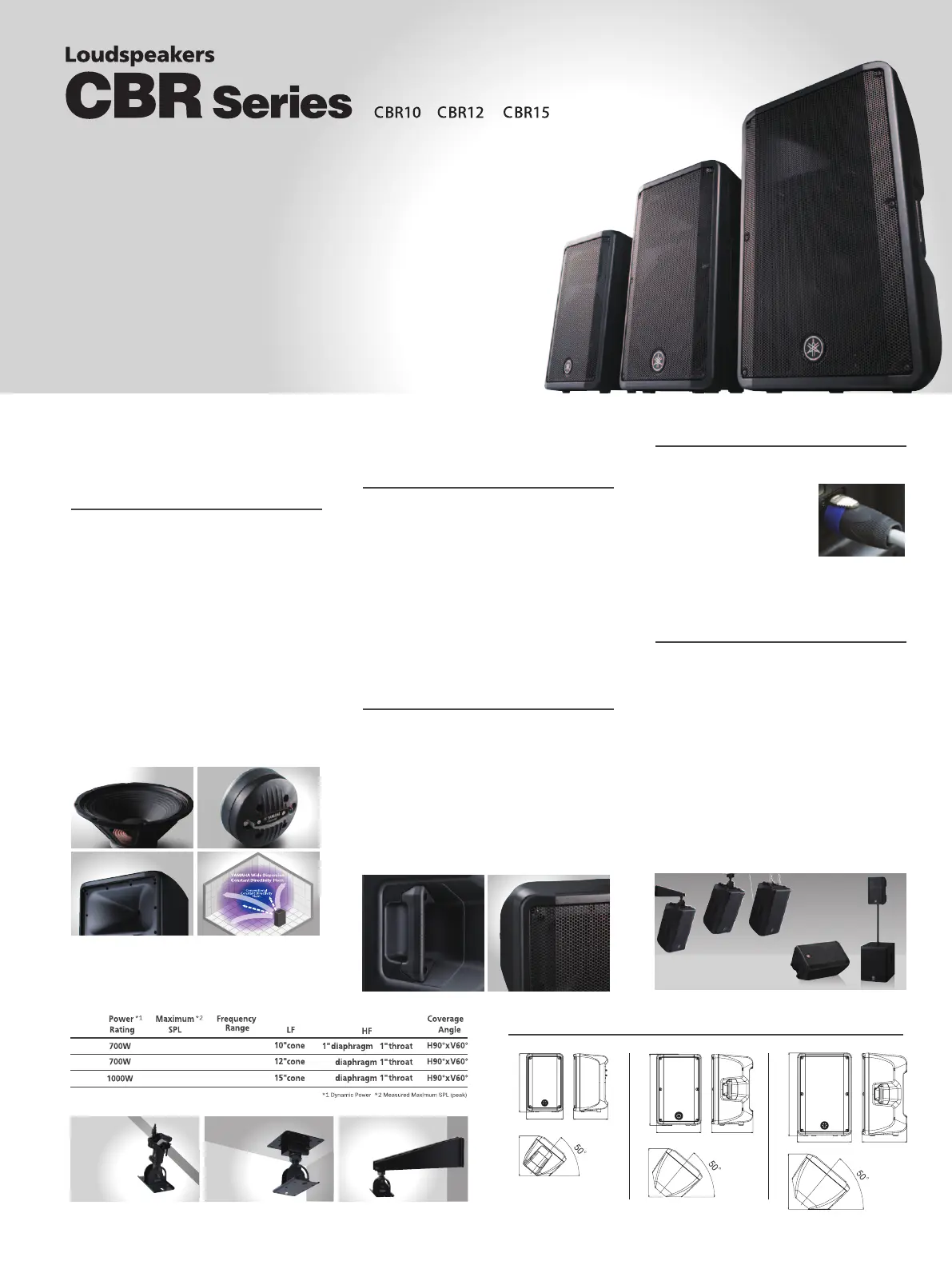

Yamaha EMX5016CF Manual

11
CBR10
CBR12
48Hz-20kHz
50Hz-20kHz
125dB SPL
123dB SPL
CBR15
46Hz-20kHz
126dB SPL
1.4"
1.4"
Custom Designed Transducers
and Wide-Dispersion Constant
Directivity Horn for Powerful
High-Definition Sound
CBR Series speakers come equipped with
customized transducers that feature a
highly responsive woofer and a precise 2.5"
compression driver (CBR15) or 2"
compression driver (CBR10 and CBR12),
ensuring consistent high-denition sound
even at high output levels. Additionally, a
newly designed wide-dispersion constant
directivity horn minimizes the radiation
pattern deterioration that more conventional
horns are prone to, allowing sound to
expand in a more evenly dispersed
rectangular pattern reaching the outer-most
edges of the coverage area.
Simple Connectivity
CBR Series speakers are equipped with one
speakON jack and one
1/4" Phone jack that
allow for fast and easy
connectivity in both
personal and professional
environments.
Rugged, Highly Portable
Enclosure Design
CBR Series speakers feature a very compact,
durable, and lightweight plastic cabinet
equipped with newly designed, ergonomic
handles that greatly minimize system transport
and setup. In addition, all CBR models feature
a sleek, steel front grille that seamlessly
blends in with installation aesthetics while
protecting the vital inner speaker components
from environmental hazards.
HF Protection and Highly
Responsive LF Unit for Reliable
Performance at Any Output Level
Have you ever blown your speakers by
cranking up the output levels beyond your
speakers capabilities? CBR Series speakers
employ a protection function that limits
excessive input to the HF unit. This valuable
protection circuit affords you worry-free
operation of your speakers when you need
them most. Combined with a highly responsive
LF unit, CBR Series speakers reliably deliver
clear, precise sound at any output level.
Versatility for a Wide Range
of Applications
■
Smart Enclosure Design for Floor Monitoring
The CBR Series speakers feature an
optimized 50° wedge angle for oor
monitoring. In addition, the CBR12 and
CBR15’s symmetrical shape allows for
effortless con guration of a mirror-mode
oor monitoring system for a larger and
more dened sweet spot.
■
Rigging Points for Installation Applications
CBR loudspeakers come equipped with
M8 rigging points, allowing for rigged
applications with optional speaker
brackets or standardized eye-bolts.
POWER TO PLAY
CBR Series passive loudspeakers were developed by adopting the
extensive knowledge of speaker design and acoustic technologies
that Yamaha has accrued over a storied history of making
speakers of every kind. The primary focus was to deliver
high-power, high-definition sound in a durable, portable design
that is equally at home in front-of-house, floor monitoring, or
rigged configurations. CBR speakers are ideally suited for use with
EMX powered mixers to complete a high-performance, yet easily
configured sound solution.
Dimensions
CBR10 CBR12 CBR15
289 (11 3/8)
493 (19 7/16)
601 (23 11/16)
700 (27 9/16) 464 (18 1/4)
408 (16 1/16)
336 (13 1/4)
308 (12 1/8)
376 (14 13/16) 348 (13 11/16)
378 (14 7/8)
455 (17 15/16)
Unit: mm (inch)
Optional Speaker Brackets (Sold Separately)
Baton Bracket
BBS251
Ceiling Bracket
BCS251
Wall Bracket
BWS251-300/400

Yamaha EMX5016CF Specifications

General

Channels quantity	16 channels
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	500 W
DJ mixer	-
Product color	Black
Video capability	No
Equalizer bands quantity	9
Total Harmonic Distortion (THD)	0.3 %

Weight and Dimensions

Depth	493 mm
Width	444 mm
Height	155 mm
Weight	11000 g
