1-29
OUTBOARD MOTOR DIMENSIONS

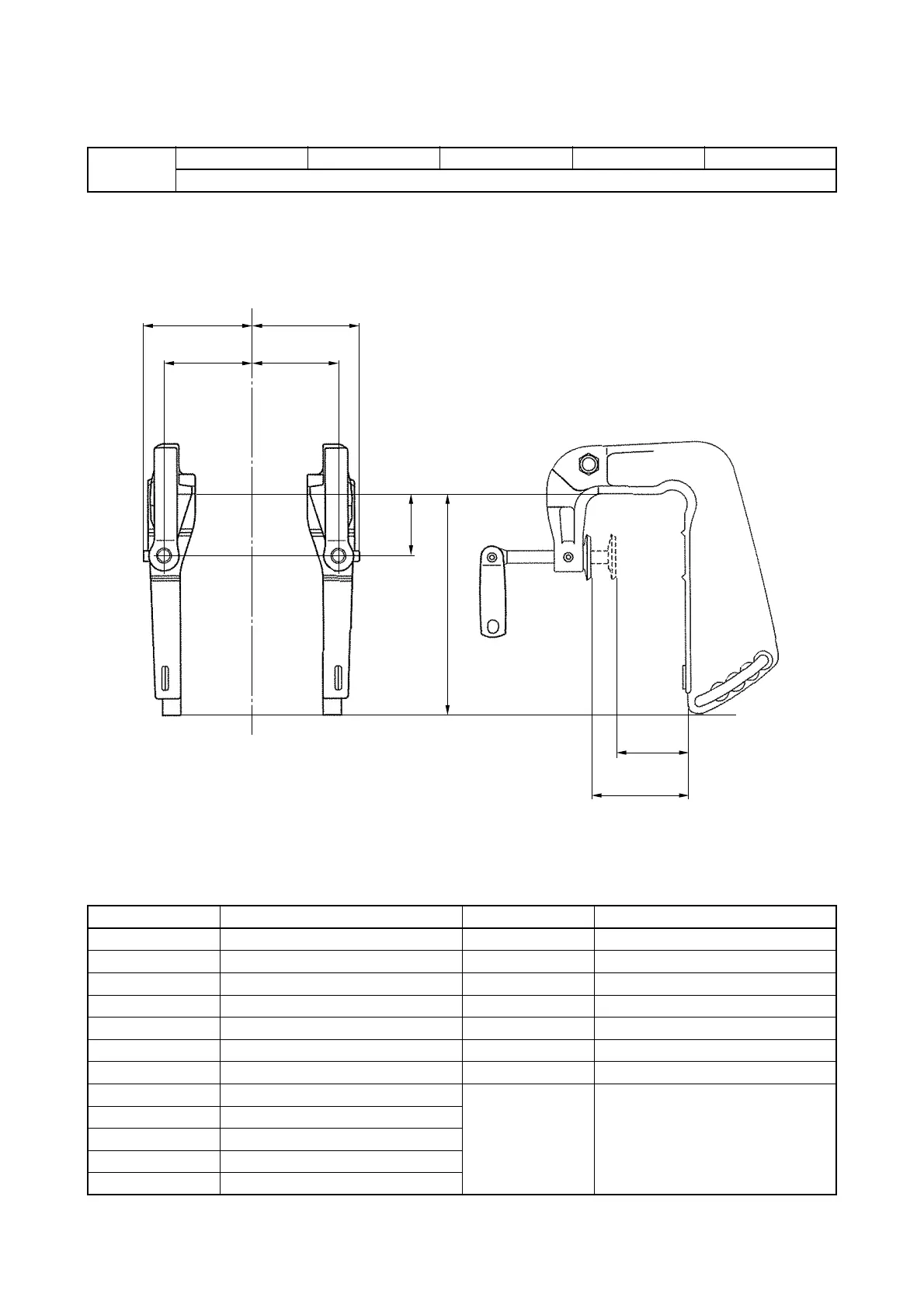

CLAMP BRACKET DIMENSIONS
Model
F2A F2.5A (F2.5)
Manual tilt
Symbol mm (in.) Symbol mm (in.)
B1 — C1 22 (0.9)
B2 — C2 58 (2.3)
B3 — C3 —
B4 — D1 —
B5 69 (2.7) D2 —
B6 143.7 (5.7) D3 —
B7 — D4 —
B8 —
B9 —
B10 —
B11 56 (2.2)
B12 40 (0.2)
B6
B12
B5
C/L
B5
B11
B11
C1
C2
