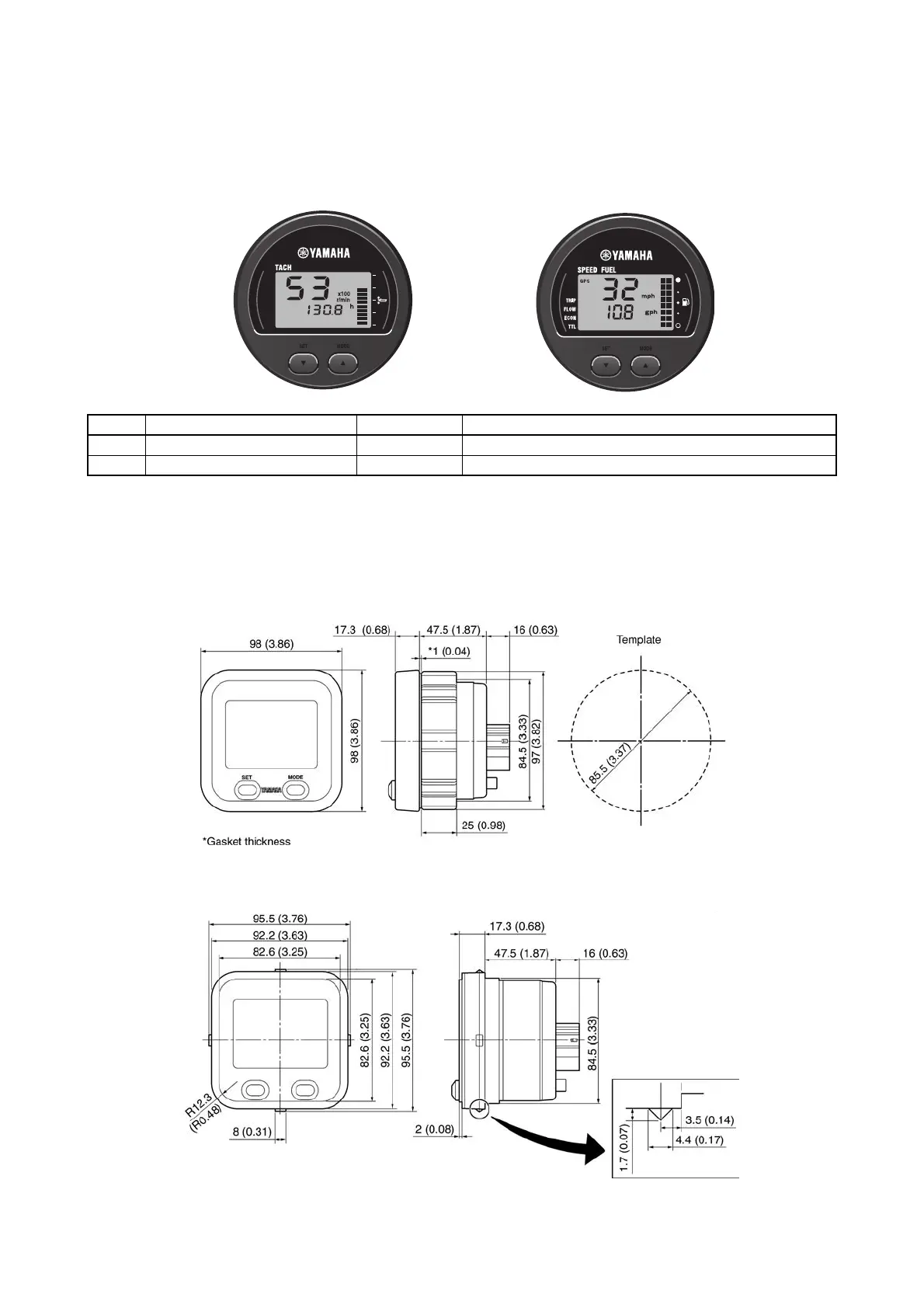

6-3
DIGITAL NETWORK GAUGE APPLICATION
ROUND STYLE GAUGE APPLICATION
Similar shape design as conv
entional 6Y5 digital gaug
es.
Compatible with both 6Y8 and 6Y9 networks.
DIGITAL NETWORK GAUGE DIMENSIONS
SQUARE STYLE G
AUGE DIMENSIONS
SURFACE MOUNT
FLUSH MOUNT
Re
f.
No.
Part name
Part No.
Remarks
1
Tachometer
6Y8-8350T-20
2
Speedometer and Fuel meter unit
6Y8-83500-20
Requires optional speed sensor,
or NMEA compatible GPS
12
mm (in.)
mm (in.)
216
218
