Yamaha F20BE - Wiring Diagram (for Us)

4-7
6X4 MULTI-FUNCTION TILLER HANDLE

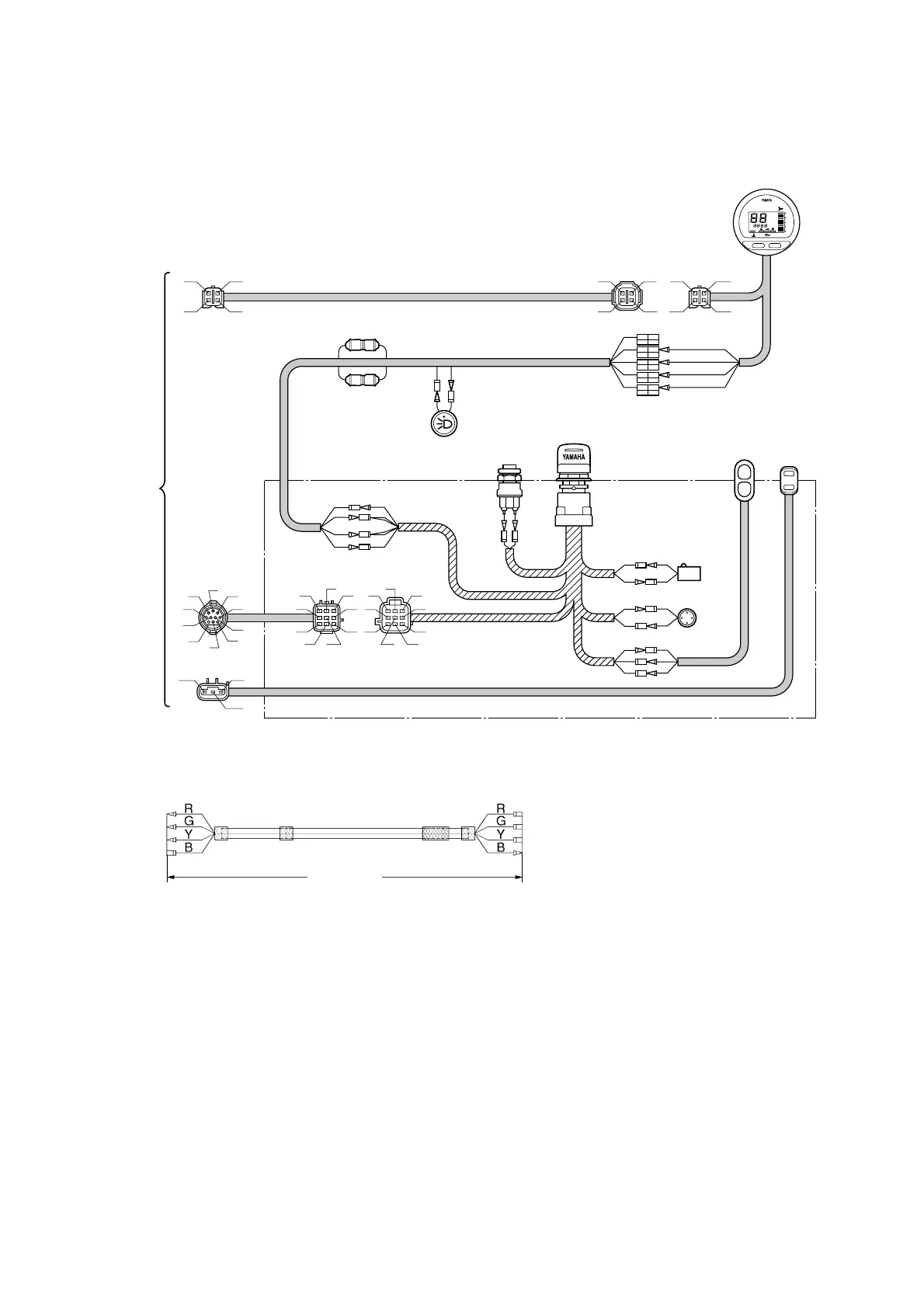

WIRING DIAGRAM (FOR US)
1
2
3
4
5
TACH
x 100
r/min
set mode
h
1.5 m (5 ft)
YL
YL
6Y5-83653-00 (5 m)
6Y5-83553-M0 (2.5 m)
Ignition
SW
Tachometer
6Y5-8350T-90
Neutral
SW
PTT
SW
Troll
RPM
SW
(*1)
Buzzer
Stop
SW
Tiller handle area
(*1) For fuel injected F50-F90.
(*2) 1.5 m (5 ft) extension wire-harness (6Y5-8356N-00) is available.
(*2)
R
Sb
Lg
P
Y
R
Sb
Lg
G
B
Y
L
R
Y
R
Y
B
R
Y
G
Br
Br
WB
B
R
R
Y
Y
G
R
G
B
Y
L
Y
Br P
W
Lg
B
G
R
Sb
Y
BrP
W
Lg
B
G
R
Sb
G
R
Lg
P
Br
B
Sb
W
Y
Gy
G
P
G/R
Gy
G/W
P
G/R
P
G/R
Gy
G
BW/L
O/W
To
ENGINE
