Yamaha F20BE - Digital Meter

5-36
(* 1) Select either speedometer or GPS (NMEA0183)
If GPS is connected, speed tube is not required.
(* 2) Water separator (Market obtainable)
(*1)
(*2)
Fuel tank
Speed hose (* 1)
OUT
IN
688-82520-00
6Y5-83553-F1 (8 m)
6Y5-83553-M0 (2.5 m)
6Y5-85752-02
6Y5-85721-F0
6Y5-87122-S0
68F-82553-50 (5 m)
-60 (6 m) -70 (7 m) -80 (8 m) -90 (9 m) -A0 (10.5 m)
6R3-85721-30 (3 m)
-50 (5 m) -80 (8 m)
6Y5-8350T-03
Engine Oil Tank
FUEL
SPEED
TACH
Remote
Oil Tank
GPS
NMEA
0183
(+)

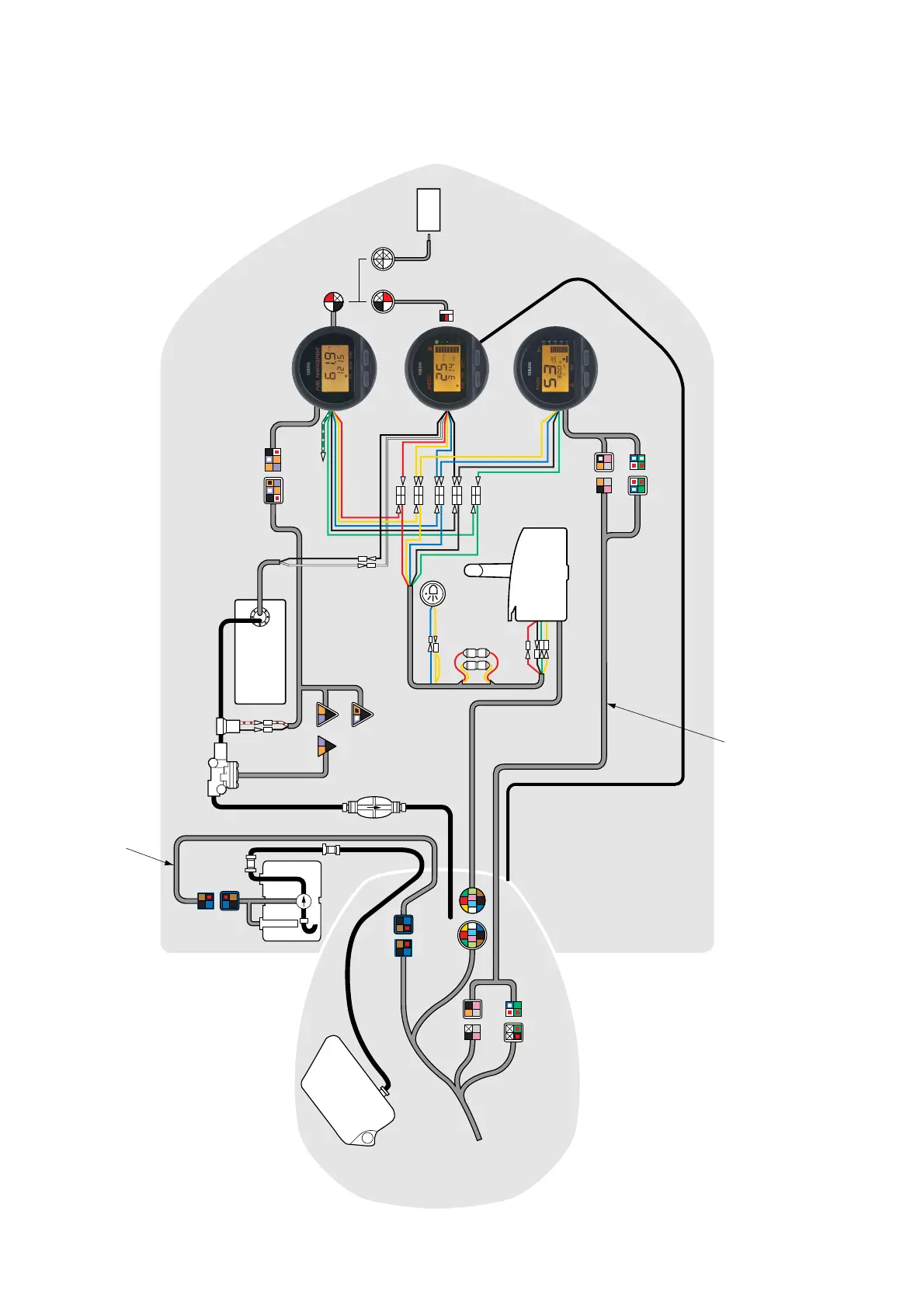

WIRING DIAGRAMS
DIGITAL METER
SINGLE-MOTOR
250G
