Yamaha F40 Installation Manual

103
E

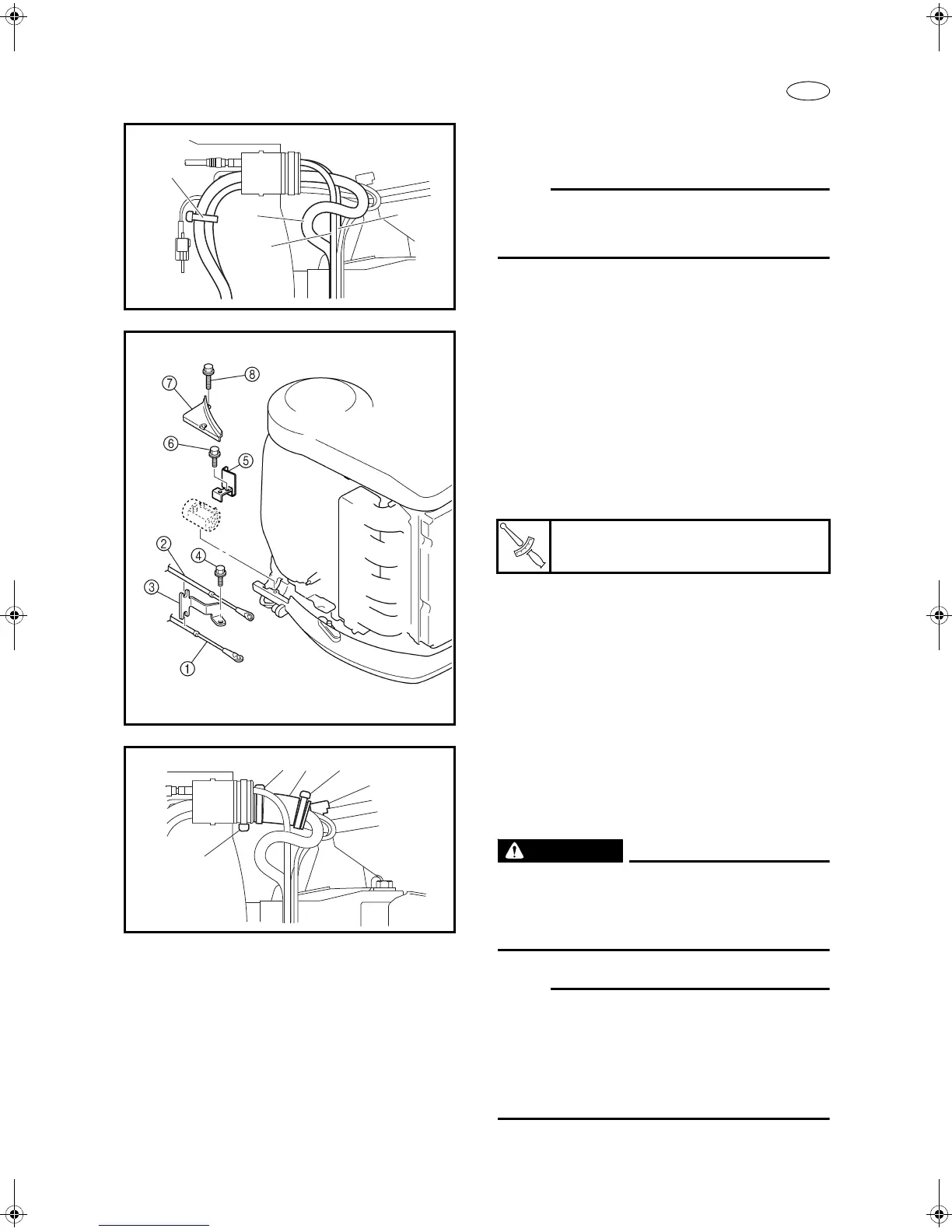

7. Fasten:
• Plastic tie 1
NOTE:
Route the wiring harness a by winding them
under and over the shift cable b and the throt-
tle cable c.
1
a
b
c
8. Install:
• Shift cable 1
• Throttle cable 2
• Cable clamp 3
•Bolt 4
• Hose locating plate 5
•Bolt 6
• Fitting plate 7
•Bolts 8
T
R
.
.
Bolt:
8.0 N • m (0.82 kgf • m, 5.9 ft • lb)
9. Install:
• Corrugated tube 1 (65 mm (2.6 in))
• Plastic ties 2
• Plastic tie 3
WARNING
Be sure to route and securely install the
fuel hose into the hose guide a. Check that
the fuel hose does not interfere with the
steering friction.
NOTE:
• Route the fuel hose, battery cable, wiring
harness, variable trolling RPM switch lead,
and warning indicator lead through the corru-
gated tube 1.
• Install the corrugated tube 1 near the grom-
met.
3
2
2
1
a
TillerHandle.book Page 103 Friday, April 12, 2013 3:19 PM

Yamaha F40 Specifications

General

Full Throttle RPM Range	5000 - 6000 rpm
Fuel Induction System	EFI (Electronic Fuel Injection)
Alternator Output	16 Amp
Starting System	Electric
Steering	Remote
Displacement	747 cc
Prop Shaft Horsepower	40 hp
Ignition System	TCI
Recommended Fuel	Regular unleaded gasoline (min 87 octane)
Recommended Engine Oil	Yamalube 4M
Gear Shift	F-N-R
Shaft Length	20 in.
Trim Method	Power Trim & Tilt
Exhaust	Through Propeller
