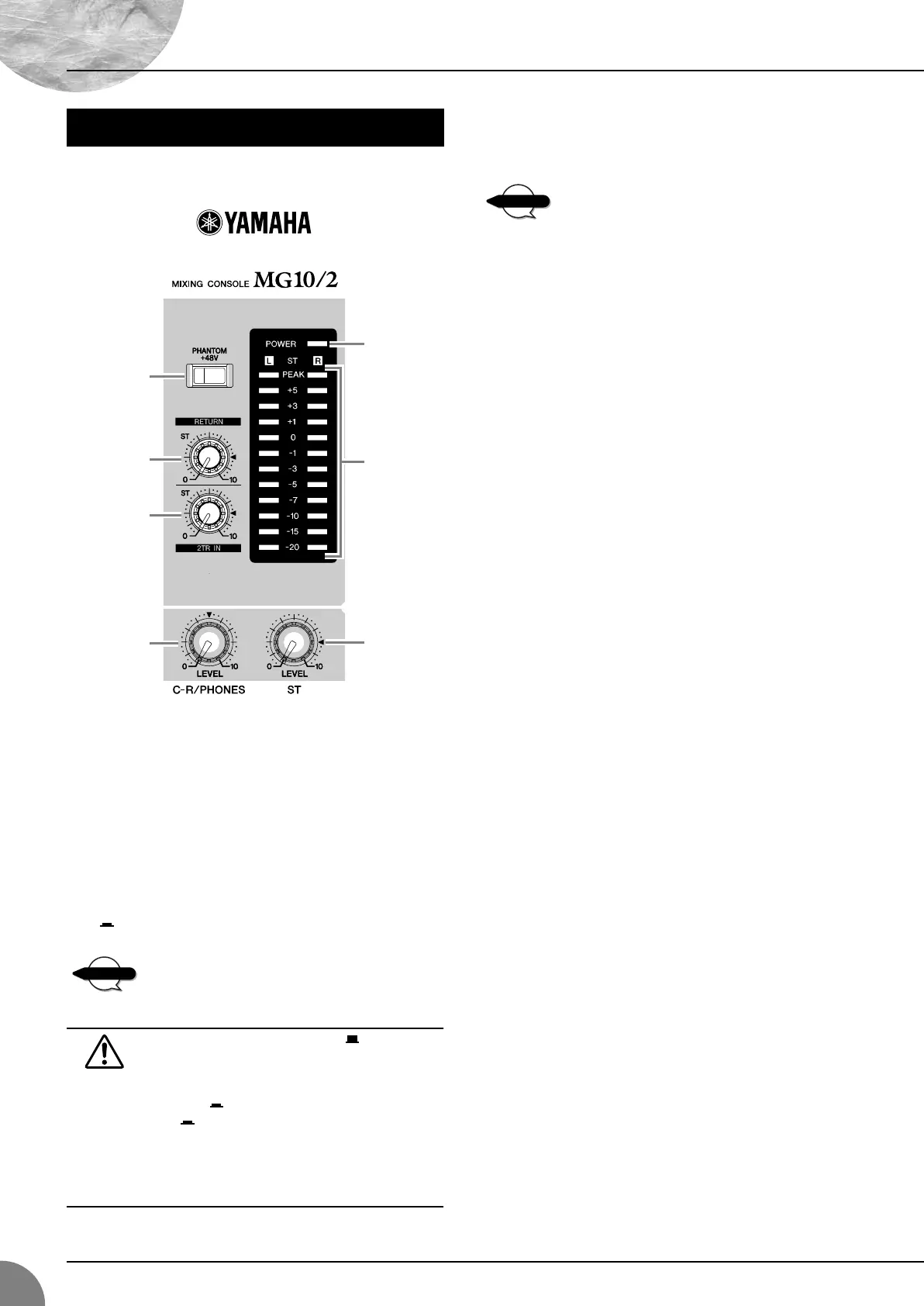

Front & Rear Panels
MG10/2
18
1
PHANTOM +48 V Switch
This switch toggles phantom power on and off. If you set the
switch on, the mixer supplies power to all channels that provide
XLR mic input jacks (CHs 1, 2, 3/4, 5/6). Set this switch on
() when using one or more condenser microphones.
When this switch is on, the mixer supplies DC +48 V
power to pins 2 and 3 of all XLR-type MIC INPUT
jacks.
• Be sure to leave this switch off ( ) when you are
not using phantom power. Humming or damage
may result if you connect to an unbalanced device
or to an ungrounded transformer while this switch
is on
()
. But note that the switch may be left on
()
without problem when connecting to bal-
anced dynamic microphones.
•To avoid damage to speakers, be sure to turn off
amplifiers (or powered speakers) before turning this
switch on or off.
2
RETURN Control
Adjusts the level of the signal sent from the RETURN jacks
(L (MONO) and R) to the Stereo bus.
If you supply a signal to the RETURN L (MONO)
jack only, the mixer outputs the identical signal to
both the L and R Stereo buses.
3
2TR IN Control
Adjusts the level of the signal sent from the 2TR IN jack to the
Stereo bus.
4
ST Master Fader
Adjusts the signal level to the ST OUT jacks.
5
C-R/PHONES Control
Controls the level of the signal output to the PHONES jack and
the C-R L and R jacks.
6
Level Meter
This LED display shows the level of the signal fed to the Stereo
bus. The “0” point corresponds to the standard output level.
The indicator lights up red when the output hits the clipping
level.
7
POWER Indicator
This indicator lights up when the mixer’s power is ON.
Master Control Section
1
7
6
4
2
3
5
