Yamaha MT-09 User Manual

Periodic maintenance and adjustment
9-18
9
EAU55645

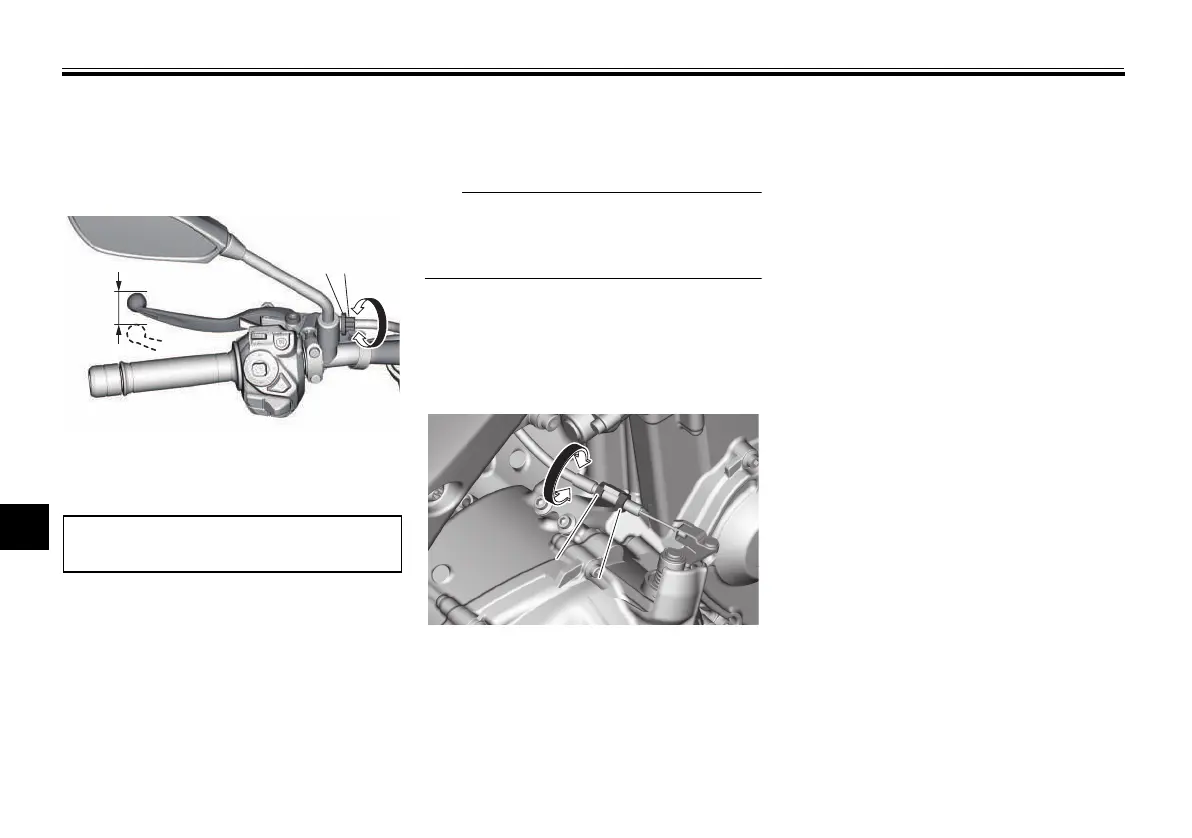

Adjusting the clutch lever free
play
Measure the clutch lever free play as
shown.
Periodically check the clutch lever free
play and, if necessary, adjust it as fol-
lows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the clutch lever free play
adjusting bolt in direction (a). To
decrease the clutch lever free
play, turn the adjusting bolt in di-
rection (b).
TIP
If the specified clutch lever free play
could be obtained as described above,
skip steps 3–6.
3. Fully turn the adjusting bolt at the
clutch lever in direction (a) to loos-
en the clutch cable.
4. Loosen the locknut at the crank-
case.
5. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free
play, turn the adjusting nut in di-
rection (b).
6. Tighten the locknut at the crank-
case.
7. Tighten the locknut at the clutch
lever.
1. Clutch lever free play adjusting bolt
2. Locknut (clutch lever)
3. Clutch lever free play
Clutch lever free play:
5.0–10.0 mm (0.20–0.39 in)
3
2 1
(a)(a)
(b)(b)
(a)
(b)
1. Locknut (crankcase)
2. Clutch lever free play adjusting nut
11
22
(b)(b)(b)
(a)(a)(a)
UBMEE0E0.book Page 18 Thursday, March 7, 2024 10:23 AM

Yamaha MT-09 Specifications

General

Displacement	889cc
Bore x Stroke	78.0 mm x 62.1 mm
Compression Ratio	11.5 : 1
Fuel System	Fuel Injection
Starter System	Electric
Transmission	6-speed
Final Drive	Chain
Frame	Diamond
Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve, inline-3 cylinder
Front Brake	Dual 298mm hydraulic discs
Rear Brake	Hydraulic disc, 245mm
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
Wheelbase	1, 430 mm (56.3 in)
Fuel Capacity	3.7 gal
Front Suspension	Inverted fork
