Instrument and control functions
6-45
6
When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
tions, however such adjustments
are ineffective and may damage
the suspension.

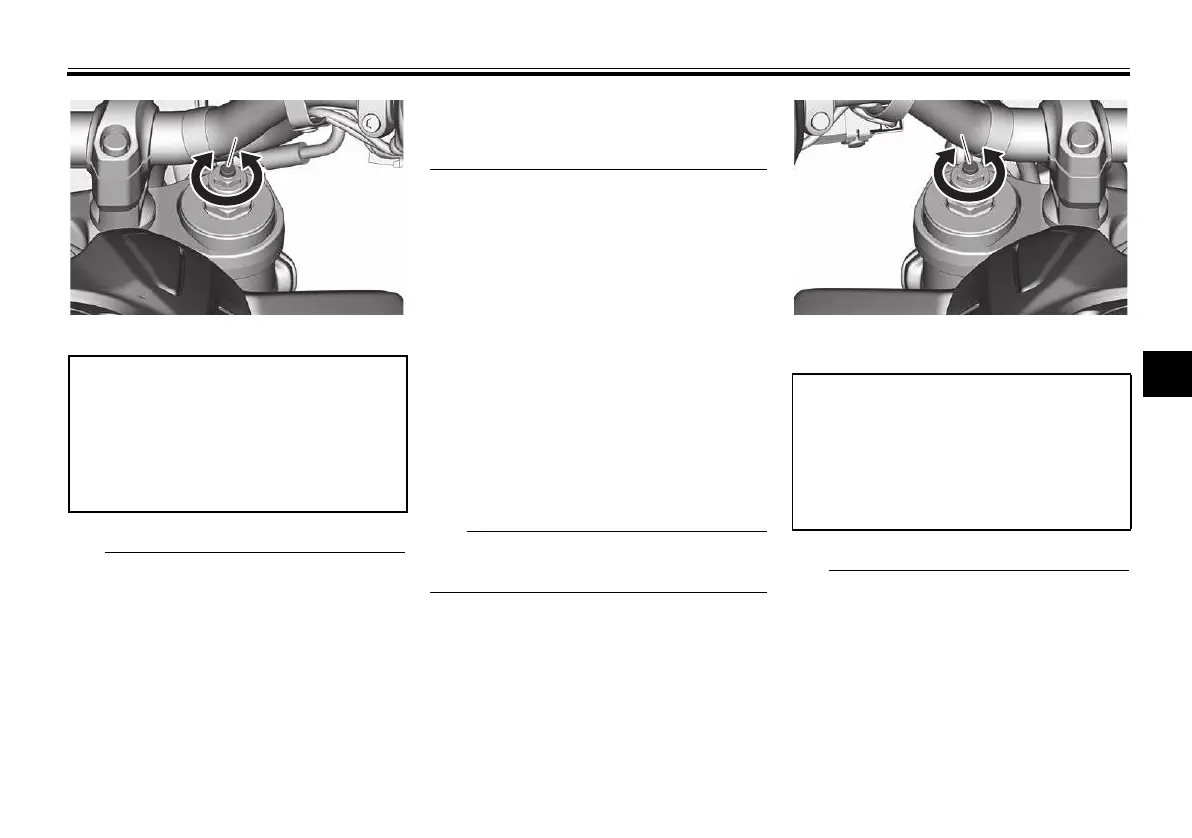

Compression damping force
The compression damping force is ad-
justed on the left fork leg only.
Turn the adjusting screw in direction (a)
to increase the compression damping
force.
Turn the adjusting screw in direction (b)
to decrease the compression damping
force.
To set the compression damping
force, turn the adjuster in direction (a)
until it stops, and then count the clicks
in direction (b).
Be sure to perform this adjustment on
the left fork leg.
When turning the damping force
adjuster in direction (a), the 0 click
position and the 1 click position
may be the same.
When turning the damping force
adjuster in direction (b), it may
click beyond the stated specifica-
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
11 click(s) in direction (b)
Standard:
6 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
1. Compression damping force adjusting
screw
Compression damping setting:
Minimum (soft):
11 click(s) in direction (b)
Standard:
6 click(s) in direction (b)
Maximum (hard):
1 click(s) in direction (b)
