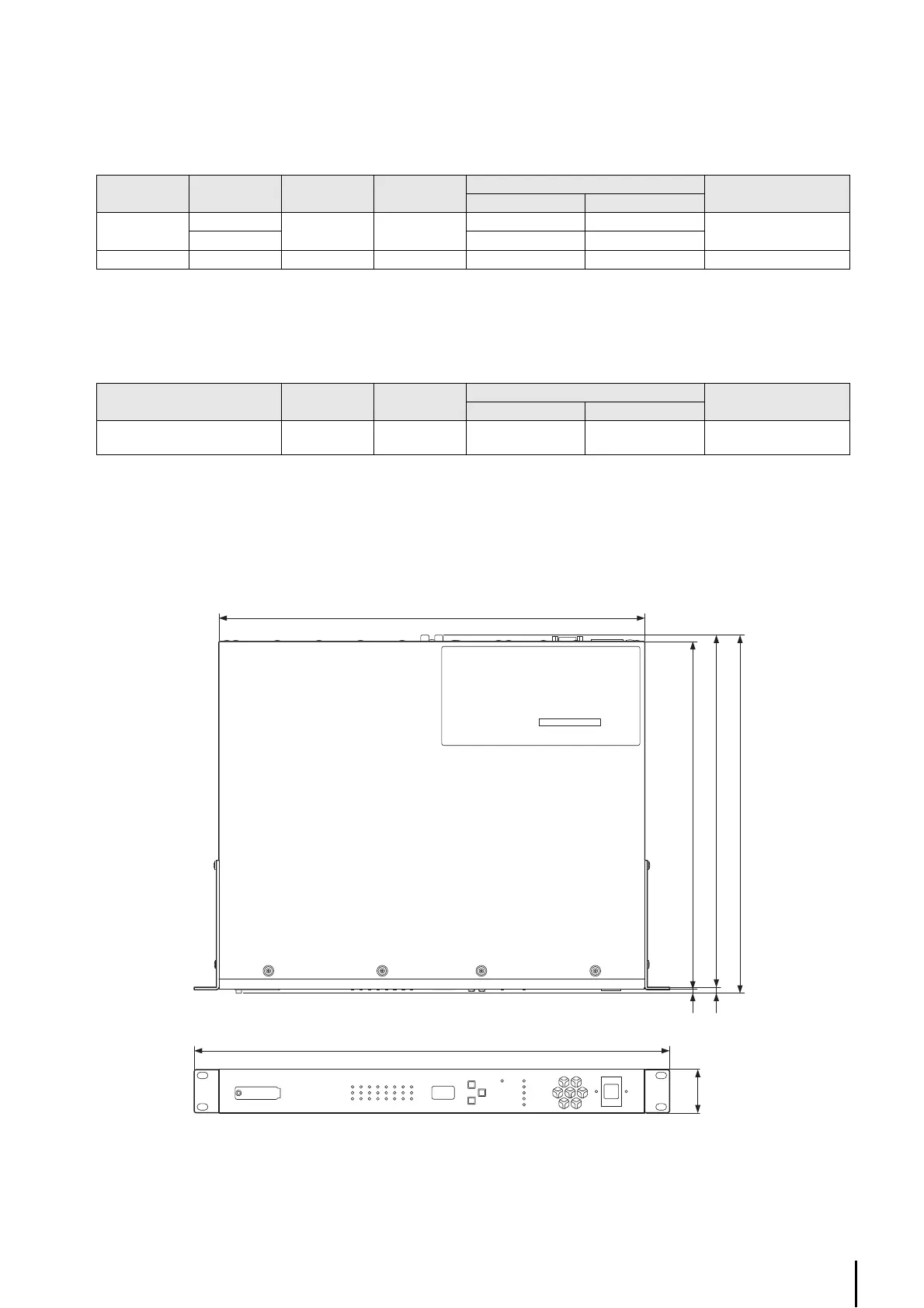

Input/Output Characteristics
ANALOG INPUT CHARACTERISTICS
• In these specifications, 0dBu = 0.775 Vrms., 0dBV = 1.00 Vrms.
• All input AD converters are 24bit linear, 128times oversampling.
• +48V DC (phantom power) is supplied to INPUT EUROBLOCK connectors via each individual software controlled switch.
ANALOG OUTPUT CHARACTERISTICS
• In these specifications, 0dBu = 0.775 Vrms.
• All output DA converters are 24bit, 128times oversampling.
Dimensions
Input
Terminals
GAIN
Actual Load
Impedance
For Use With
Nominal
Input Level
Connector
Nominal Max. before clip
INPUT 1–8
+66dB
10kΩ
50–600Ω Mics
& 600Ω Lines
-62dBu (0.616mV) -42dBu (6.16mV)
Euroblock (Balanced)
(5.08mm pitch)
-6dB +10dBu (2.45V) +30dBu (24.5V)
ST IN 1, 2 — 10kΩ 600Ω Lines -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack
Output Terminals
Actual Load
Impedance
For Use With
Nominal
Output Level
Connector
Nominal Max. before clip
OUTPUT 1–8 75Ω 10kΩ Lines +4dBu (1.23 V) +24dBu (12.3V)
Euroblock (Balanced)
(5.08mm pitch)
430
480
351
356
362
4
6
44
Unit: mm
