Yamaha NS-SW700 User Manual

CONNECTIONS
8 En
Select this method if your amplifier has no line output (pin jack) terminal(s).
If your amplifier has two sets of front speaker output terminals and both terminals can
output sound signals simultaneously.
• Connect one set of front speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and
connect the other set of front speaker output terminals of the amplifier to the front speakers.
• Set the amplifier so that both sets of front speaker output terminals output sound signals simultaneously.
Note
If your amplifier has only one set of front speaker output terminals, see page 9.

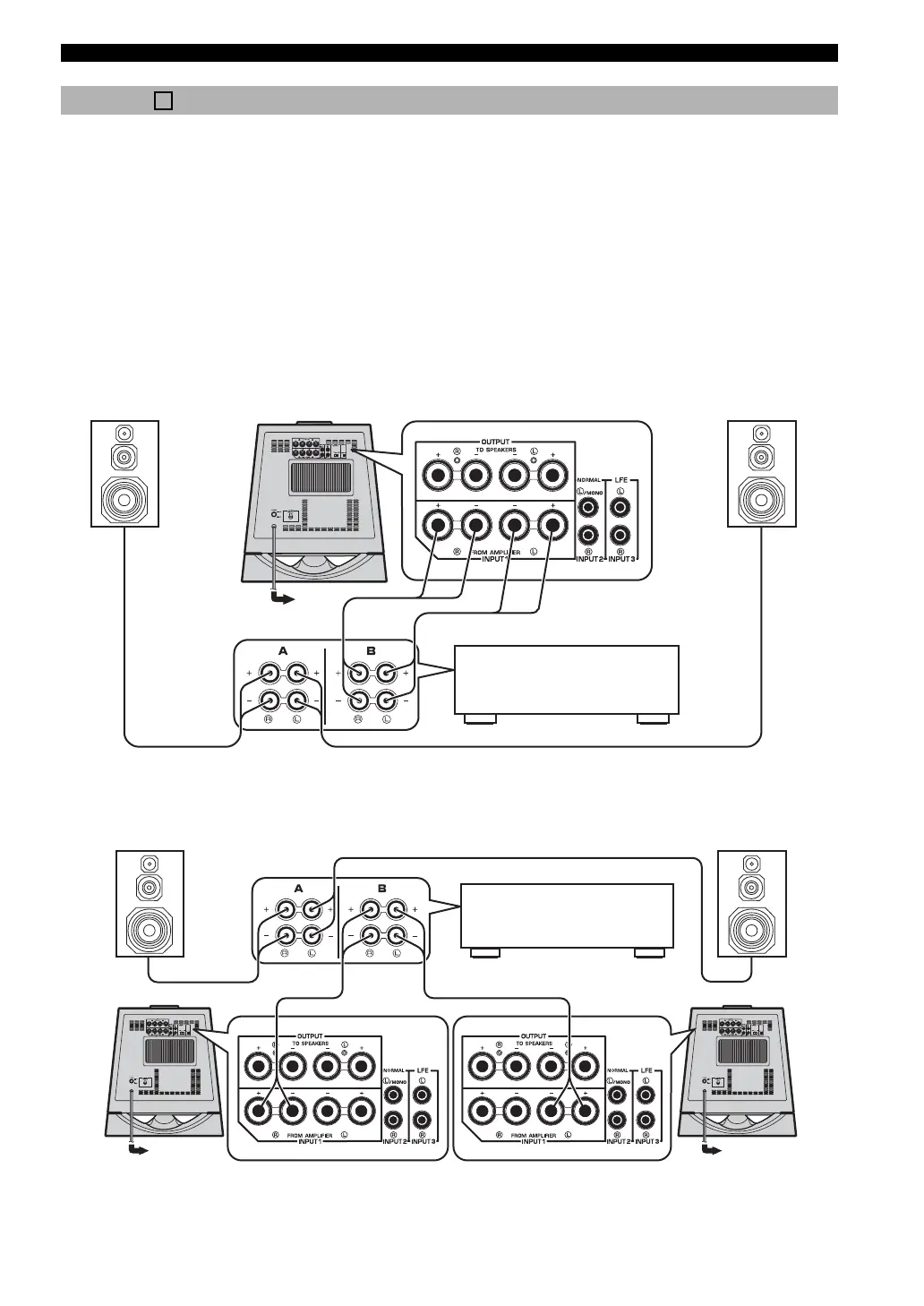

■ Using one subwoofer (with speaker cables)
■ Using two subwoofers (with speaker cables)
Connecting to speaker output terminals of the amplifier
2
Right front speaker Subwoofer
To AC outlet
Left front speaker
Amplifier
Speaker
output
terminals
Amplifier
Right front speaker
Left front speaker
Subwoofer
To AC outlet
To AC outlet
Subwoofer
Speaker
output
terminals

Yamaha NS-SW700 Specifications

General

Subwoofer type	Active subwoofer
Number of subwoofers	1
Subwoofer frequency range	20 - 160 Hz
Subwoofer driver diameter (imperial)	10 \
Phase control	Yes
Product color	White

Weight and Dimensions

Subwoofer width	406 mm
Subwoofer height	445 mm
Subwoofer weight	21000 g
