CONNECTIONS
10 En
For connection, keep the speaker cables as short as
possible. Do not bundle or roll the excess cabling. If the
connections are faulty, no sound will be heard from the
subwoofer or the speakers, or both. Make sure that the +
and – polarity markings of the speaker cables are observed
and connected correctly. If these cables are reversed, the
sound will be unnatural and lack bass.
Caution
Do not let the bare speaker wires touch each other, because
this could damage the subwoofer or the amplifier, or both of
them.

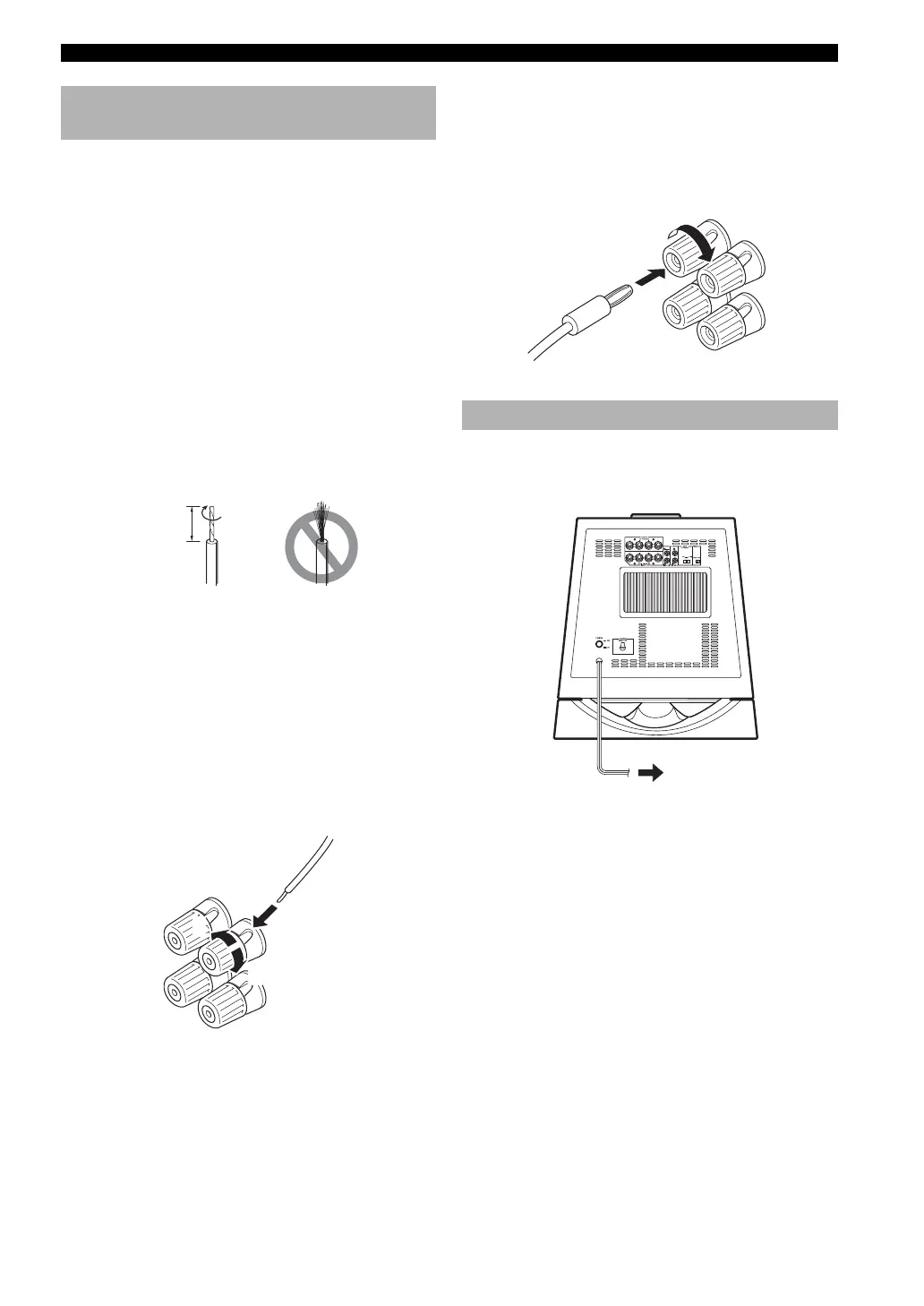

■ Before connecting
Remove 10 mm (3/8”) of insulation from the ends of the
speaker cables.
■ How to connect
1 Loosen the terminal’s knob, as shown in the figure.
2 Insert the bare wire.
3 Tighten the knob.
4 Test the firmness of the connection by pulling lightly
on the cable at the terminal.
U.S.A., Canada and Australia models only
Banana Plug connections are also possible.
1 Tighten the terminal knob.
2 Simply insert the banana plug into the terminal
After all connections are completed, plug the subwoofer
and other audio/video components into AC outlets.
Connecting to the INPUT1/OUTPUT
terminals of the subwoofer
Good No Good
10 mm
(3/8 ”)
2
1
3
Red: positive (+)
Black: negative (
–)
Plug in the subwoofer to the AC outlet
2
1
To AC outlet
To Next Page
