Yamaha QL Series Supplementary Manual

I/O devices and external head amps
V5.1 Supplementary Manual
3
I/O devices and external head amps
Now supports various Dante devices such as digital wireless receivers, processors, and more
from third-party partners, plus NEXO and Yamaha.
• Sony DWR-R03D DWX Digital Wireless Receiver
• Stagetec NEXUS(XDIP) Multichannel I/O Board
• NEXO NXAMPmk2 Powered TD Controller
• Yamaha DZR-D series Powered Loudspeakers
DXS XLF-D series Powered Subwoofers
MRX/MTX series Signal Processors
Added supported devices

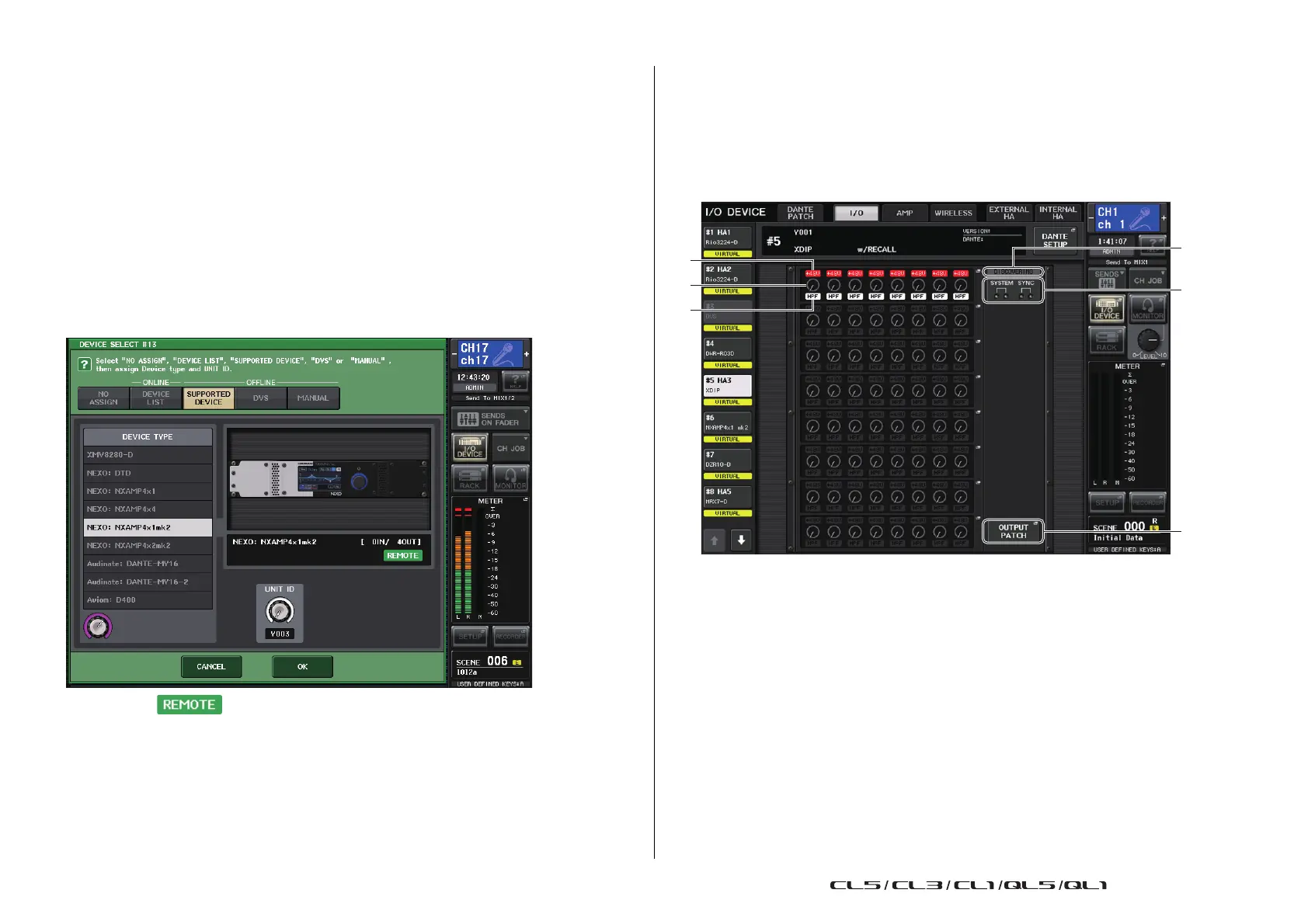

The devices can be mounted on the DEVICE MOUNT page in the DANTE SETUP window.
The indicator ( ) appears in the remote control supported device.
The NXAMPmk2 supports remote control with the Dante card (NXDT104mk2).
Remotely controlling an external head amp
Now supports the HA remote controllable devices.
• Stagetec NEXUS(XDIP) Multichannel I/O Board
• Yamaha MRX/MTX series Signal Processors
I/O DEVICE screen (I/O page)
1 +48V indicator
Indicates the phantom power (+48V) on/off status for each port.
2 GAIN knob
Indicates the gain of the head amp on the I/O device. This screen is only for display; the
value cannot be edited.
3 HPF indicator
Indicates the high-pass filter on or off status for each port.
4 Control status indicator
Indicates the control status of the device.
5 SYSTEM/SYNC indicators
Displays the error, warning, and information messages of the Dante device.
6 OUTPUT PATCH button
Appears when selecting a device (for I/O DEVICE) having a large number of channels.
Touch to open the OUTPUT PATCH window.
1
2
3
6
5
4
