Yamaha QL Series Supplementary Manual

I/O devices and external head amps
V5.1 Supplementary Manual
7
Remotely controlling an amp
Now supports the remote controllable devices.
• NEXO NXAMPmk2 Powered TD Controller
• Yamaha DZR- D series Powered Loudspeakers
DXS XLF-D series Powered Subwoofers

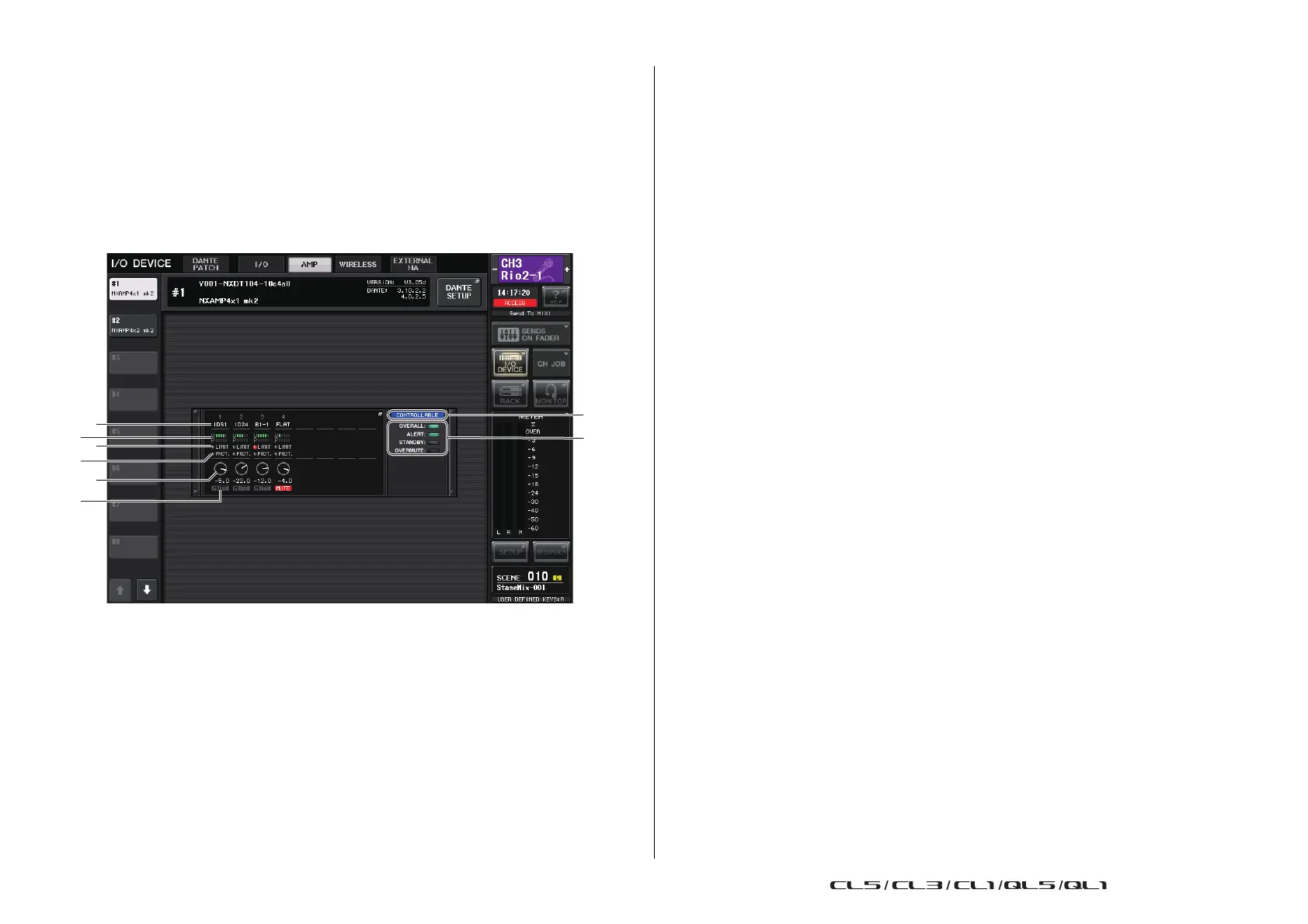

I/O DEVICE screen (AMP page)
 For NEXO NXAMPmk2
1
Channel name
Displays the channel name (the speaker preset name for the NXAMP).
2 Output level meter
Displays the level of Voltage (amplifier output) and the level of Protect (gain reduction).
3 LIMIT status indicator
Lights when the limiter for amplifier protection is applied.
4 PROTECT status indicator
Lights when the limiter for speaker protection is applied.
5 VOLUME setting value
Displays the volume.
6 MUTE indicator
Indicates the currently set mute status.
7 Control status indicator
Indicates the control status of the device.
8 Device status indicator
Indicates the status of the device.
1
2
4
3
6
5
8
7
