Yamaha QL1 User Manual

107
QL5/QL1

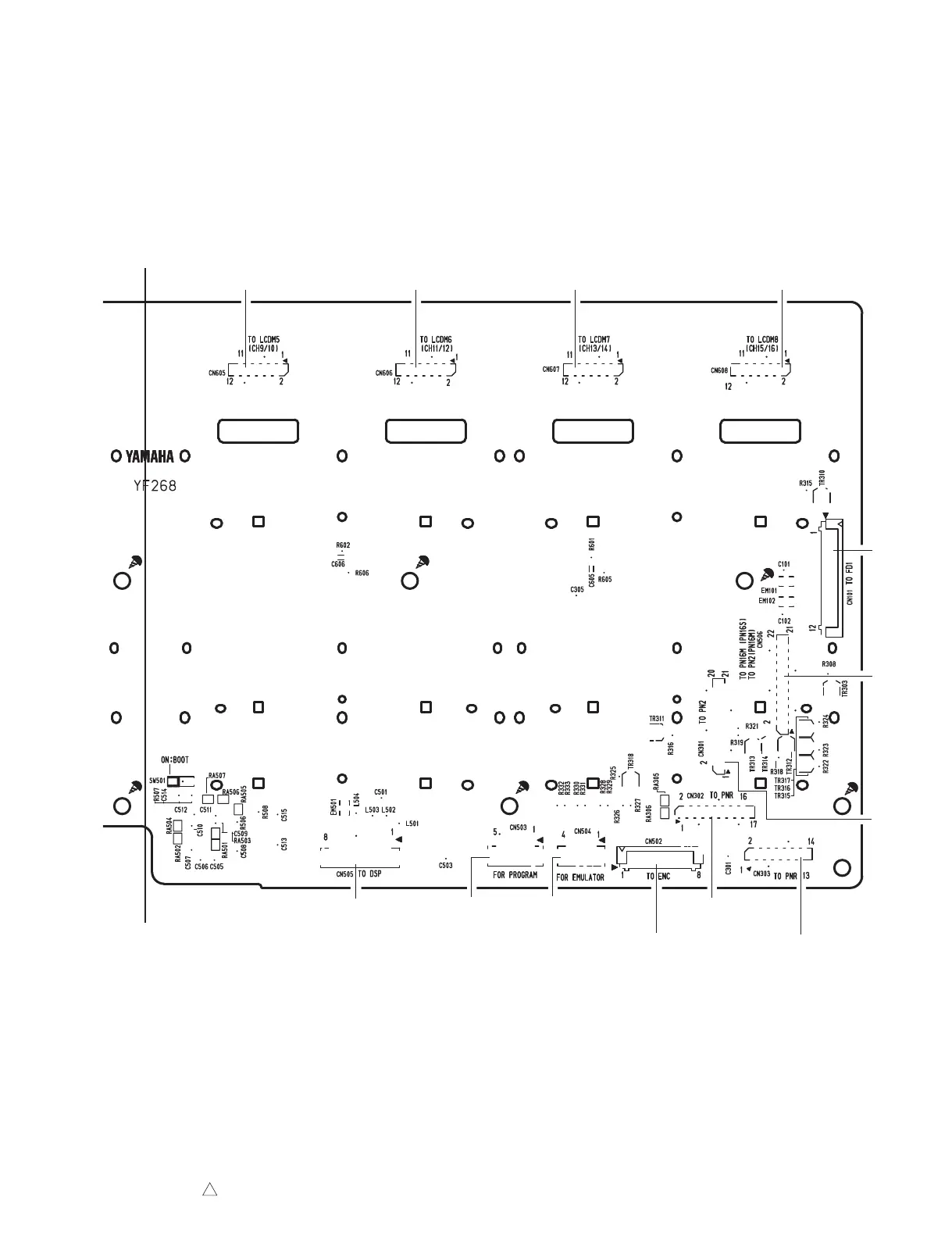

Pattern side
（パターン側）
2NA-ZF60450
1
PN16M: to FD1M-CN001 PN16S: to FD2-CN001(QL5)
PN16M: to PN2-CN301 PN16S: not installed
PN16M: to PNR-CN202
PN16S: not installed
PN16M: to PNR-CN201
PN16S: not installed
PN16M: to ENC-CN401
PN16S: not installed
to DSP32-CN603 (QL5)
to DSP16-CN603 (QL1)
PN16M: to PN2-CN302 PN16S: to PN16M-CN501
not installednot installed
to CRYSTAL DISPLAY
 （液晶ディスプレイ）
to CRYSTAL DISPLAY
 （液晶ディスプレイ）
to CRYSTAL DISPLAY
 （液晶ディスプレイ）
to CRYSTAL DISPLAY
 （液晶ディスプレイ）
PN16S: CH15/16
PN16M: CH31/32 (QL5)
CH15/16 (QL1)
PN16S: CH9/10
PN16M: CH25/26 (QL5)
CH9/10 (QL1)
PN16S: CH11/12
PN16M: CH27/28 (QL5)
CH11/12 (QL1)
PN16S: CH13/14
PN16M: CH29/30 (QL5)
CH13/14 (QL1)
G
G’
Scale: 90/100

Yamaha QL1 Specifications

General

Channels quantity	40 channels
Digital sound processing	- bit
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	135 W
Product color	Black
Rack mounting	Yes
Video capability	-
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	562 mm
Width	468 mm
Height	272 mm
Weight	14700 g
