Yamaha QL1 User Manual

QL5/QL1
157
TOUCH SCREEN CALIBRATION
1) While holding down the
B [SEL]
key, turn on the power switch, and the Special Mode Screen will appear, where INITIALIZE,
TRIM, CALIBRATION, etc. are executed.

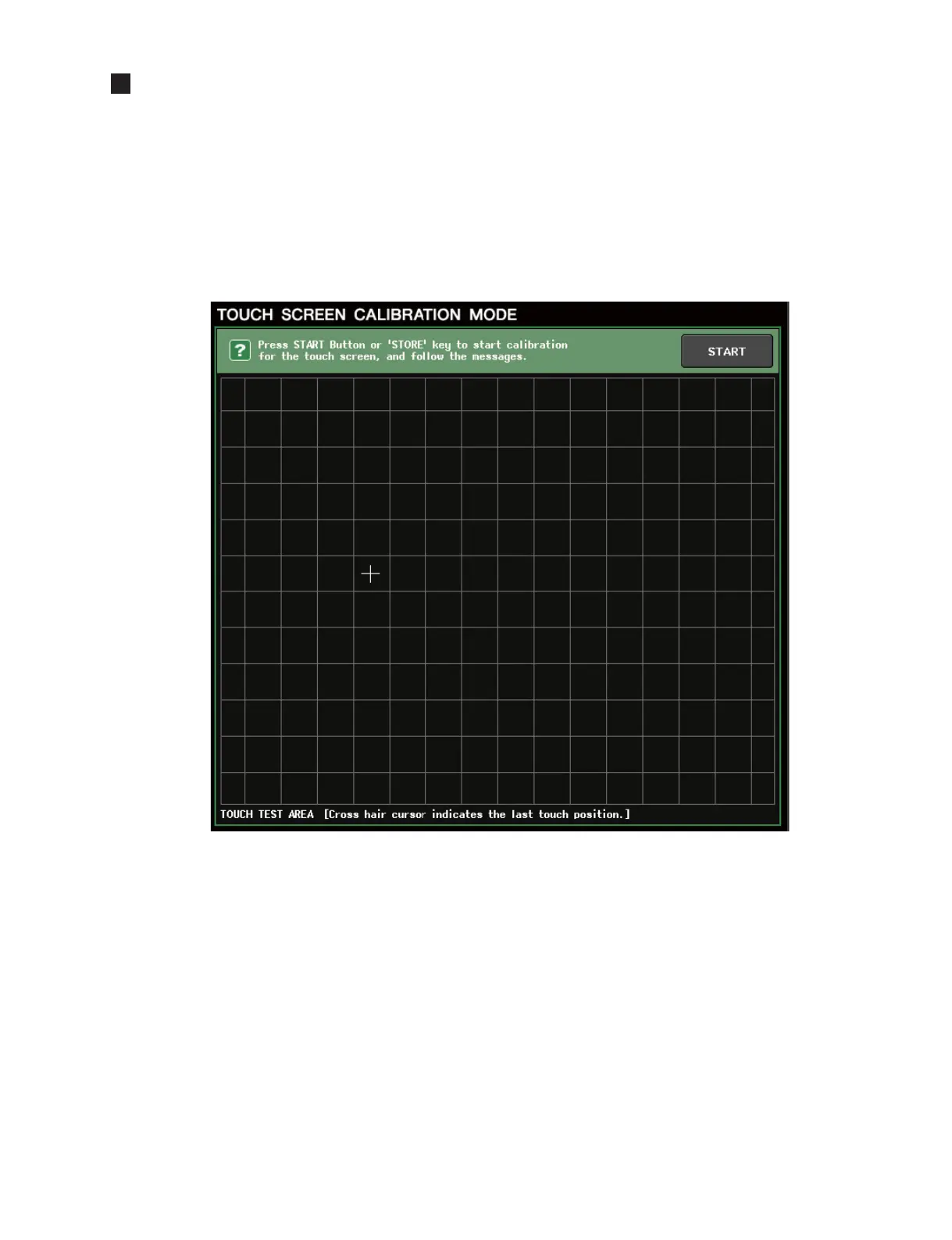

2) Among MODE SELECT buttons, touch
[TOUCH SCREEN CALIBRATION]
, and the touch screen window will appear. Then
touch the
[START]
button.
* If the above window does not appear, press the
FADER BANK [B1]/[B2]
key to select
[TOUCH SCREEN CALIBRATION]
and press the
[B4]
key to start.
3) As a confi rmation message will appear, touch the
[OK]
button.
4) As a cross cursor appears in the screen 3 times in total, touch to match their positions.
* For accurate adjustment, touch the cross cursor at such position and in such posture used usually for operation.

Yamaha QL1 Specifications

General

Channels quantity	40 channels
Digital sound processing	- bit
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	135 W
Product color	Black
Rack mounting	Yes
Video capability	-
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	562 mm
Width	468 mm
Height	272 mm
Weight	14700 g
