Yamaha RX-V320 - Internal View

4
RX-V320
21.5
(7/8")
435(17-1/8")
349.5(13-3/4")
390.5(15-3/8")
130(5-3/32")
151(5-15/16")
19.5
(13/16")
21
(27/32")

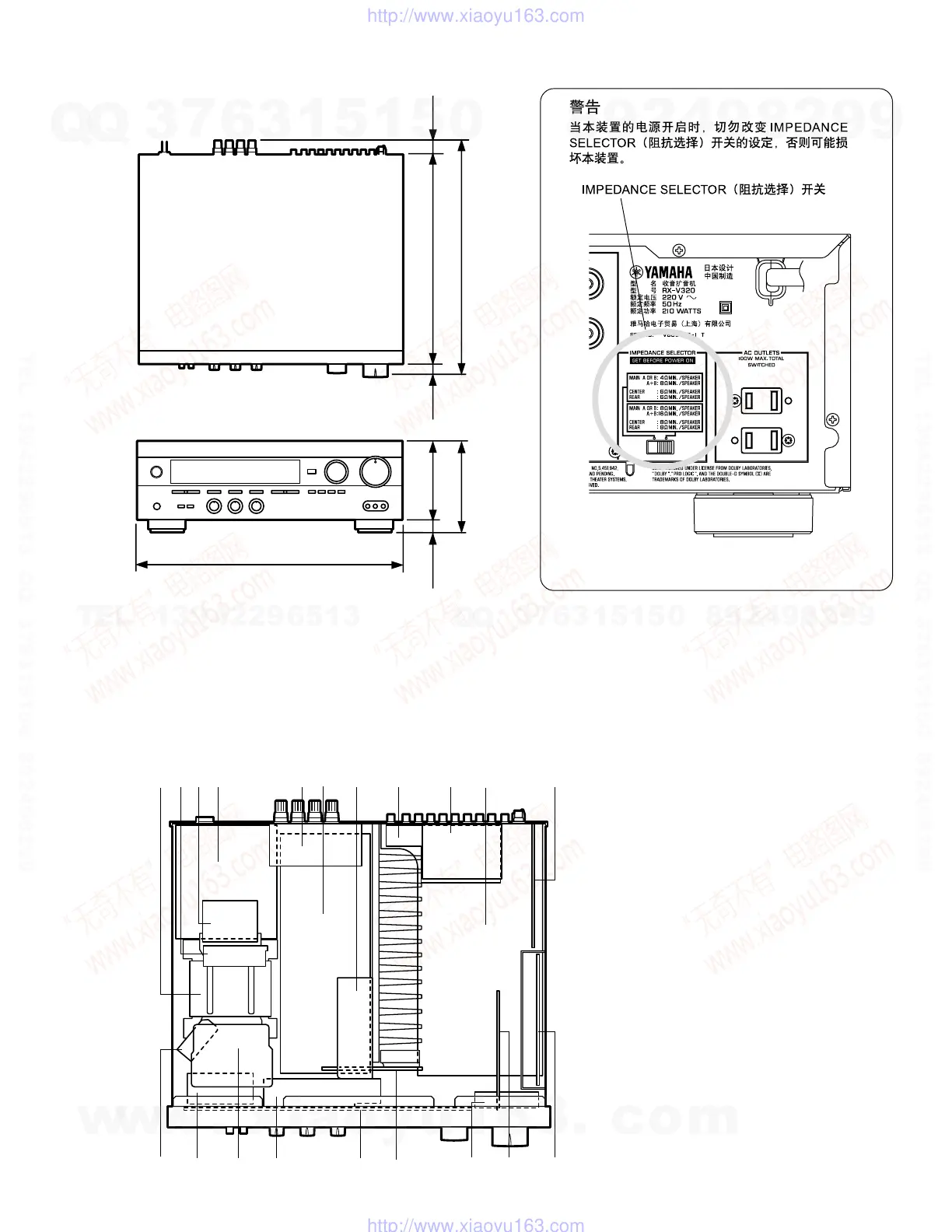

● DIMENSIONS
Unit : mm (inch)
q POWER TRANSFORMER
w P.C.B. MAIN (6)
e P.C.B. MAIN (5)
r P.C.B. MAIN (2)
t P.C.B. MAIN (3)
y P.C.B. MAIN (1)
u P.C.B. OPERATION (5)
i P.C.B. OPERATION (6)
o P.C.B. INPUT (3)
!0 P.C.B. INPUT (1)
!1 P.C.B. TUNER
!2 P.C.B. OPERATION (7)
!3 P.C.B. MAIN (4)
!4 P.C.B. INPUT (2)
!5 P.C.B. OPERATION (2)
!6 P.C.B. OPERATION (1)
!7 P.C.B. OPERATION (4)
!8 P.C.B. OPERATION (3)
!9 P.C.B. INPUT (4)
@0 P.C.B. DSP
!1!0oiuytrewq
@0!9!8!7!6!5!3
!4!2
■ INTERNAL VIEW
