Yamaha RX-V350 Service Manual

RX-V350/HTR-5730
22
RX-V350/HTR-5730
Digital
Analog
A/D
DIR
Main DSP Sub DSP
AD L/R
L/R
LS/RS
C/-
C/SW
SL/SR
L/R
DPL/PLII
decode
C
SL/SR
L/R
Sp Config
4Mbit DRAM

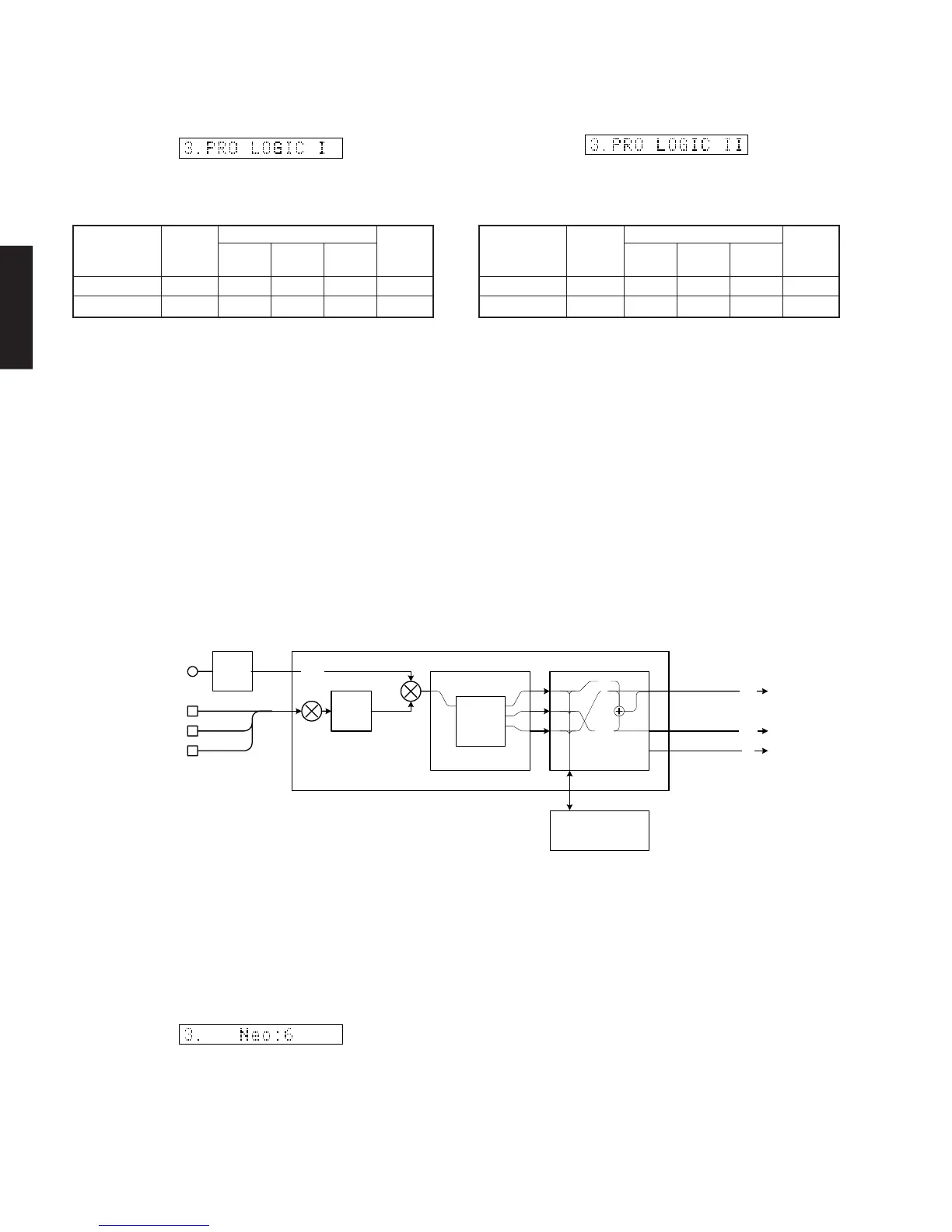

3. PRO LOGIC
PRO LOGIC II
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
PRO LOGIC I
Dolby Pro Logic (Auto)
(Shaded items not used in this example)
The L/C/R/SL/SR signals undergo the Pro-Logic
processing and C/SL/SR signals are output through Sub
DSP-DRAM. The Main DSP is selected for FRONT L/R
output.
Using the sub-menu, it is possible to select PRO LOGIC I,
II (Movie). The Auto Input Balance function is always off.
When the Dolby Digital Multi input is used, the function is
the same as in the Dolby Digital Normal mode.
The LFE signal is not output when decoding in the PRO
LOGIC I, II mode.
Neo:6
(Not applied to these models.)
SPEAKER OUTPUT
(
1kHz
)
SUBWOOFER
Input level Volume FRONT
CENTER SL/SR
OUTPUT
L/R (50Hz)
Each ch, -20 dBm +6.0 dB +11.5 dBm - ∞ - ∞ -10.5 dBm
Both ch, -20 dBm
+6.0 dB - ∞ +14.5 dBm - ∞ - ∞
SPEAKER OUTPUT
(
1kHz
)
SUBWOOFER
Input level Volume FRONT
CENTER SL/SR
OUTPUT
L/R (50Hz)
Each ch, -20 dBm +6.0 dB +11.5 dBm - ∞ - ∞ -10.5 dBm
Both ch, -20 dBm
+6.0 dB - ∞ +14.5 dBm - ∞ - ∞

Yamaha RX-V350 Specifications

General

Channels	5.1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Impedance	6 ohms
Type	AV Receiver
Input Sensitivity	200 mV
Signal-To-Noise Ratio	100 dB
Total Harmonic Distortion	0.06%
Frequency Response	10Hz - 100kHz
Amplifier Type	Discrete
Power Output	100W per channel
Outputs	1 x Audio, 1 x Video
Surround Sound Formats	Dolby Digital, Dolby Pro Logic II, DTS
Input Impedance	47 kOhms
Audio Inputs/Outputs	RCA
Digital Audio Inputs	2 (1 x Optical, 1 x Coaxial)
Video Inputs/Outputs	Composite
