Yamaha RX-V620 - Internal View

RX-V620/HTR-5460/RX-V620RDS
RX-V620/HTR-5460
RX-V620RDS

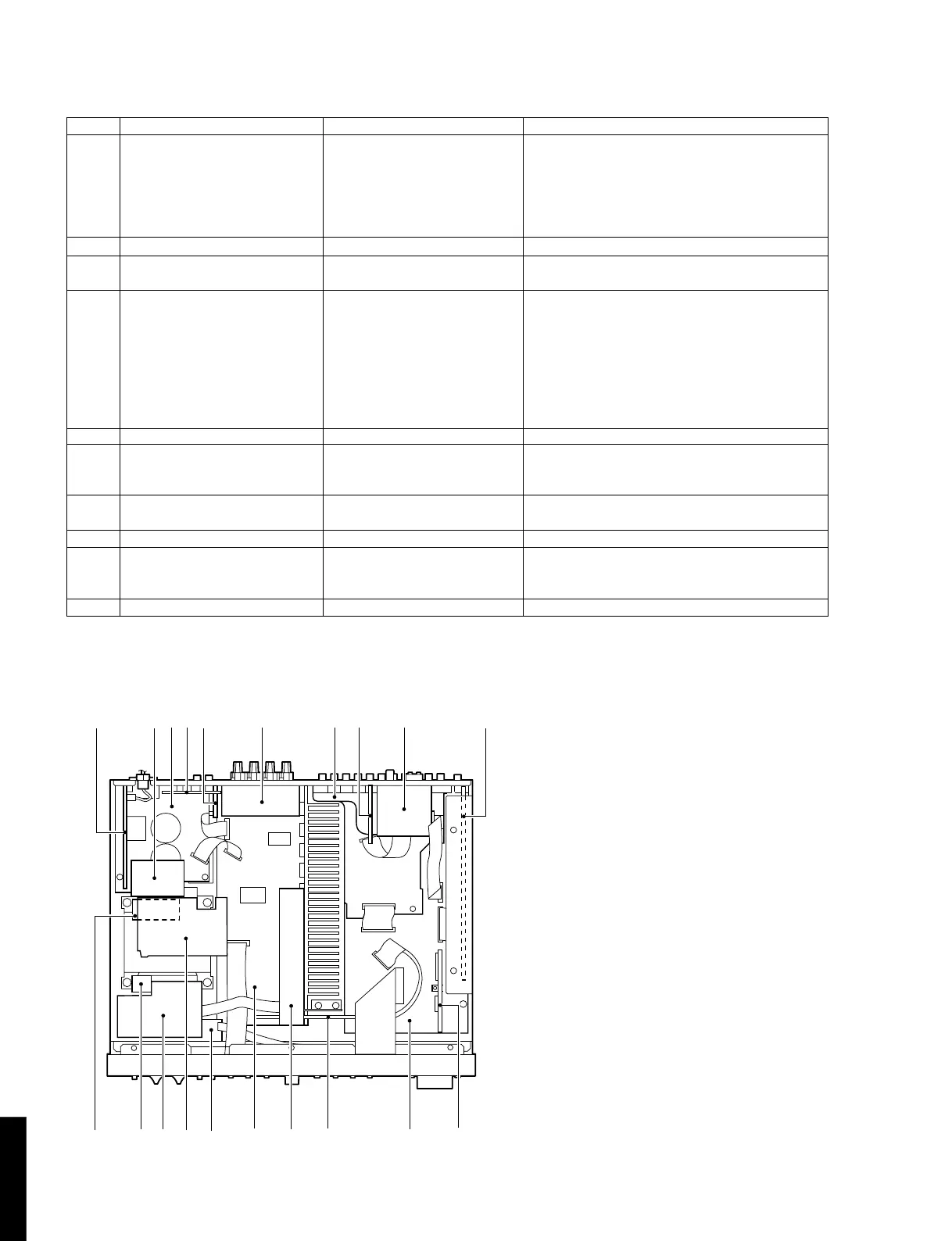

● SET MENU TABLE
No. SET MENU PRESET VALUE SETTING RANGES
1. SPEAKER SET
1A CENTER SPEAKER LARGE LARGE/SMALL/NONE
1B MAIN SPEAKER LARGE LARGE/SMALL
1C REAR L/R SPEAKER LARGE LARGE/SMALL/NONE
1D LFE/BASS OUT BOTH SUBWOOFER/MAIN/BOTH
1E MAIN LEVEL NORMAL NORMAL/–10dB
2. L/R BALANCE 0 L — 0 — R (0.5 step) (L/R 10.0)
3. HP TONE CTRL BASS : 0dB –6dB — +3dB (1dB step)
TREBLE : 0dB –6dB — +3dB
4. I/O ASSIGNING
4A COMPONENT VIDEO INPUT [A] : DVD DVD, D-TV/CBL, VCR1, VCR2/DVR, V-AUX
[B] : D-TV/CBL D-TV/CBL, VCR1, VCR2/DVR, V-AUX
4B OPTICAL OUT (1) : MD/CD-R DVD, MD/CD-R, D-TV/CBL, VCR1, VCR2/DVR, V-AUX, PHONO, CD
4C OPTICAL IN (2) : MD/CD-R CD, MD/CD-R, DVD, D-TV/CBL, VCR1, VCR2/DVR, PHONO
(3) : DVD CD, DVD, D-TV/CBL, VCR1, VCR2/DVR, PHONO
(4) : D-TV/CBL CD, D-TV/CBL, VCR1, VCR2/DVR, PHONO
4D COAXIAL IN (5) : CD CD, MD/CD-R, DVD, D-TV/CBL, VCR1, VCR2/DVR, V-AUX, PHONO
5. INPUT MODE DVD : AUTO AUTO/LAST
6. DOLBY DIGITAL SET
6A LFE LEVEL SPEAKER : 0dB –20dB — 0dB
6B DYNAMIC RANGE SPEAKER : MAX MAX/STD/MIN
7. DTS SET
LFE LEVEL SPEAKER : 0dB –10dB — +10dB
8. SPEAKER DELAY TIME CENTER : 0ms 0ms — 5ms (1ms step)
9. DISPLAY SET BLUE BACK : AUTO AUTO/OFF
OSD SHIFT : 0 –5 — +5
DIMMER : 0 –4 — 0
10. MEMORY GUARD OFF ON/OFF
7
■ INTERNAL VIEW
qwerty uio !0
!1 !2 !3 !4 !5 !8 !9 @0!6 !7
q POWER (1) P.C.B.
w MAIN (6) P.C.B.
e MAIN (5) P.C.B.
r POWER (4) P.C.B. (R, T only)
t MAIN (7) P.C.B. (B, G only)
y MAIN (3) P.C.B.
u OPERATION (3) P.C.B.
i OPERATION (5) P.C.B.
o AM/FM TUNER
!0 DSP P.C.B.
!1 POWER (5) P.C.B. (U, C, A, B, G, L only)
!2 OPERATION (9) P.C.B.
!3 POWER (2) P.C.B.
!4 POWER (6) P.C.B. (R, T only)
!5 MAIN (4) P.C.B.
!6 MAIN (1) P.C.B.
!7 POWER (3) P.C.B.
!8 MAIN (2) P.C.B.
!9 INPUT (1) P.C.B.
@0 INPUT (2) P.C.B.
